L8: Coordinates

In progress

Excuse our mess while we finish this page! You can contribute here.

Overview

In this lesson, students will learn how computers use coordinates to position objects on a screen.

Students will explore:

the X and Y coordinate system
how displays are organized into rows and columns
how to place and remove pixels
how to move objects around the screen

Using buttons, students will control the position of a pixel on CincoBit or move an image on PixoBit.

Students will also combine previous concepts such as:

variables
conditions
events
loops

to keep objects inside the visible display area.

Learning Goals

Students will:

understand X and Y coordinates
identify where (0,0) is located
use plot and unplot
store coordinates in variables
move objects using buttons
display coordinate values
use conditions to keep objects on screen

Time Required

45–60 minutes

Materials

CincoBit or PixoBit
USB cable
Computer or Chromebook
MicroBlocks

Teacher Notes

This lesson introduces one of the most important ideas in graphics and game programming:

Everything on a screen has a position.

Students should understand:

screens are organized using coordinates
X controls left and right movement
Y controls up and down movement
variables can store positions
programs can move objects dynamically

This lesson creates the foundation for:

animation
games
graphics
object movement

Understanding Coordinates

Displays use a coordinate system to identify locations.

Coordinates use:

X values
Y values

Usually referred to as (x, y)

The X axis controls:

left and right position

Direction	X Value
Left	Smaller X
Right	Larger X

The Y axis controls:

up and down position

Direction	Y Value
Up	Smaller Y
Down	Larger Y

Where is Origin?

On computer systems, the coordinate:

(0,0)

is located at the:

top-left corner of the display

This is called:

the origin

While this is true on most systems, the LED Display library uses (1,1) for origin.

CincoBit Coordinate Grid

CincoBit uses a 5×5 LED matrix.

Coordinates range from:

Axis	Values
X	1 to 5
Y	1 to 5

Example positions:

Coordinate	Location
(1,1)	Top-left
(5,1)	Top-right
(1,5)	Bottom-left
(5,5)	Bottom-right

Plot and Unplot

Students will use:

Block	Purpose
`plot`	Turn on a pixel
`unplot`	Turn off a pixel

lights a pixel at a specific coordinate.

Step 1 - A Pixel Show

The random block will be used to show a vertical line of pixels. We will randomly plot and unplot pixels in that specific line.

The generated vertical random line lives at a set x position. Random will be used on the y position.

We used 3 for x. This starts the pixel near the center.

Step 2 - Move the Show

Use button events to change the X coordinate.

Example:

Button	Action
Button A	Move left
Button B	Move right

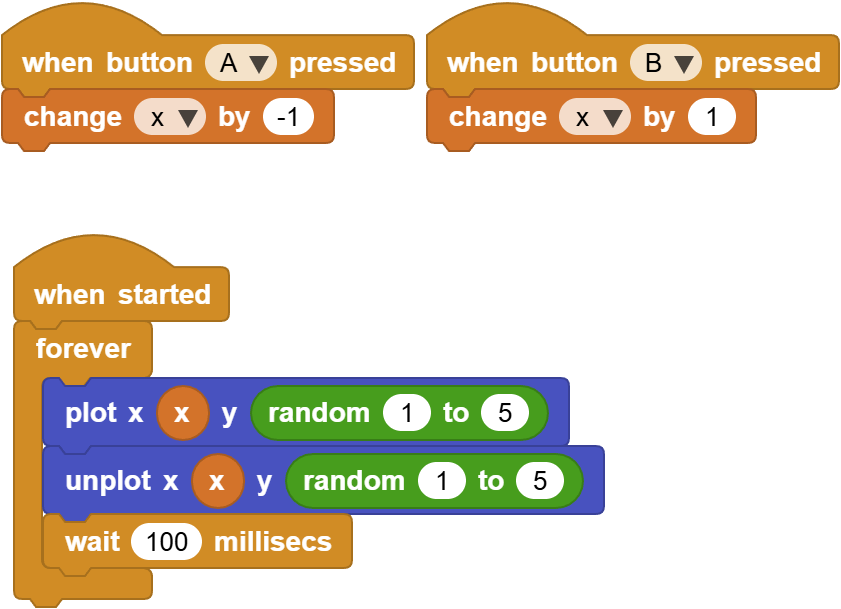

We used 3 as a fixed 'x' position. We will now use a variable instead. This variable will decrease when A is pressed and increase when B is pressed.

Since new variables start with their value set to 0 and the screen first pixel is at 1, running this program will not show anything on the screen. Press B to move the line one spot to the right.

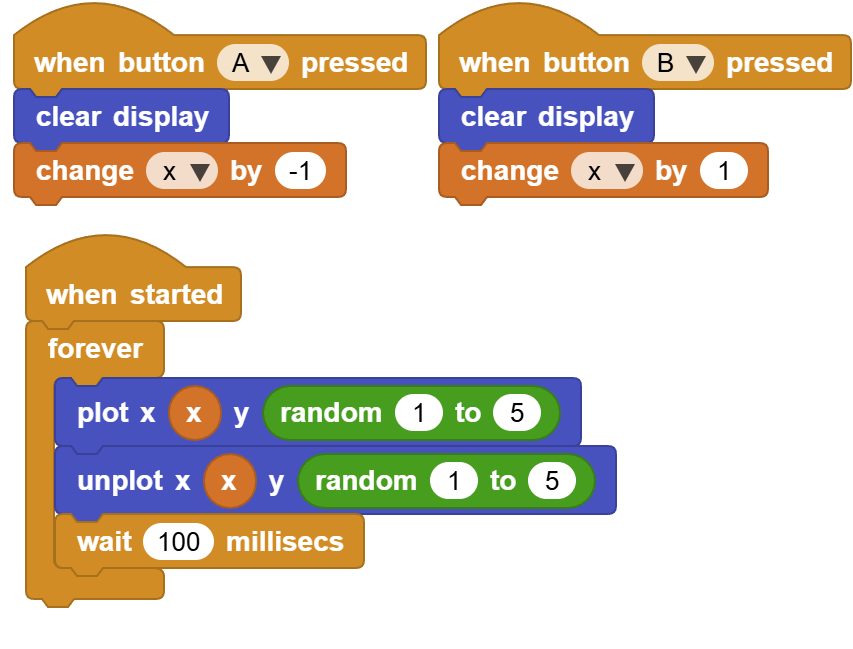

You will also notice that the new line drawing did not clear the previous line. This might be a desired behavior to do full screen of random art. But, if you need the screen cleared when a button is pressed then that can be accomplished easily.

Step 3 - Keep the Pixel On Screen

What happens if:

X becomes negative?
X becomes larger than the screen width?

The object can move off the display.

Programs often use conditions to keep objects visible. Use if statements to check boundaries.

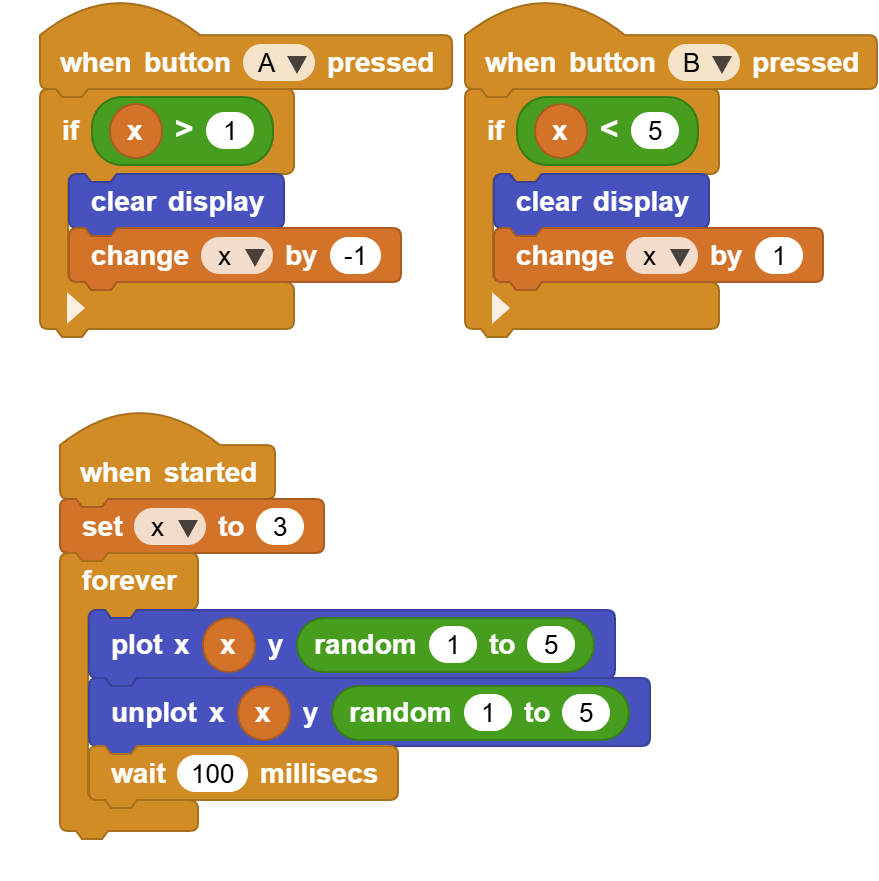

We will set the x to 3 from the start, in when started event. This will take care of the initial position. Then the buttons events will only increase/decrease x if x is not going to be less than 1 or more than 5.

This keeps the pixel inside the display.

Understanding Movement

Changing coordinates changes object position.

Change	Result
Increase X	Move right
Decrease X	Move left
Increase Y	Move down
Decrease Y	Move up

This is how:

games
animations
robots
user interfaces

control movement.

Try It

Can you:

fly pixels up instead of random
create diagonal movement
move faster
bounce a pixel

Real-World Connection

Coordinate systems are used everywhere in computing.

Examples:

video games
phone screens
maps
robots
GPS systems
graphic design software

Computers constantly track positions using X and Y values.

Troubleshooting

Pixel disappears
- check coordinate limits
- verify plot/unplot order
Movement leaves trails
- unplot old position before moving
Pixel moves off screen
- verify boundary conditions

Vocabulary

Word	Meaning
Coordinate	Position on a screen
X Axis	Left and right position
Y Axis	Up and down position
Origin	Starting coordinate
Plot	Turn on a pixel
Unplot	Turn off a pixel

Wrap-Up Question

Why do games and graphical programs need coordinates?
