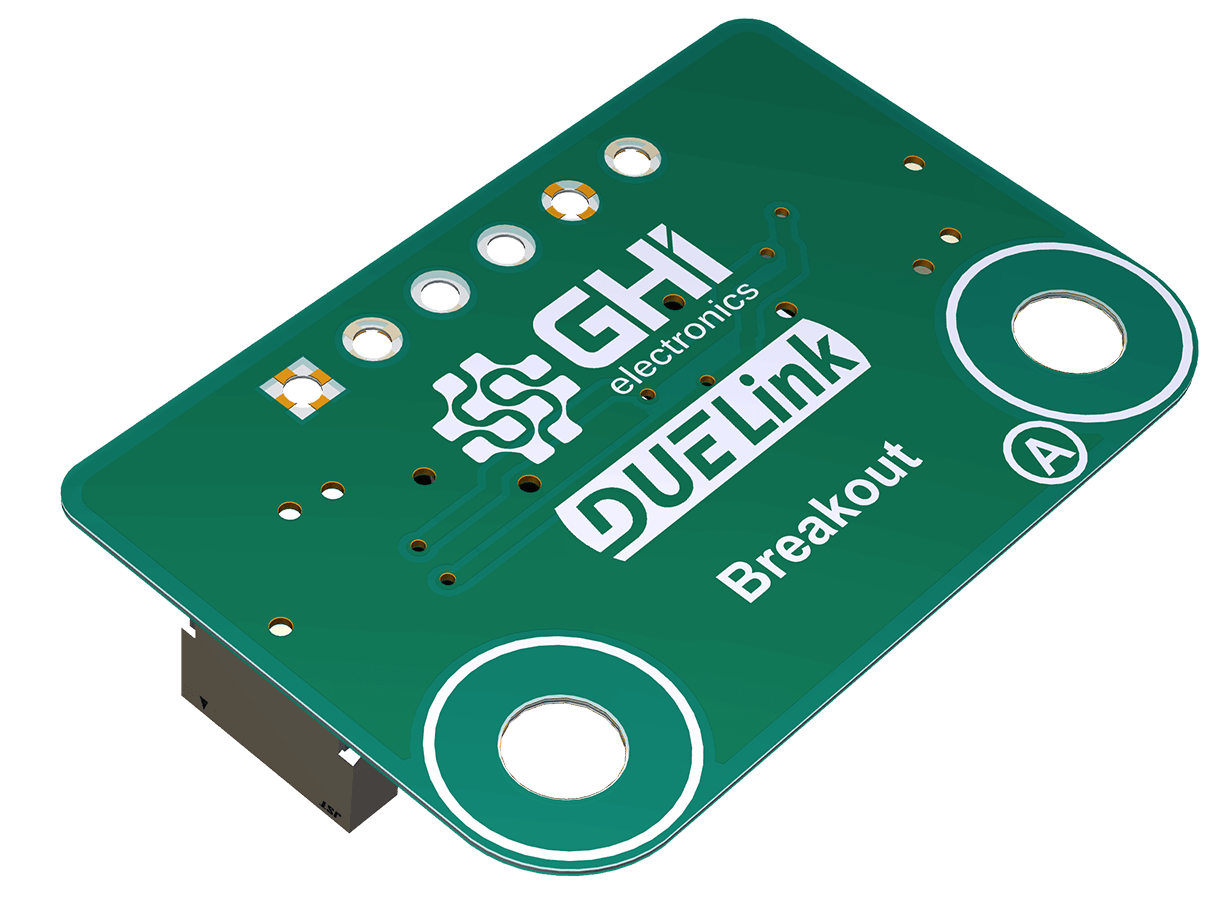

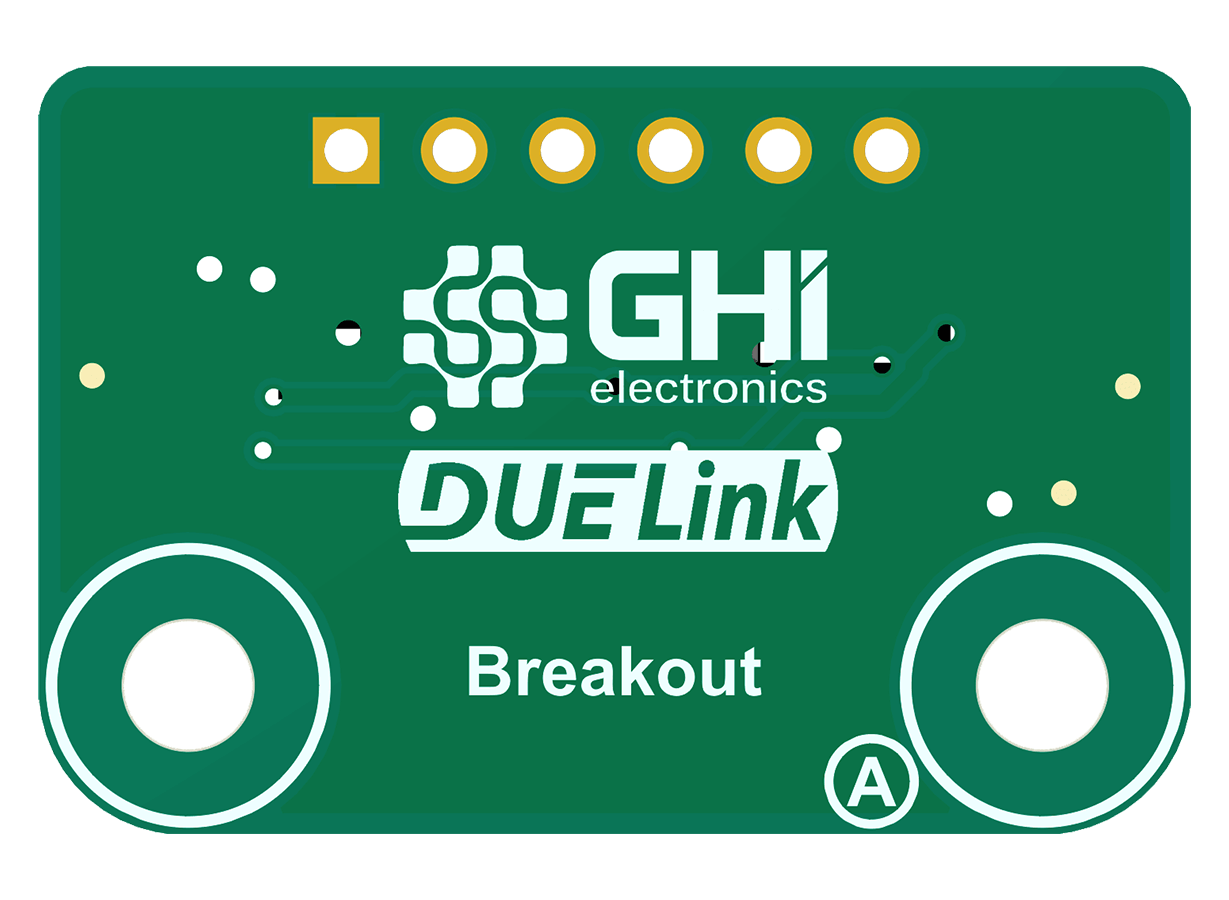

Breakout
 |  |  |  |
Signals Breakout and Cable Extender
- Overview

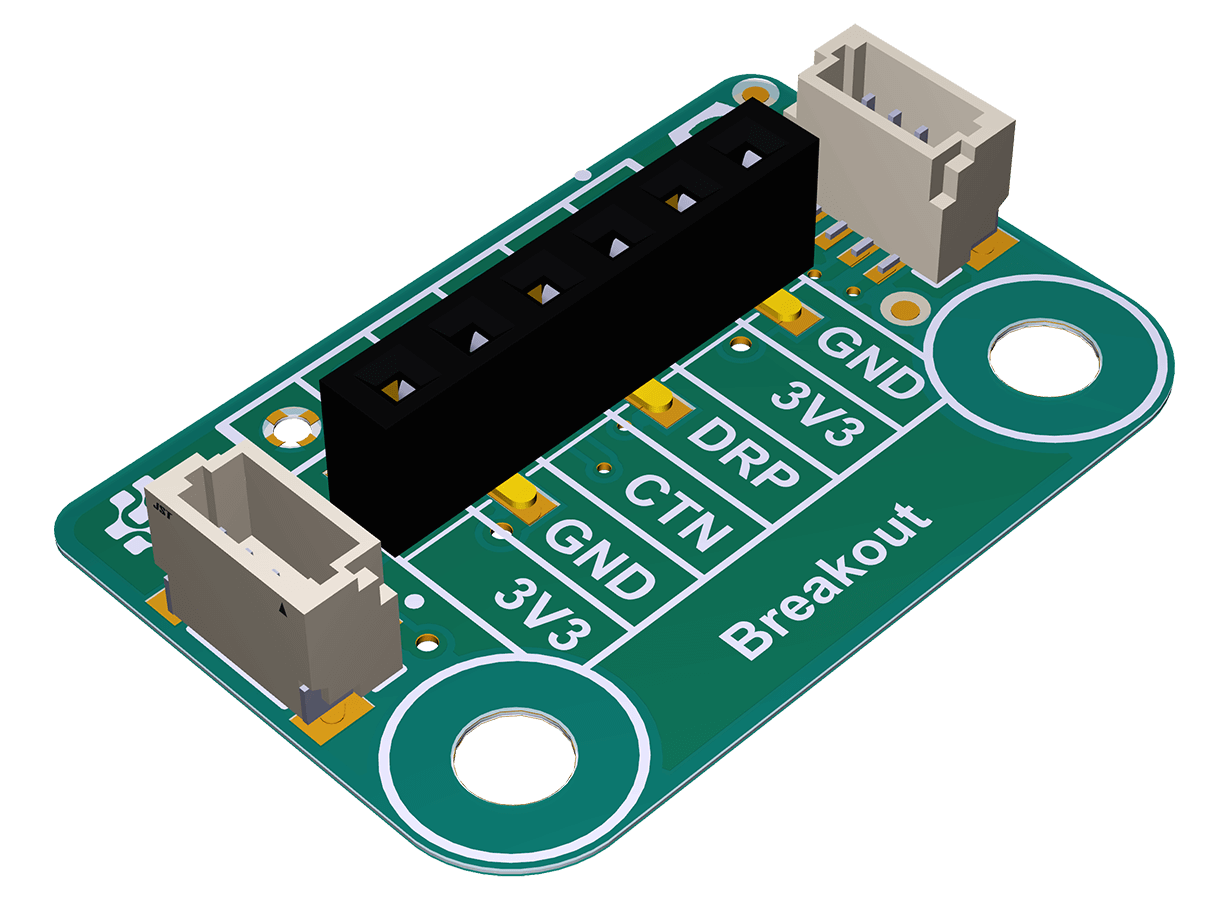

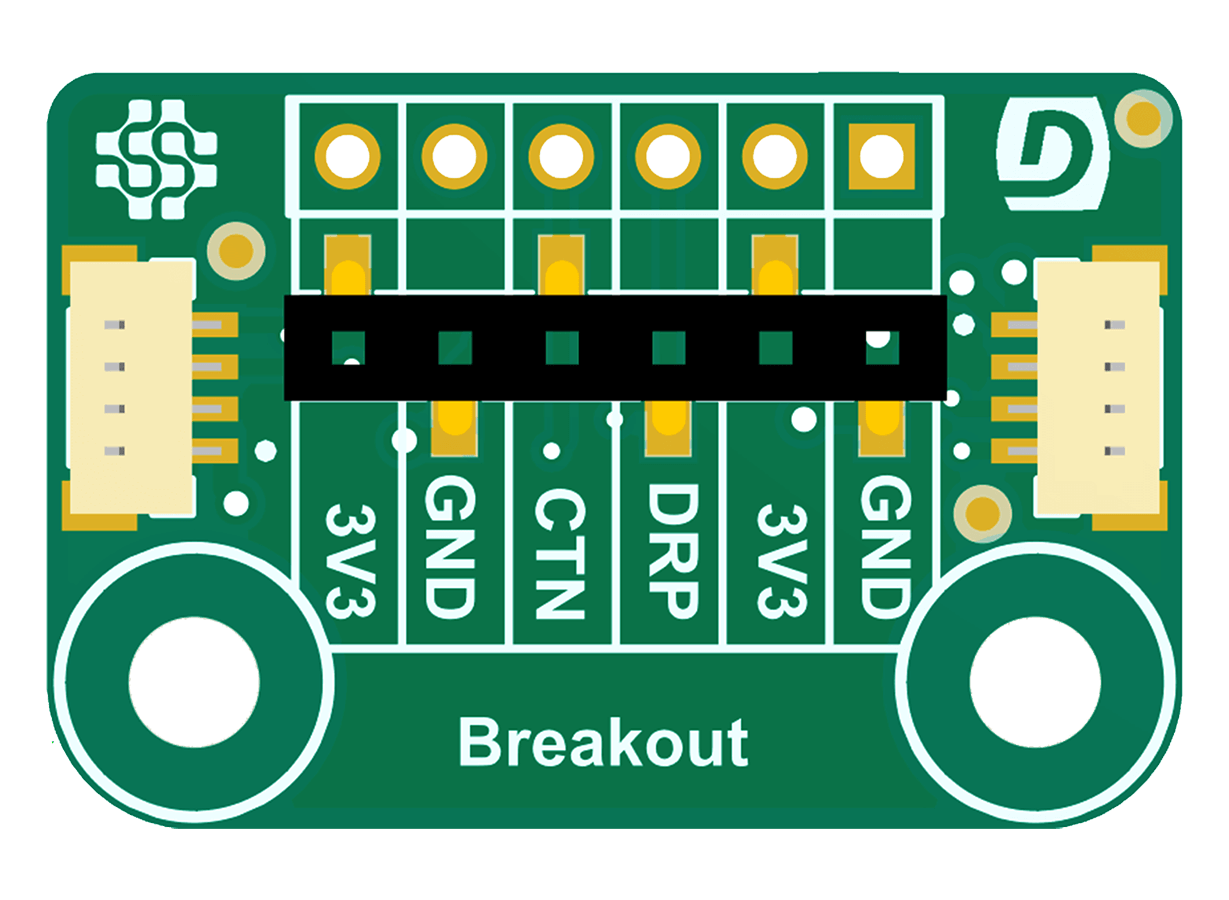

This module can be used as a DUELink cable extender. It also exposes all DUELink cable signals on a female header. This is useful to wire a Supported Hardware that does not have a JST connector.
The DRP and CTN signals are a mix of UART, I2C and USB Interfaces.
Here is a UART example:
Here is an I2C example:
Key features • Access to DUELink Pins | Resources |
Ordering Info
| Product | Part Number | Price | DUELink Breakout | GDL-AXBREAKOUT-A | $00.00 |
|---|
