Barcode L1D2D
 |  |  |  |
1D & 2D Barcode Reader
- Overview
- Drivers
- Samples

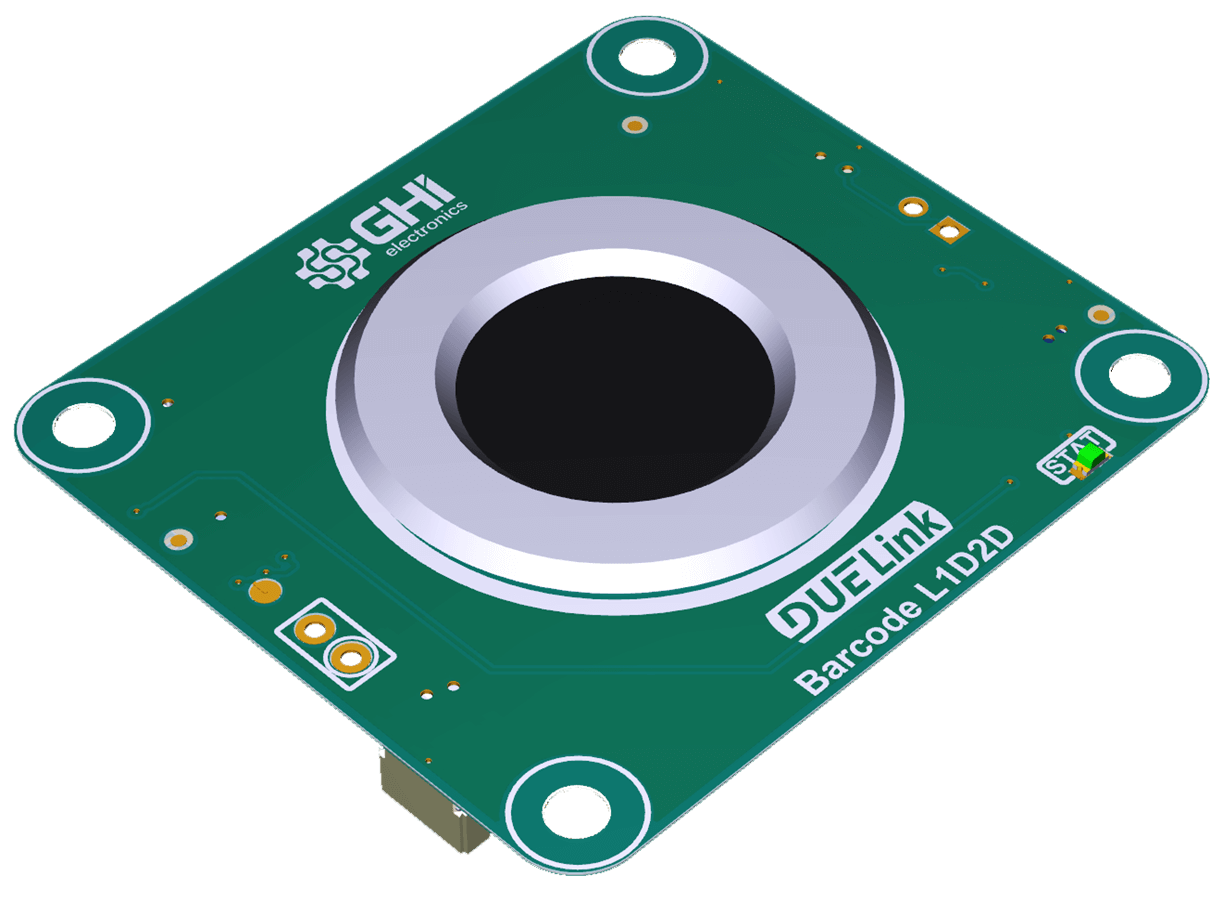

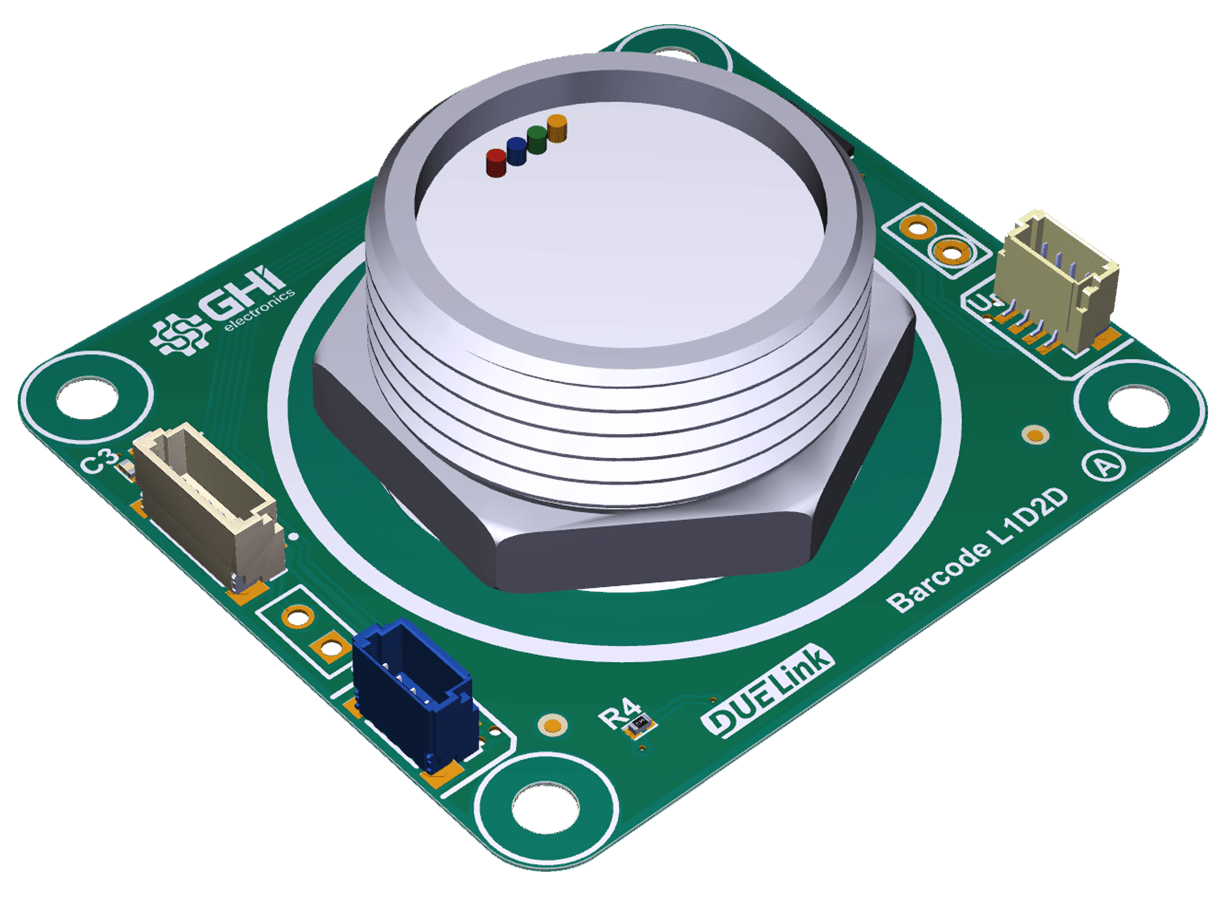

This camera can capture and decode different barcodes.
- 1D Formats: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar,Code 128, Code93, ITF-14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS)
- 2D Formats: QR Code, Data Matrix, PDF417
- Scanning angle: Roll: 360° Pitch: 65° Yaw: 65°
Key features • Barcode scanner | Resources |
See Drivers page for further details.
| Function | Description |
|---|---|
SetMode(m) | Sets the m mode to 1 Trigger 2 Continuous. |
Trigger() | Trigger the reading when in trigger mode. |
DVer() | This driver version. |
The Code!
Barcode L1D2D Driver
loading...
Samples assumes Drivers are installed.
- Script
Script Sample
loading...
Python Sample
loading...
JavaScript Sample
loading...
Coming soon!
Ordering Info
| Product | Part Number | Price | DUELink Barcode L1D2D Reader | GDL-VIBARCODEL1D2D-A | $00.00 |
|---|
