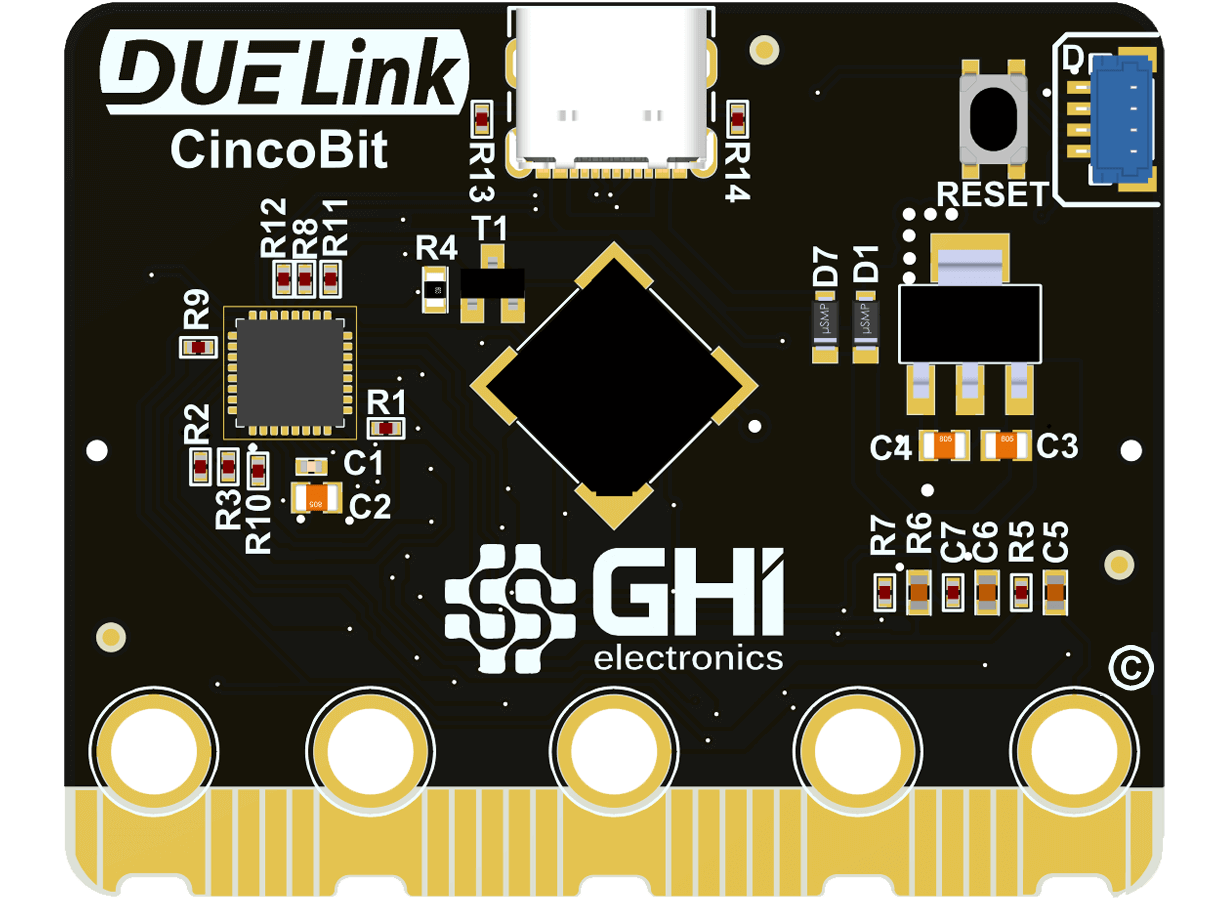

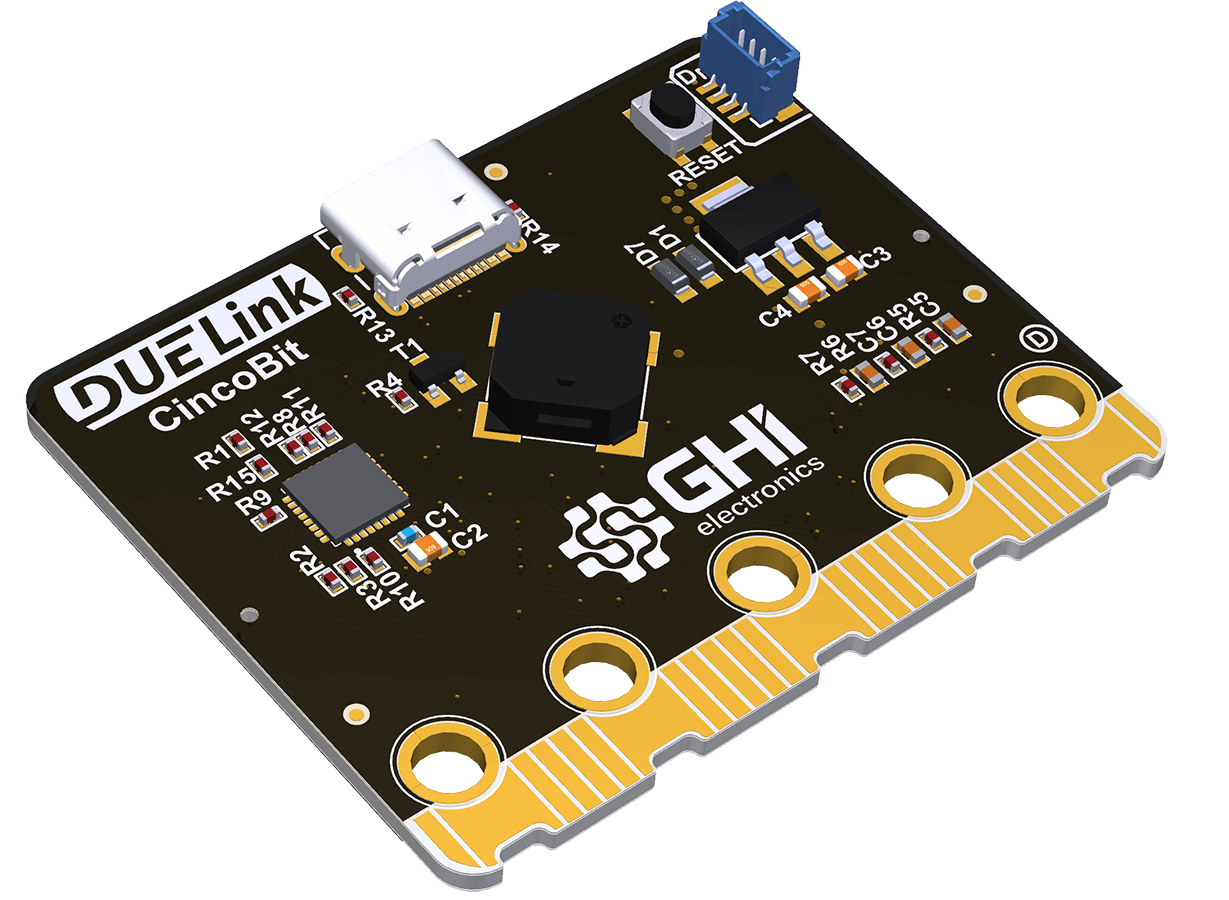

An ultra low-cost, micro:bit inspired, educational board.

Key features

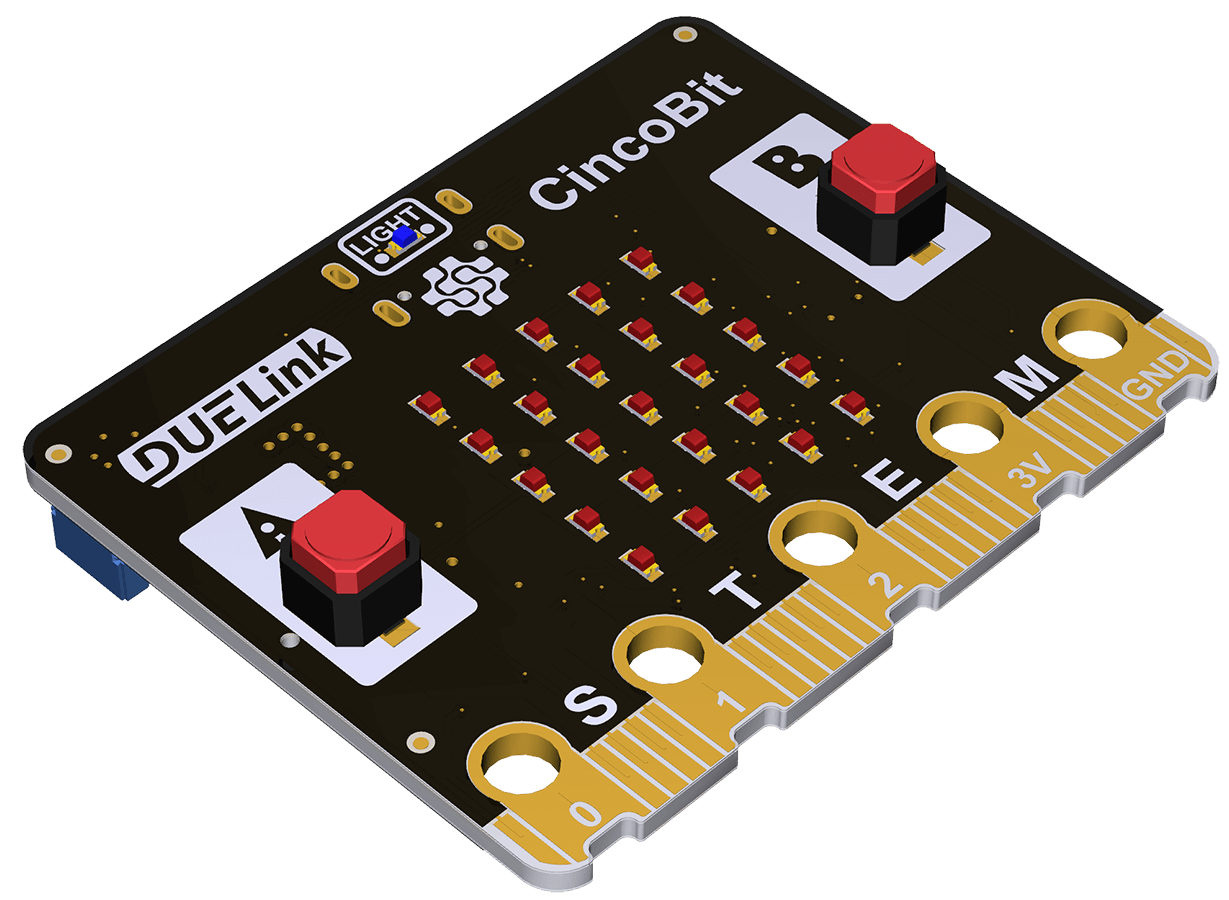

• 5x5 LED Matrix
• micro:bit inspired edge connector
• USB-C connector
• Buzzer
• Light Sensor
• 2x User Buttons

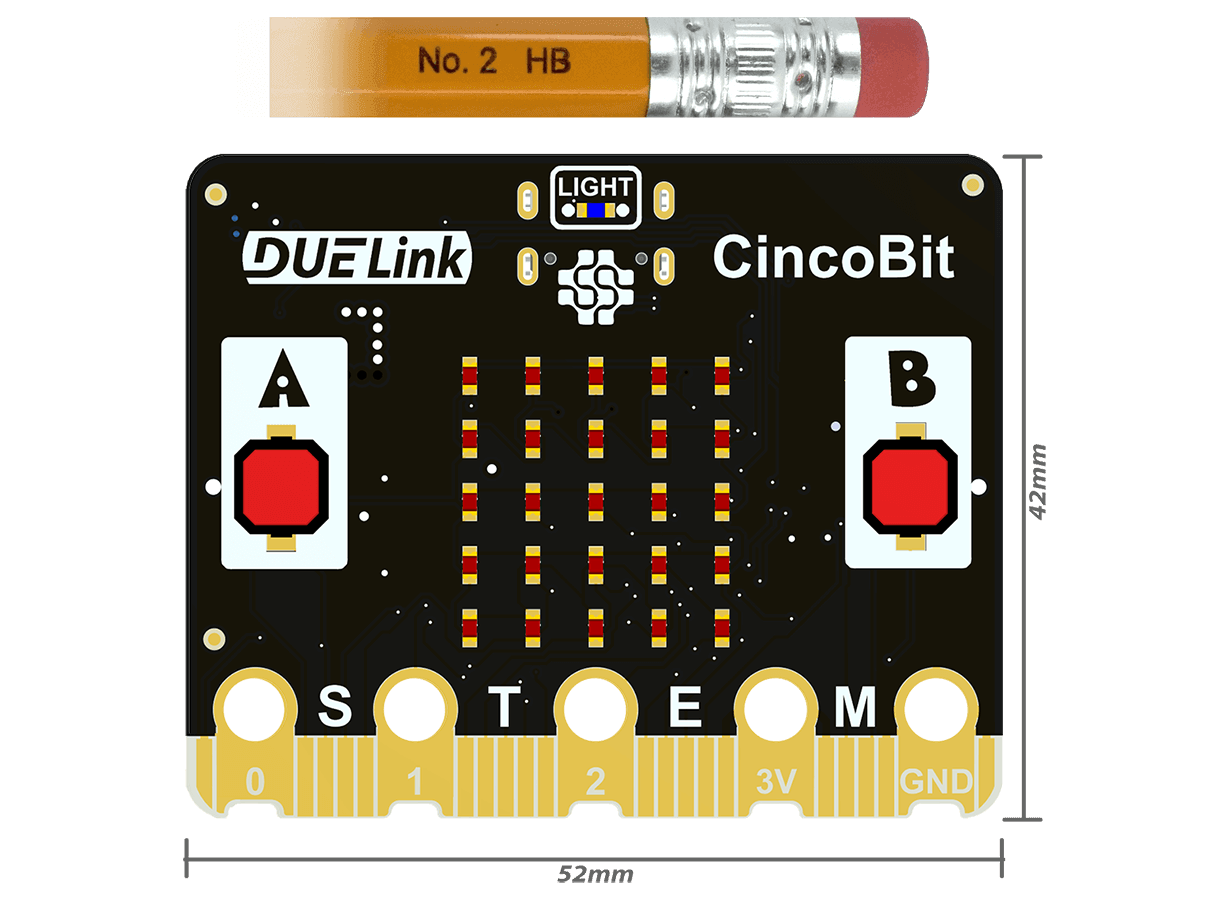

• 52x42mm Overall Dimension

Resources

📄Schematics
🔩3D STEP file

Function	Description
`Init()`	Initialize the display. Automatically called on power up.
`GetW()`	Get display width: 5
`GetH()`	Get display height: 5
`IsColor()`	Returns 0.
`BtnUpA()`	Returns 1 if button A was released.
`BtnDownA()`	Returns 1 if button A was pressed.
`BtnUpB()`	Returns 1 if button B was released.
`BtnDownB()`	Returns 1 if button B was pressed.
`PlayBeep(f,d)`	Play beep. f: frequency, d: duration
`Light()`	Returns volt read.
`DVer()`	This driver version.

tip

See Graphics for available drawing functions.

The Code!

Modules ship with this script preloaded. Use Console to reload or modify the drivers. Additionally, some languages, such as Python, include DUELink.Engine.Record() for recording scripts directly from the host.

CincoBit Driver
loading...

See code on GitHub

Script
Python
JavaScript

Use Console to modify the default driver by adding this sample.

Script Sample
loading...

See code on GitHub

Python Sample
loading...

See code on GitHub

JavaScript Sample

loading...

See code on GitHub

Ordering Info

Product	Part Number	Price
CincoBit	GDL-MCCINCOBIT-D	$00.00
