DuePi
 |  |  |  |
DUELink Hat for Raspberry Pi & Pi Zero
- Overview
- Drivers
- Samples

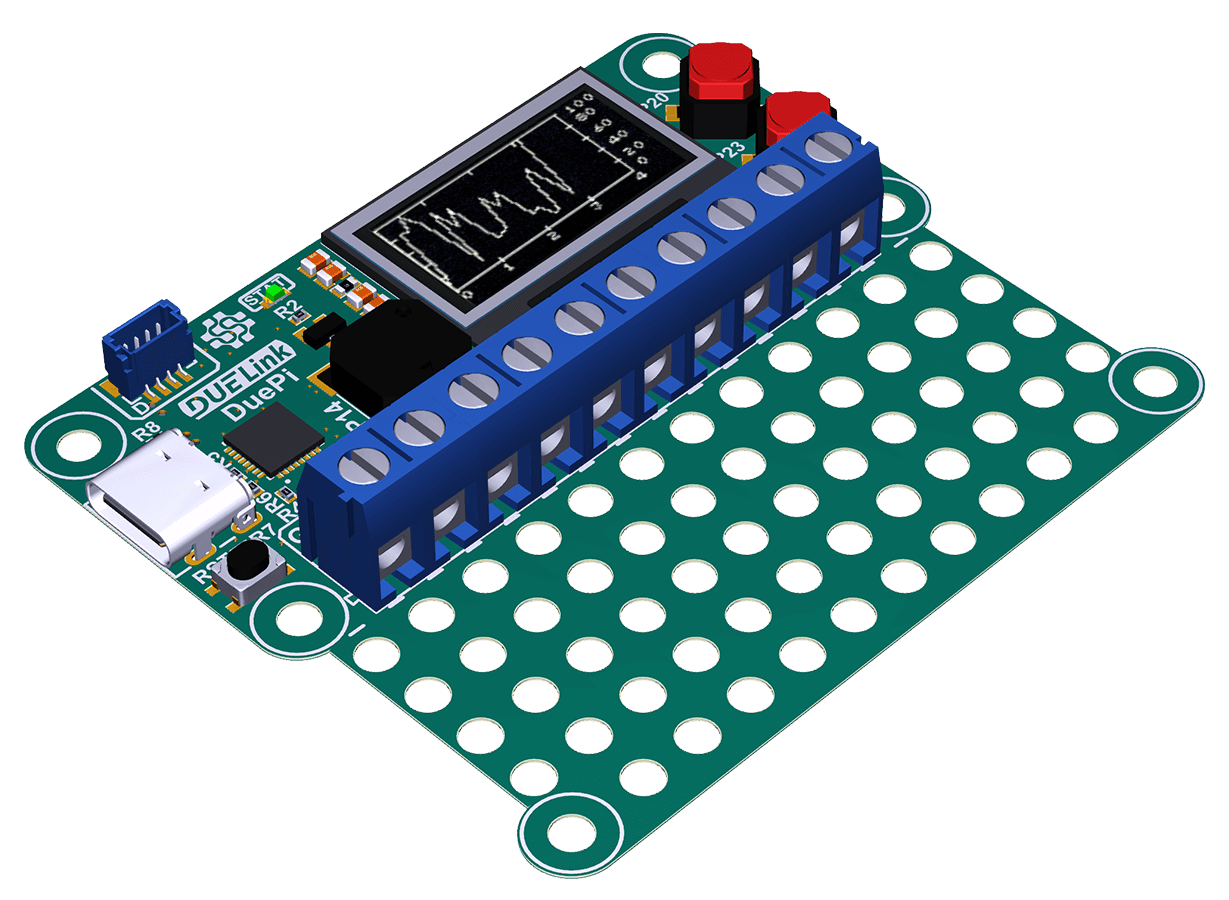

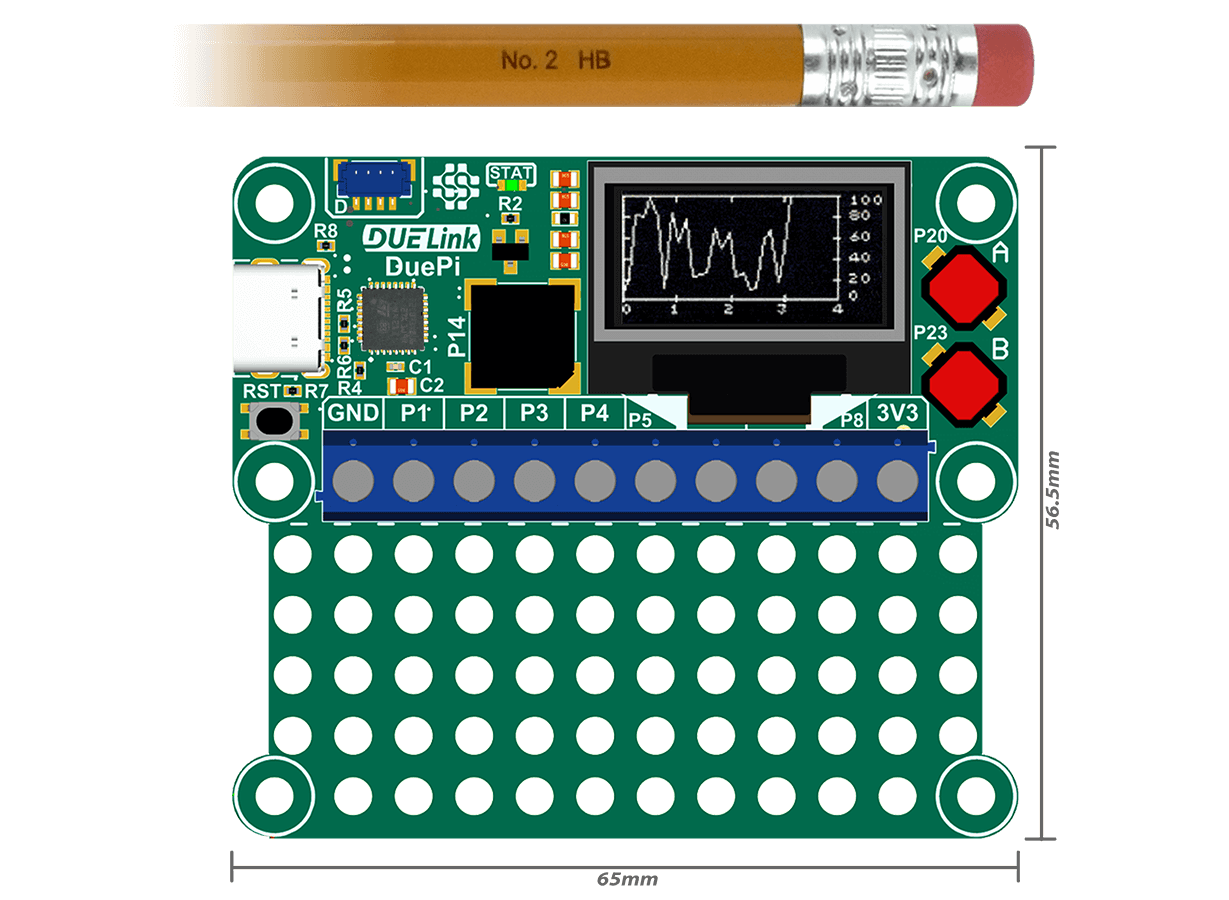

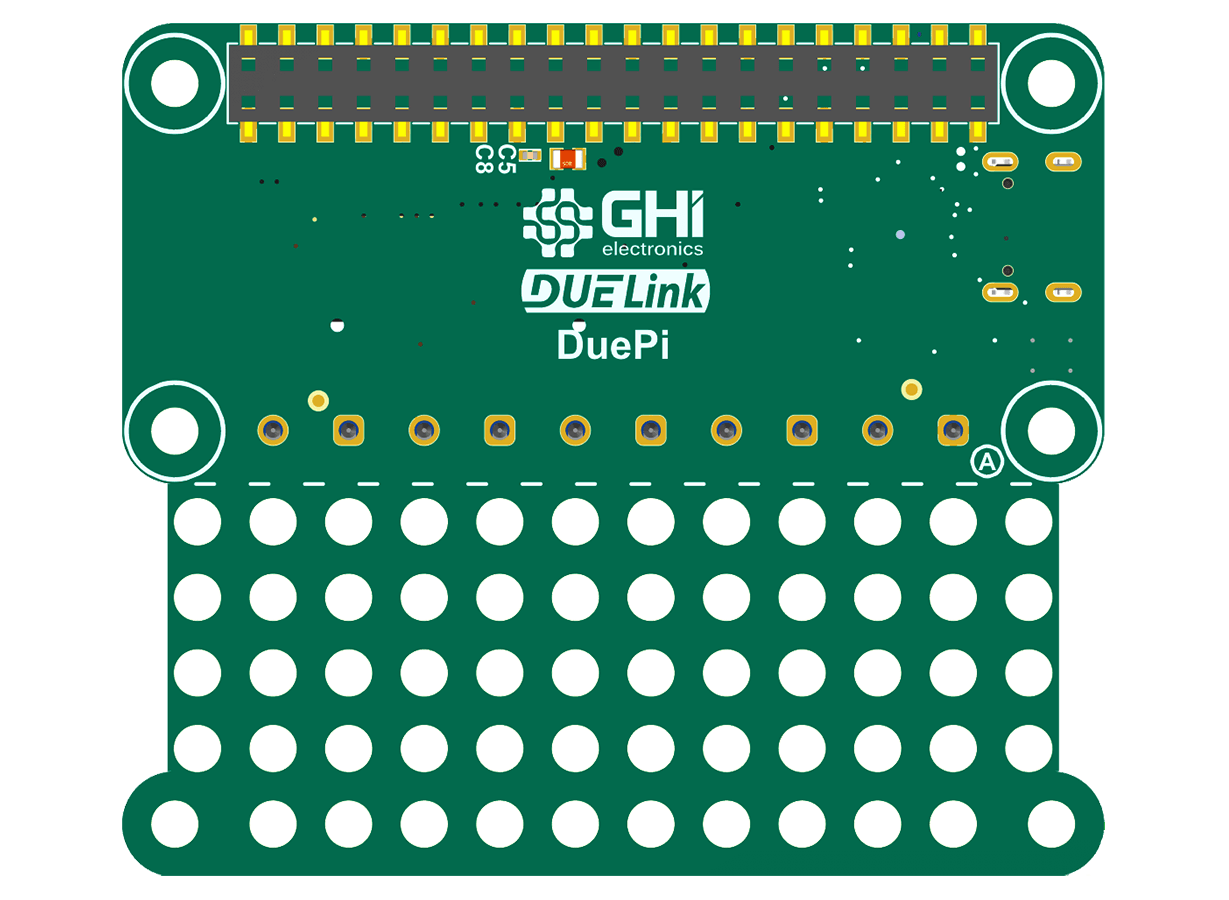

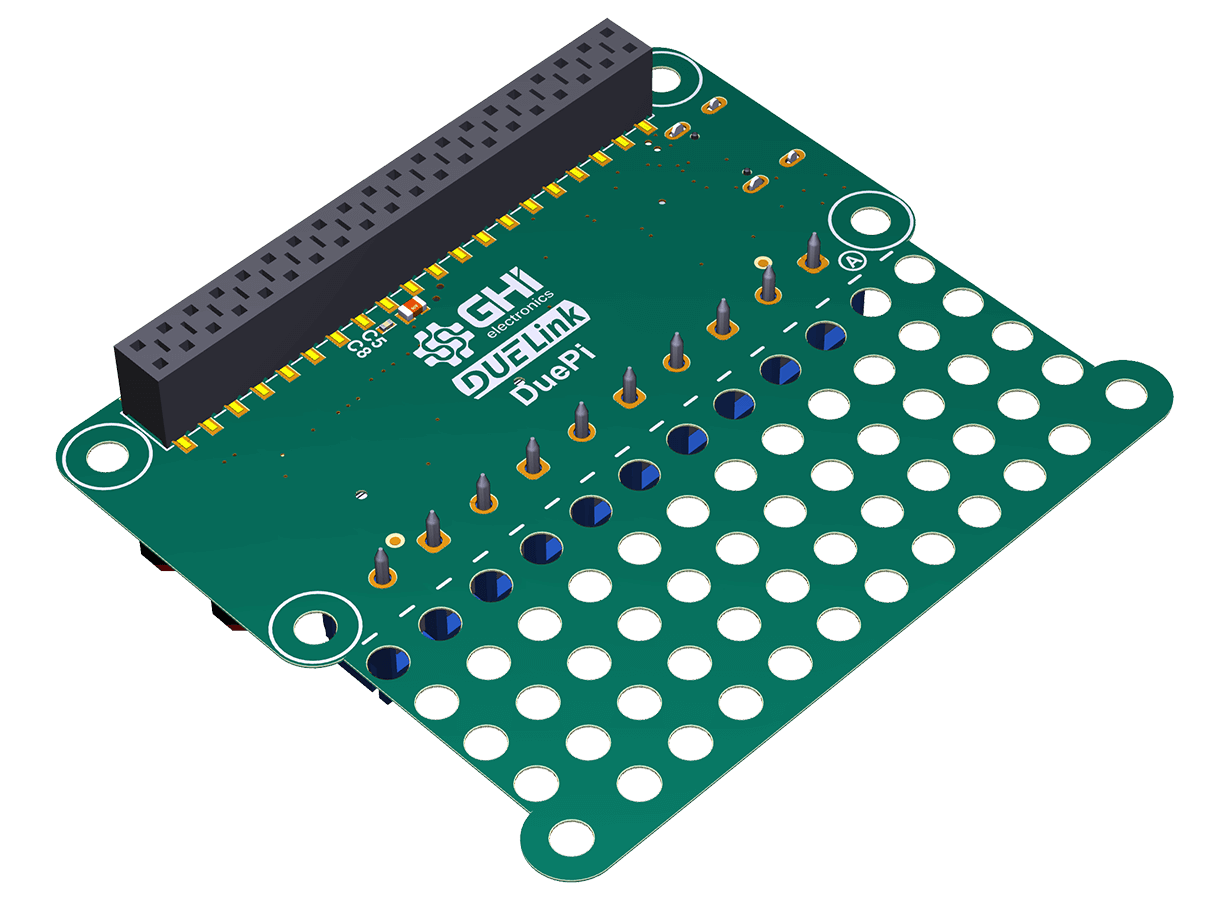

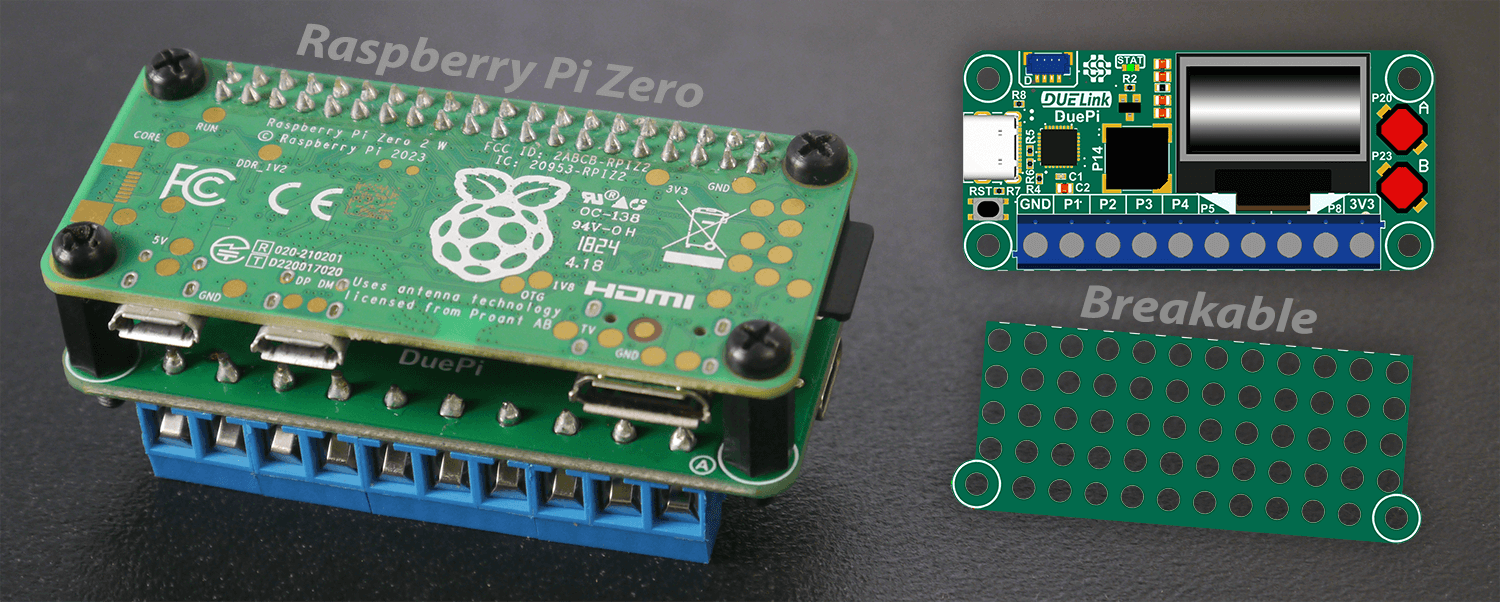

DuePi is the perfect accessory for all RPI (Raspberry Pi) models, including RPI Zero. The outer mounting holes are standard mounting holes for RPI. The bottom half of the board is a 5mm-pitched holes for mounting DUELink modules. This bottom side is breakable to make the board smaller to make it the right size for RPI Zero.
The board includes several onboard peripherals, including buttons, buzzer, and a graphical display. The display is controlled using the DUELink native Graphics support. Simple commands are used to control the display instead of using Linux.
The onboard 800mA regulator is used to feed power to the Downlink connector, keeping any loads away from the RPI's 3.3V source.
The USB connector is conveniently there to help with loading/updating the DUELink processor's firmware/drivers. It should not be used when DuePi is used with a Raspberry Pi.
With the USB connector and the onboard power regulator, this accessory can be used as a Microcomputer with full functionality without the need of any RPI!
Key features • Attaches to Raspberry Pi or Pi Zero Header | Resources |
See Drivers page for further details.
| Function | Description |
|---|---|
GetW() | Get display width: 128. |
GetH() | Get display height: 64. |
IsColor() | Returns 0. |
BtnA() | Returns 1 if button A is pressed. |
BtnB() | Returns 1 if button B is pressed. |
Buzzer(f,d) | Plays buzzer to f frequency(50 to 15K) for d duration in milliseconds. |
DVer() | This driver version. |
The Code!
loading...
Samples assumes Drivers are installed.
- Script
loading...
loading...
loading...
Ordering Info
| Product | Part Number | Price | DUELink DuePi | GDL-AXDUEPI-B | $00.00 |
|---|
