DuePico
 |  |  |  |
DUELink Perfect Mate for Rasbperry Pi Pico
- Overview
- Drivers
- Samples

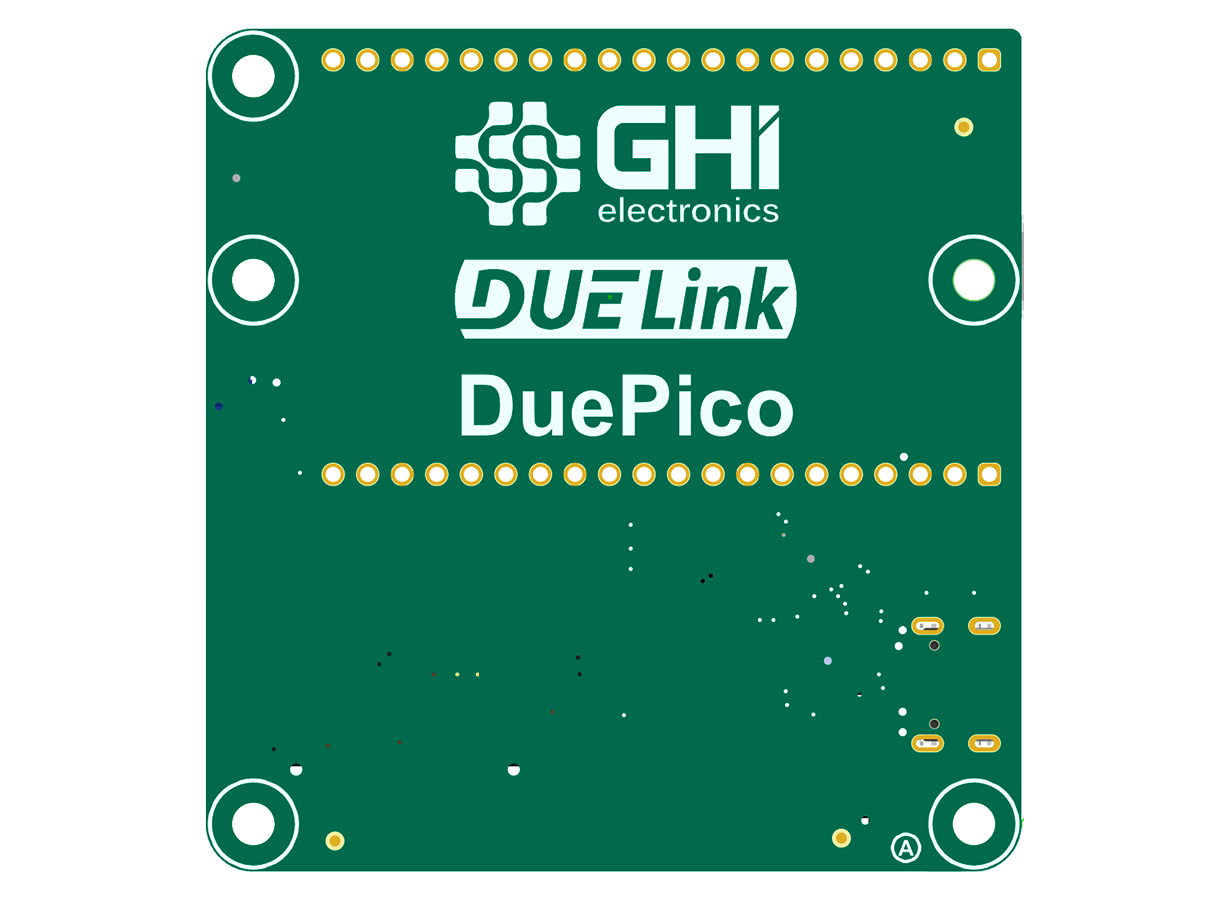

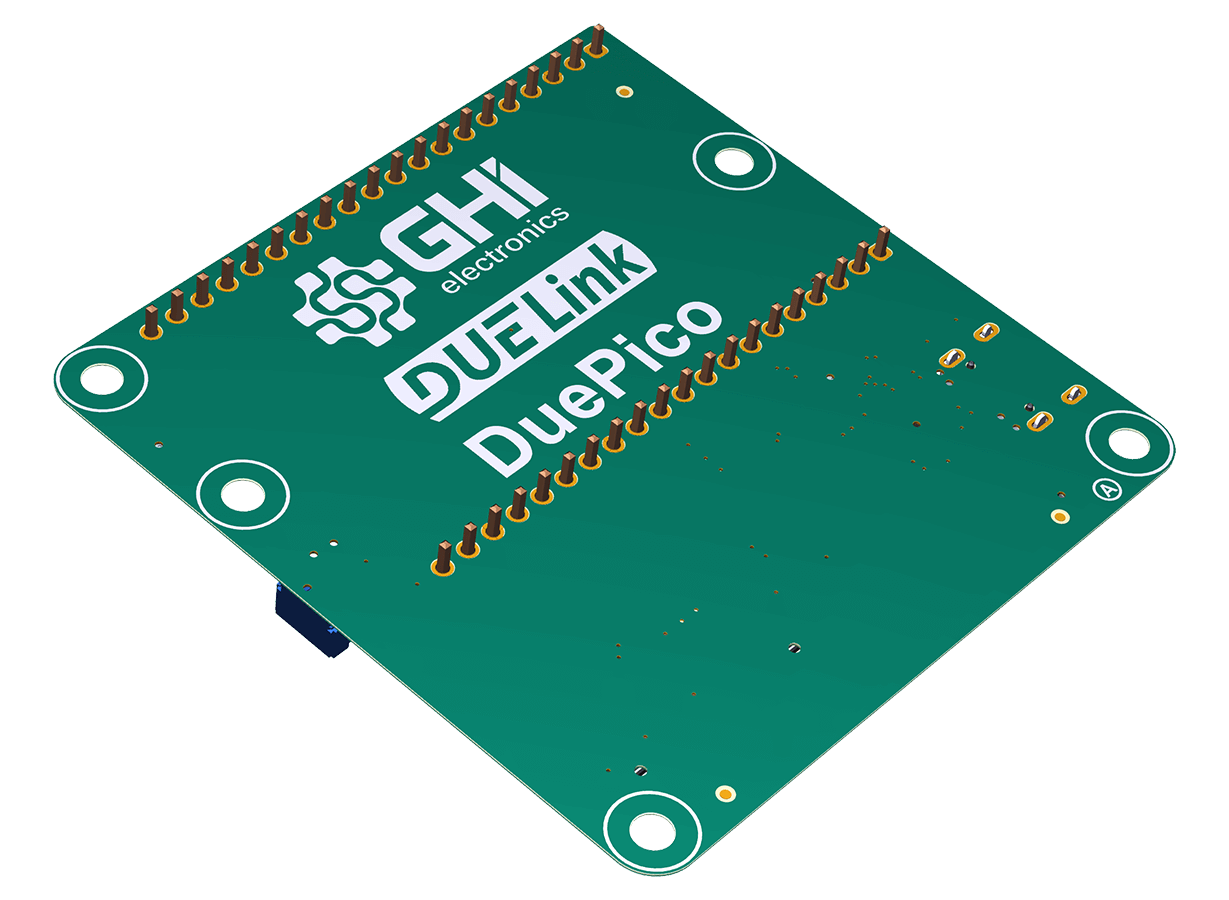

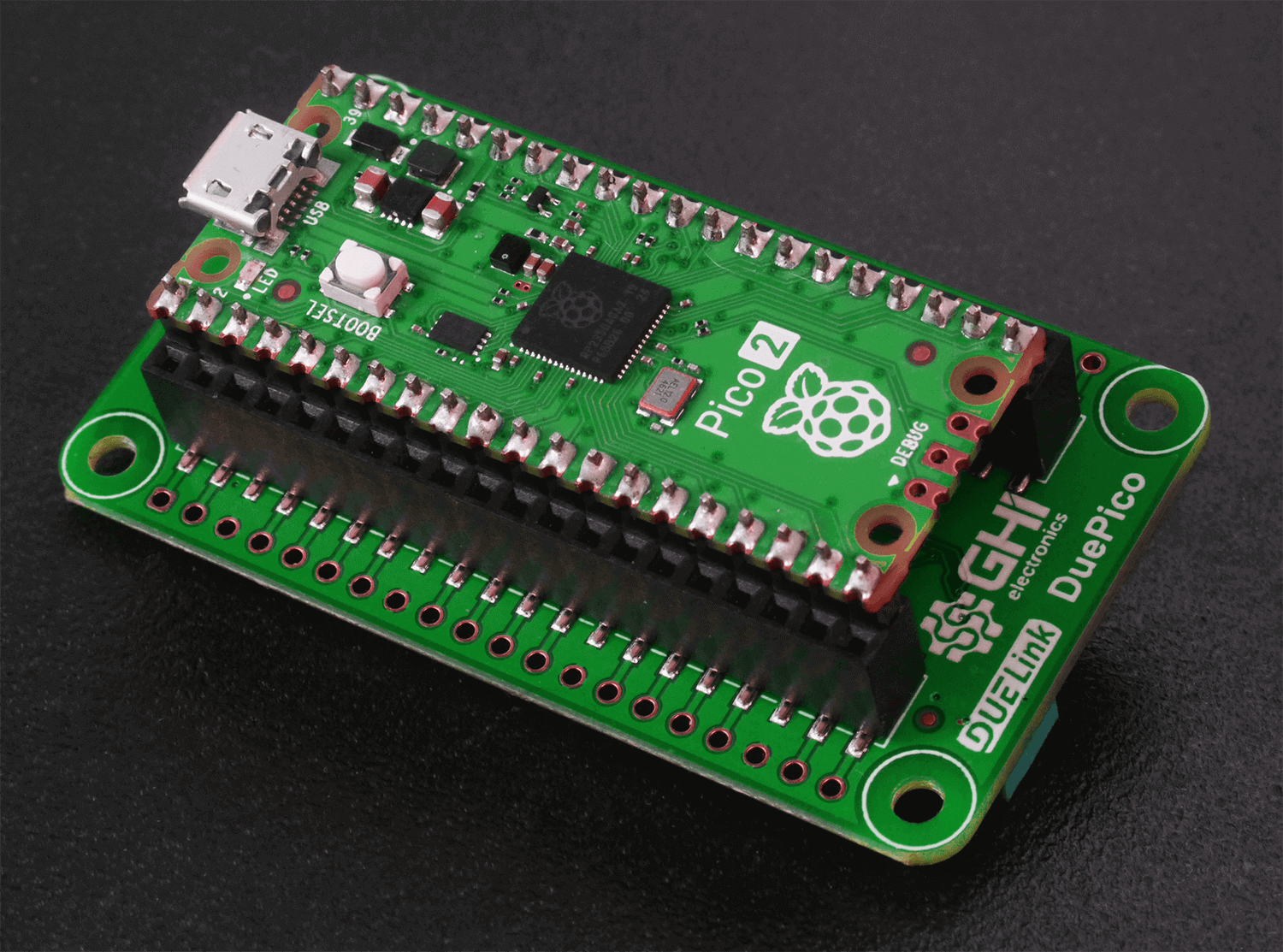

DuePico is the perfect accessory for RPI (Raspberry Pi) Pico. It gracefully takes the RPI Pico on its back side and offers all RPI Pico connections on female headers, allowing to connect it as you wish.

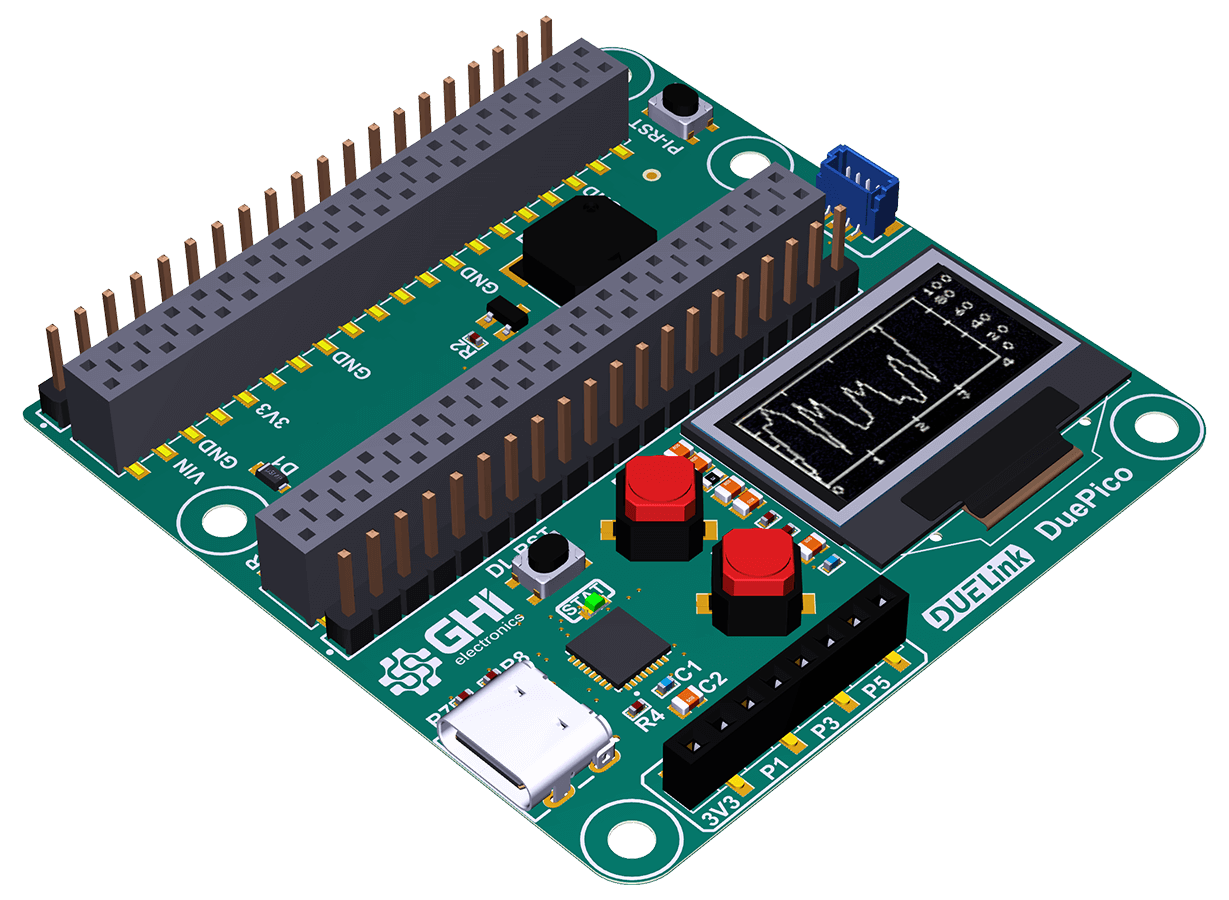

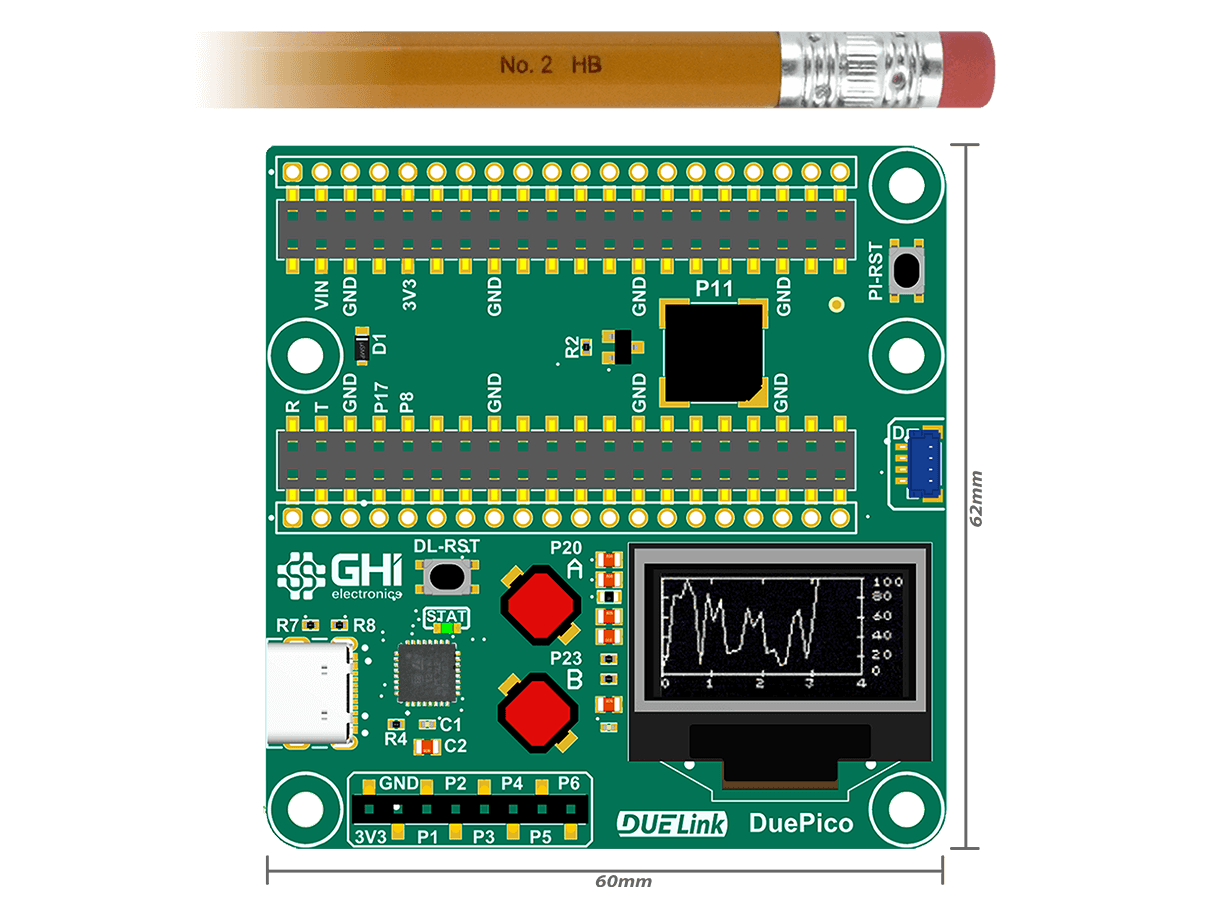

On the front side, the board includes several peripherals, including buttons, buzzer, and a graphical display. The display is controlled using the DUELink native Graphics support. Simple commands are used to control the display instead of replying on RPI Pico.
The onboard 800mA regulator is used to feed power to the Downlink connector, keeping any loads away from the RPI Pico's 3.3V source.
The USB connector is conveniently there to help with loading/updating the DUELink processor's firmware/drivers. It should not be used when DuePico is used with a RPI Pico.
With the USB connector and the onboard power regulator, this accessory can be used as a Microcomputer with full functionality without the need of any RPI!
Key features • Raspberry Pi Pico Headers | Resources |
See Drivers page for further details.
| Function | Description |
|---|---|
GetW() | Get display width: 128. |
GetH() | Get display height: 64. |
IsColor() | Returns 0. |
BtnA() | Returns 1 if button A is pressed. |
BtnB() | Returns 1 if button B is pressed. |
Buzzer(f,d) | Plays buzzer to f frequency(50 to 15K) for d duration in milliseconds. |
DVer() | This driver version. |
The Code!
DuePico Driver is included here but isn't necessary when using MicroPython DUElink libraries.
loading...
Samples assumes Drivers are installed.
- Script
Script sample is provided for testing. The DuePico is intended to be controlled with Raspberry Pi Pico.
loading...
loading...
loading...
Ordering Info
| Product | Part Number | Price | DUELink DuePico | GDL-AXDUEPICO-B | $00.00 |
|---|
