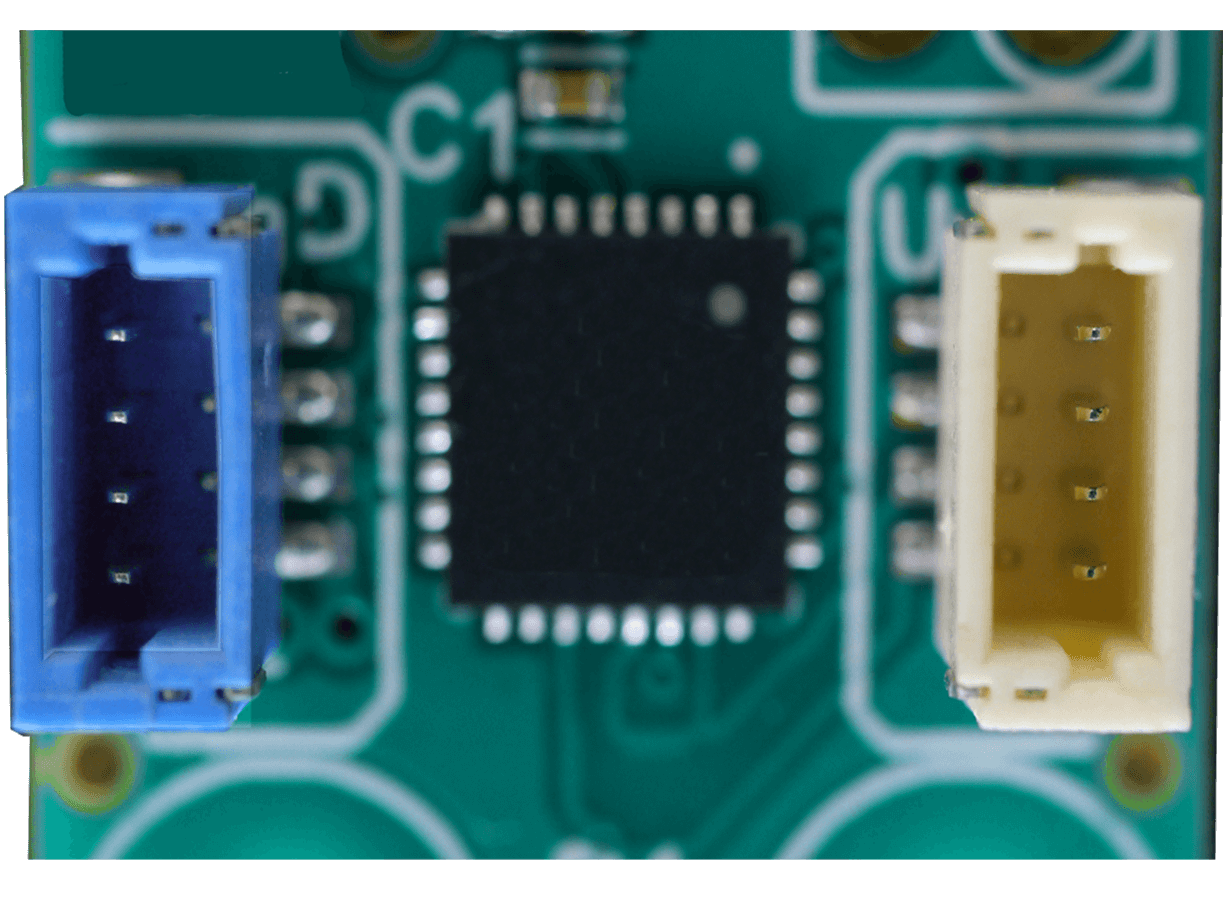

Back

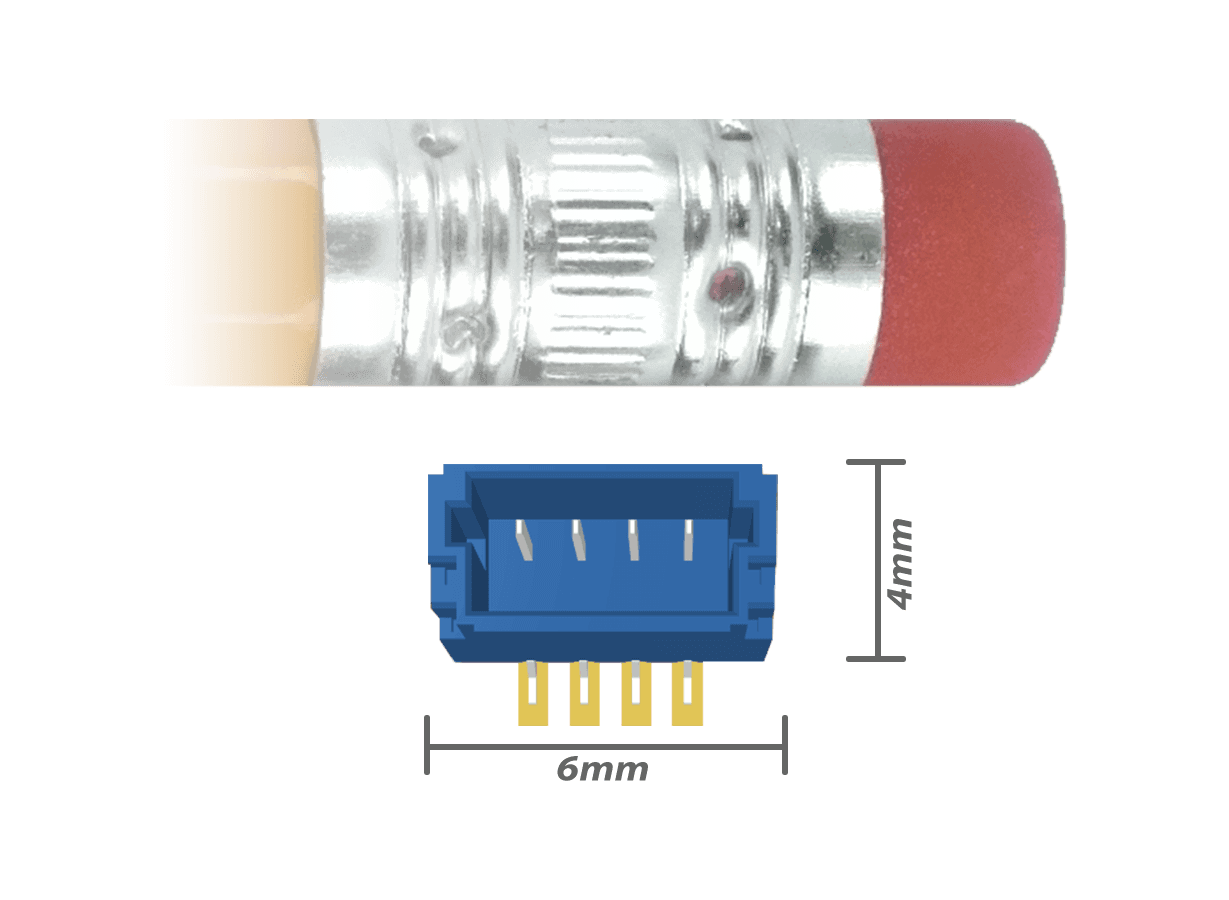

Size

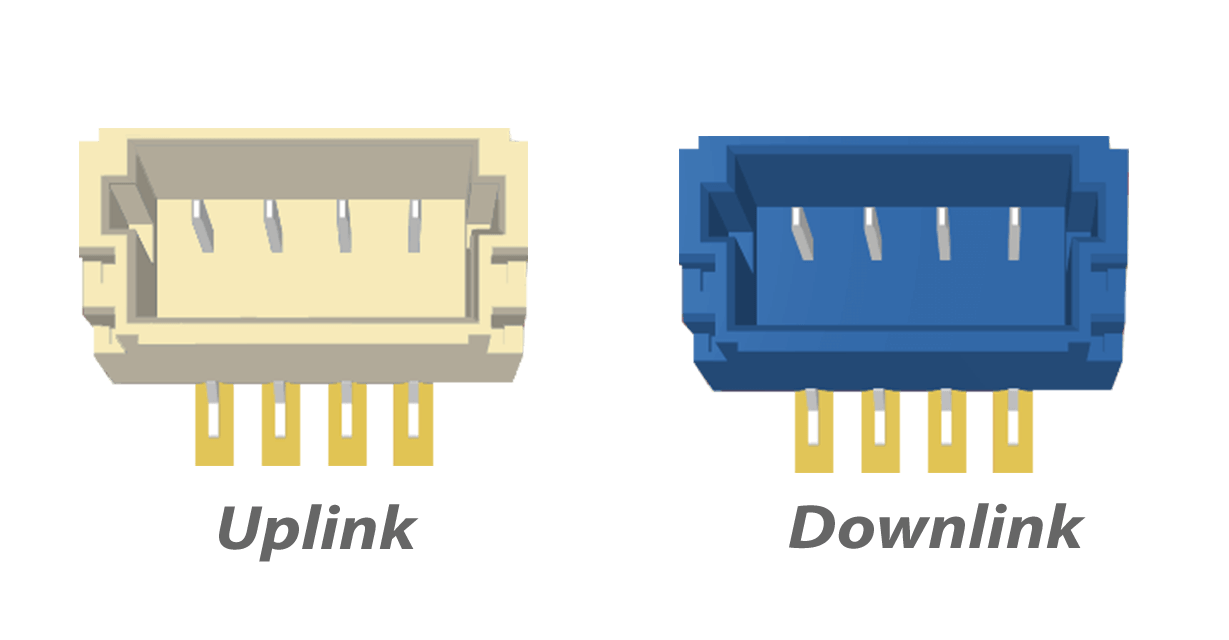

Front

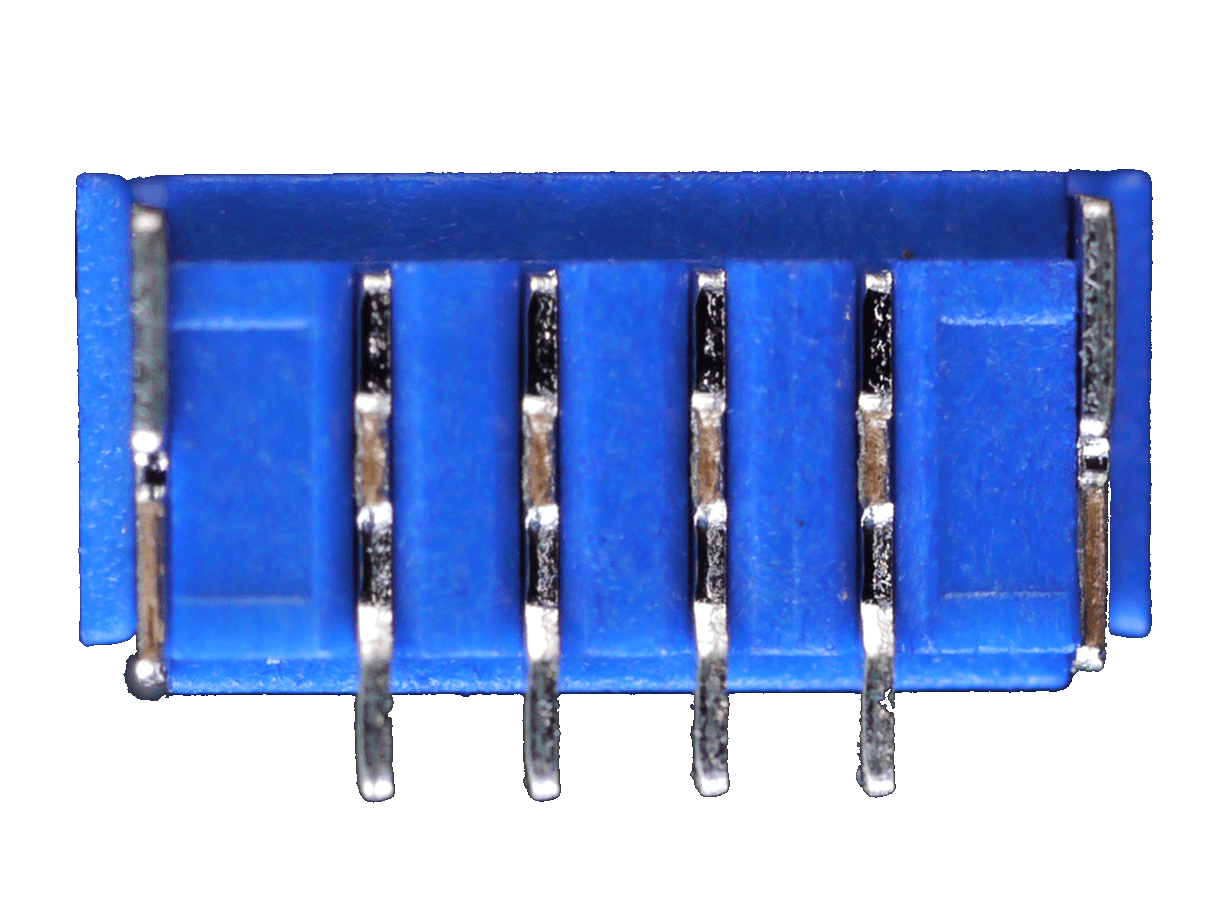

Back

DUELink JST Connectors

These standard connecters are here to help you in building your own DUELink modules.

note

These blue connectors will get discolored in a reflow oven. They are made for hand soldering. Contact us if you need a volume blue connectors that are suitable for reflow.

Key features

• 4pin 1mm JST connector
• Blue and White
• Surface Mount JST Connectors

Resources

🔩3D Uplink STEP file
🔩3D Downlink STEP file

Ordering Info

ProductPart NumberPrice
DUELink Downlink Connector (5pcs)GDL-AXJSTDOWNLINK-A$00.00
DUELink Uplink Connector (5pcs)GDL-AXJSTUPLINK-A$00.00
