Sticker

Development Board for Stick Modules

Overview

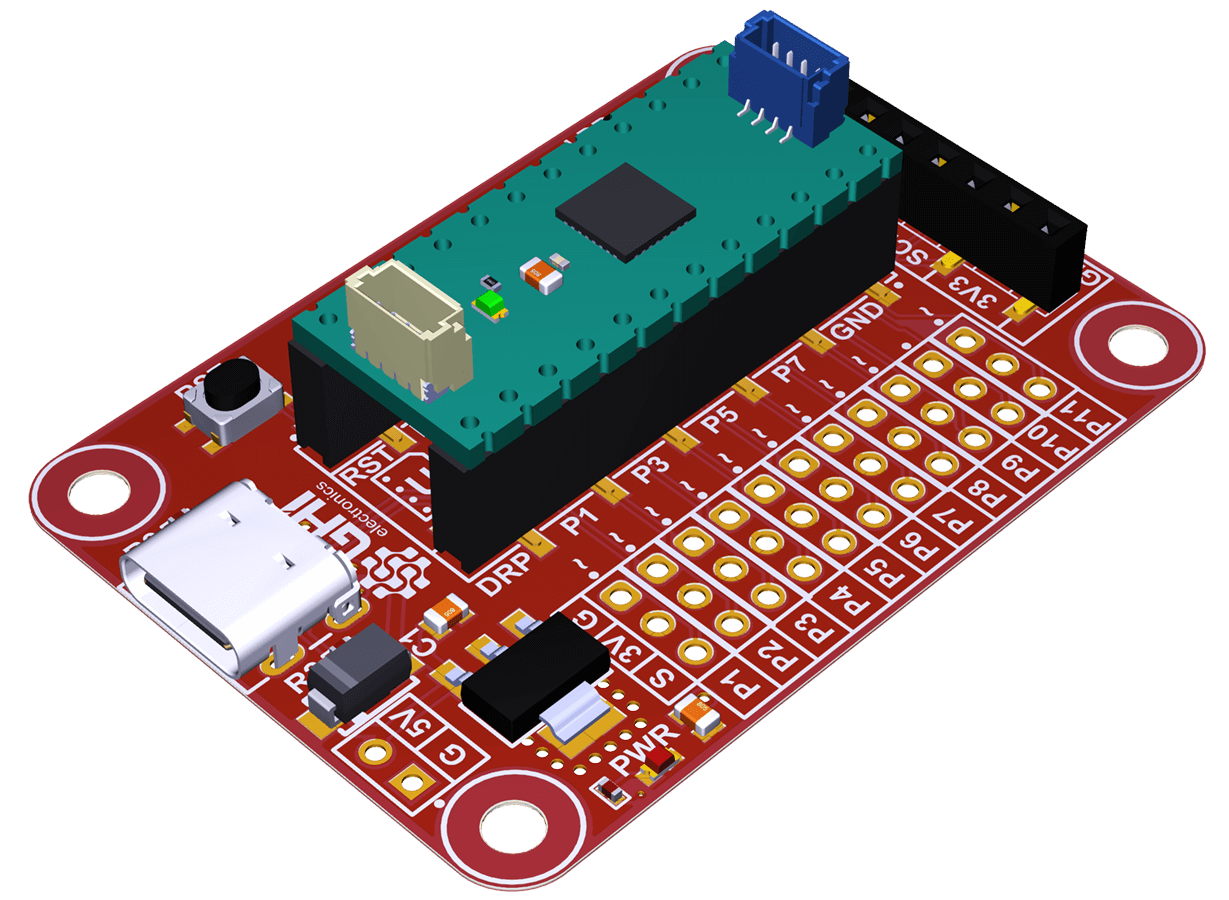

This is the ideal combo for Stick Microcomputer. It exposes all pins, some on male and some on female headers. The male headers add power and ground in a standard servo pinout". Signals and busses are clearly marked on the circuit. It also includes buttons and a regulator to complete the list of requirements to start making your own modules!

Key features

• Made for Stick Microcomputer
• RST/LDR buttons
• Pin headers

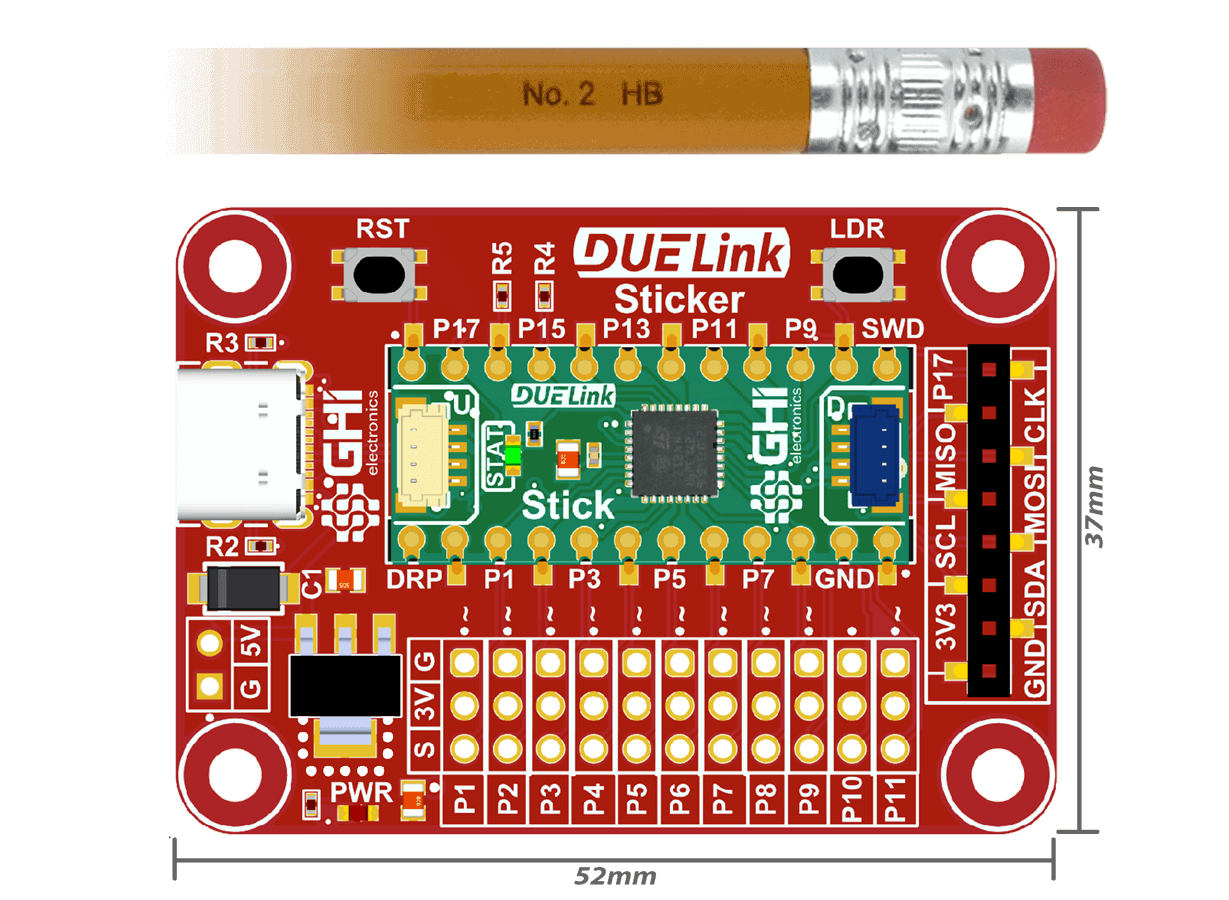

• 52x37mm overall dimension

Resources

📄Schematics
🔩3D STEP file

See Drivers page for further details.
