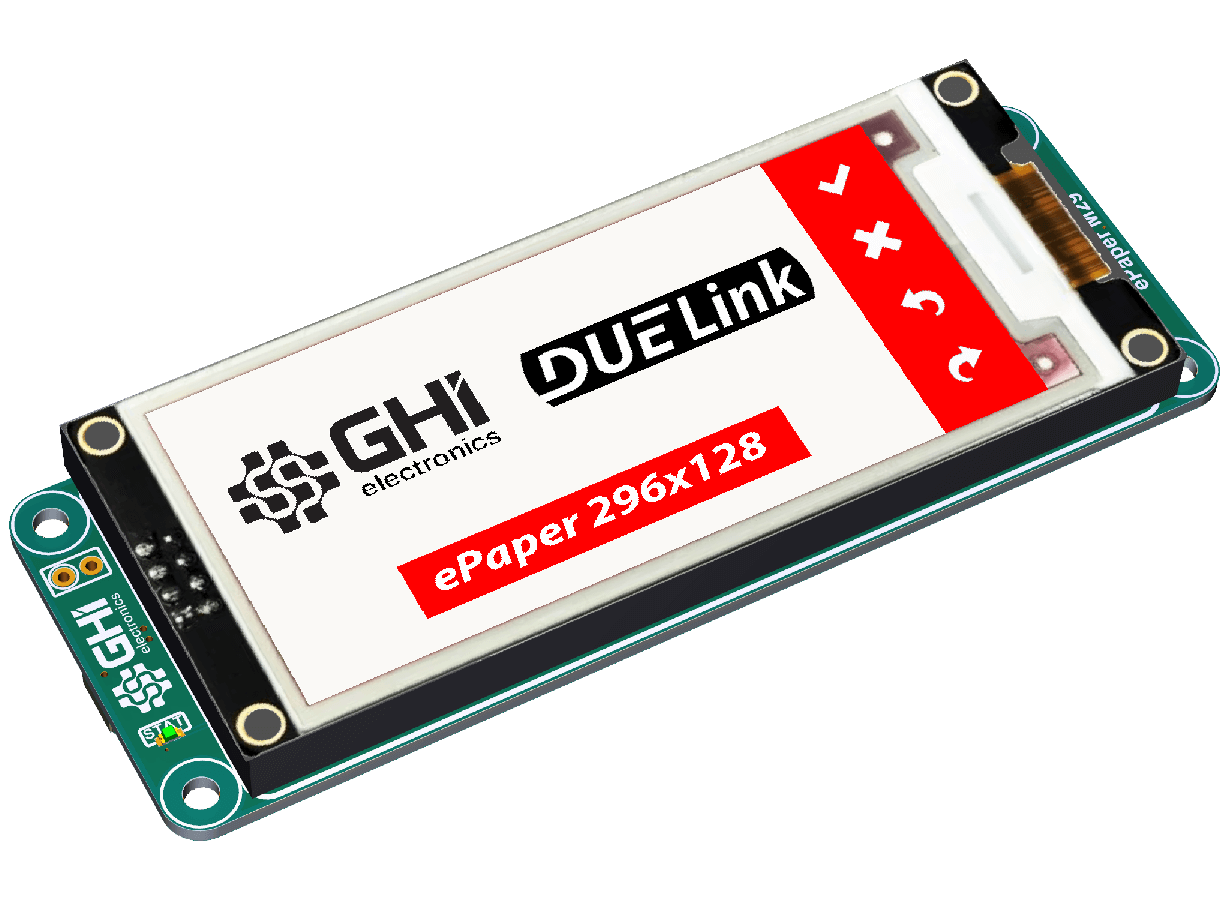

ePaper M29

2.9" e-Ink display

---

Overview

ePaper M29

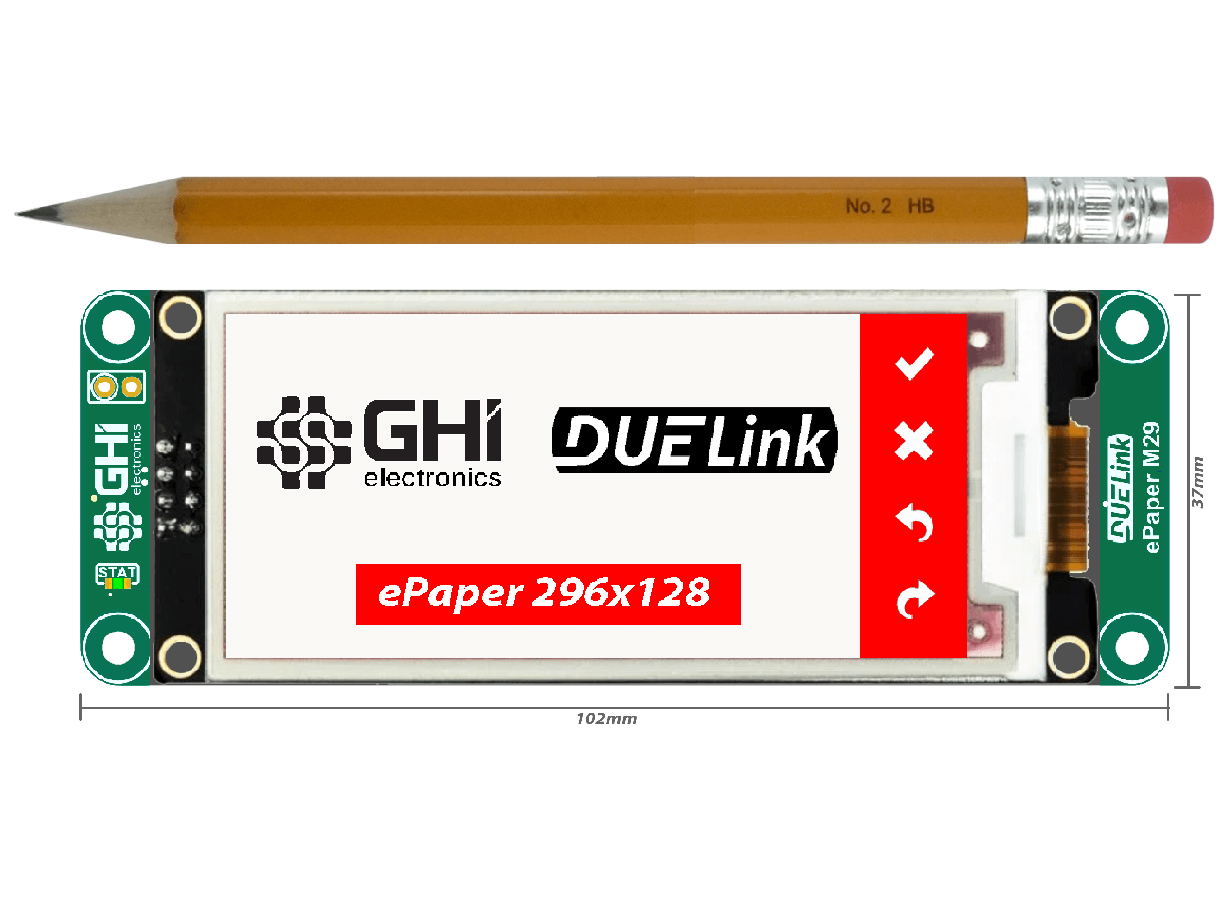

Key features • 2.9" e-Ink display • 296x128 resolution • Red/White/Black Color • 102x37mm Overall Dimension

Resources 📄Schematics 🔩3D STEP file

Drivers

Function	Description
statled()	Blink the Status LED

The Code!

Modules ship with this script preloaded. Use Console to reload or modify the drivers. Additionally, some languages, such as Python, include DUELink.Engine.Record() for recording scripts directly from the host.

##### Driver Code Starts Here ###

##### User Code Starts Here #####

Samples

Script

Use Console to modify the default driver by adding this sample.

# Append this code at the bottom of the script, right after the driver.
# You MUST keep the driver code!!

Python

from DUELink.DUELinkController import DUELinkController
import time
availablePort = DUELinkController.GetConnectionPort()
duelink = DUELinkController(availablePort)

JavaScript

//code

Projects

Coming soon!

---

Ordering Info

Description	Part Number	Price
ePaper	GDL-DEPAPERM29-A	$00.00
