Clipit
 |  |  |  |
Alligator clip friendly STEM-microcomputer
- Overview
- Drivers
- Samples

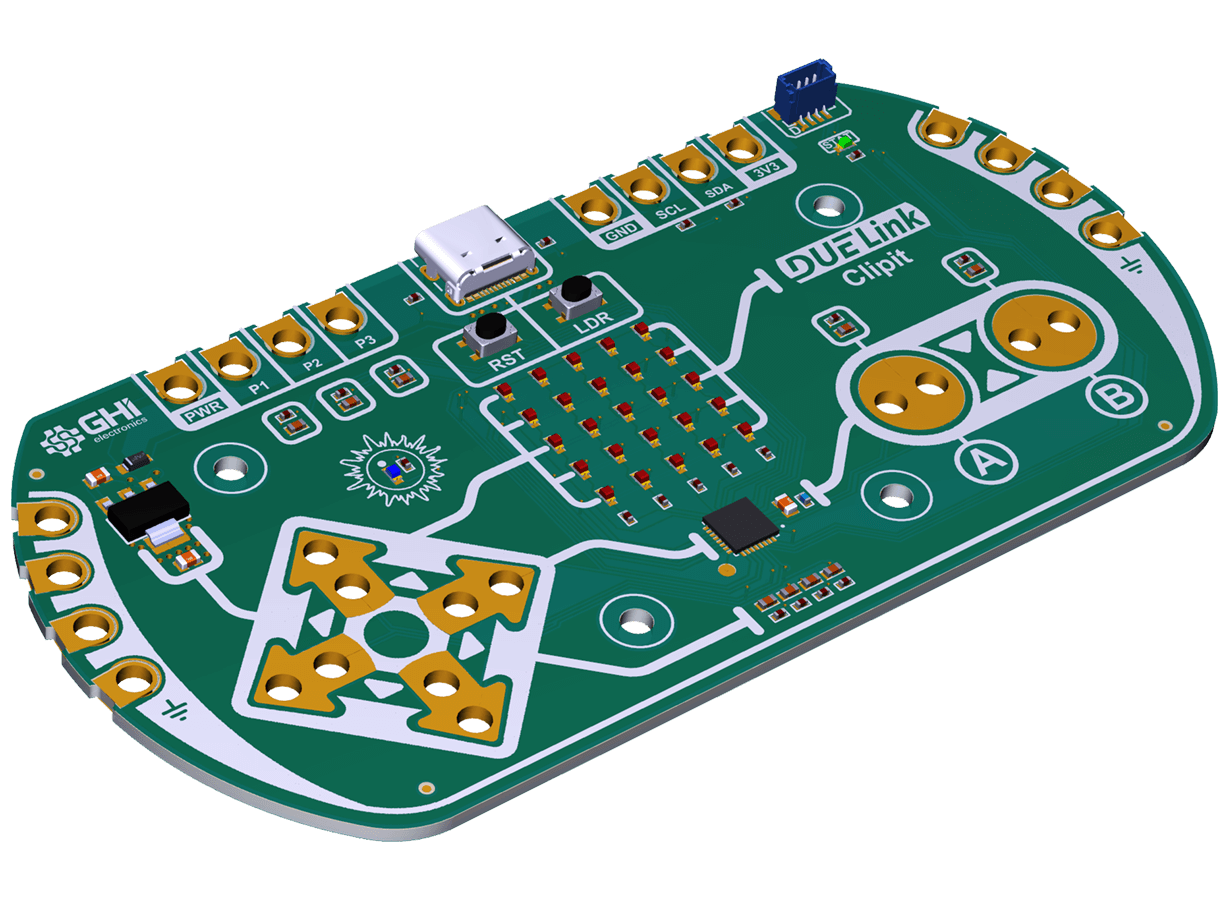

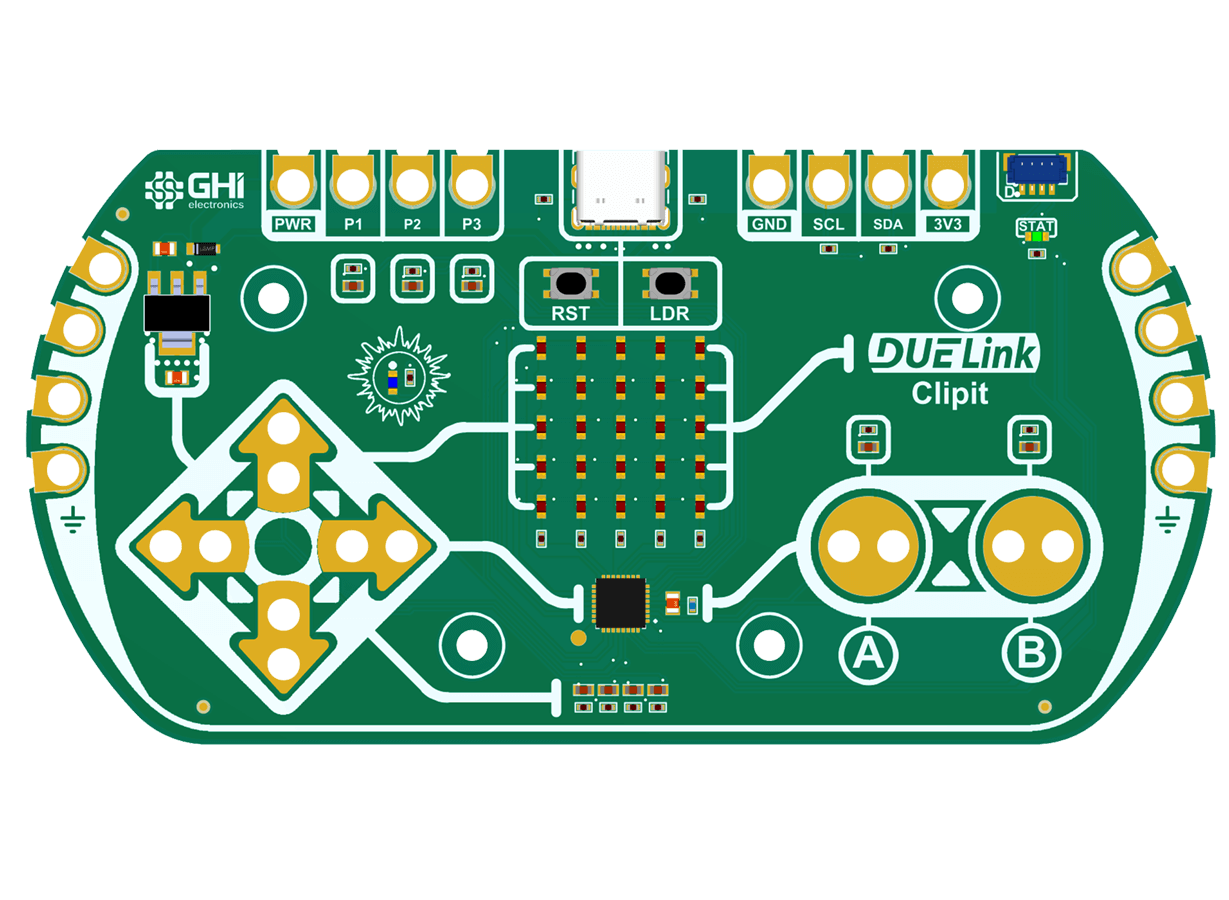

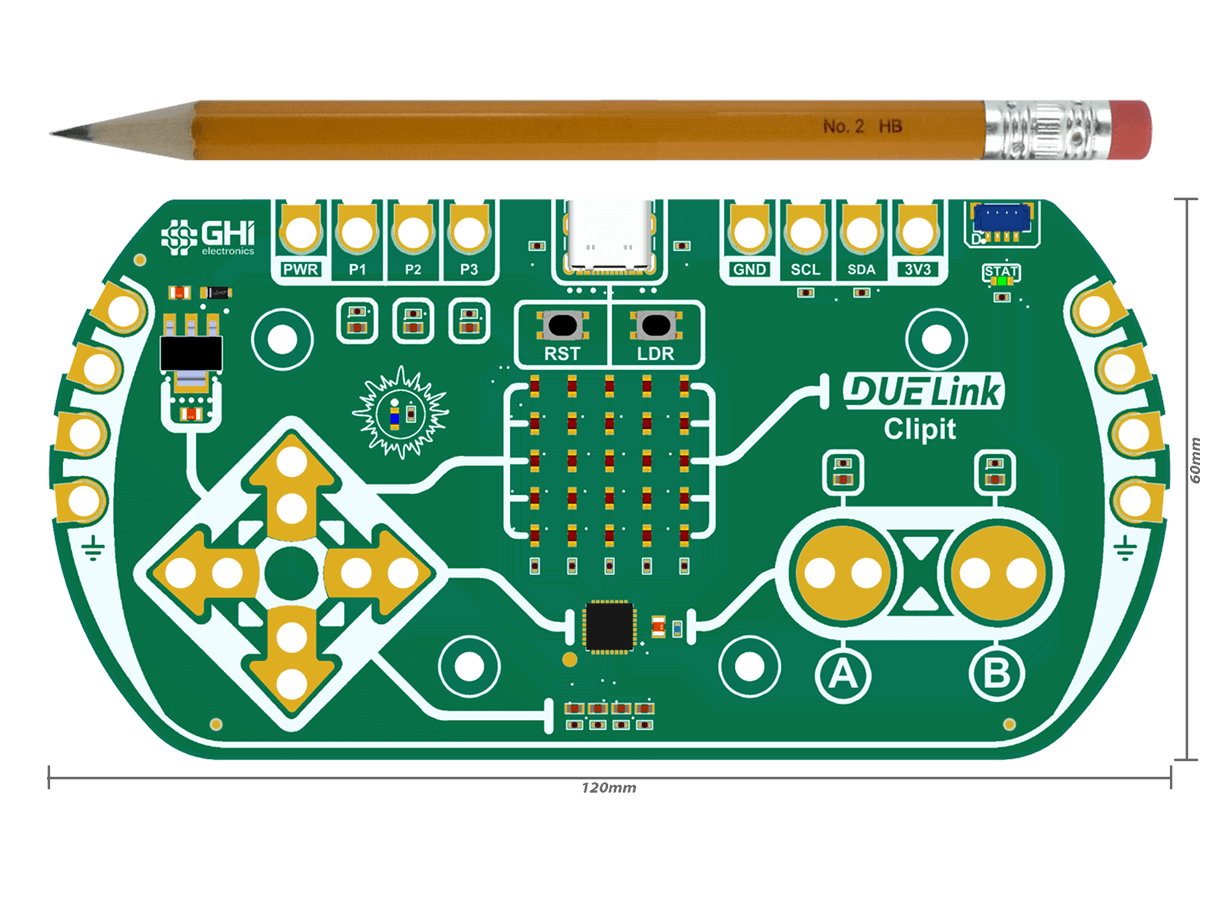

Educators can now elevate their STEM-mission with Clipit. Start immediately with light sensor and touch pads to read inputs. Then use any of the supported Languages to process those inputs and then control the output on the 5x5 LED matrix and buzzer.
Go beyond and add alligator clips for reading touch from objects, or control other circuits.
Of course, this is a DUELink board and Downlink is ready for Daisylinking all of your modules.
Key features • Clip Friendly Holes | Resources |
See Drivers page for further details.
| Function | Description |
|---|---|
TouchA() | Returns 1 if A pad is touched. |
TouchB() | Returns 1 if B pad is touched. |
TouchUp() | Returns 1 if Up pad is touched. |
TouchDown() | Returns 1 if Down pad is touched. |
TouchLeft() | Returns 1 if Left pad is touched. |
TouchRight() | Returns 1 if Right pad is touched. |
Buzzer(f,d) | Plays buzzer to f frequency(50 to 15K) for d duration in milliseconds. |
Light() | Returns voltage level from light sensor. |
DVer() | This driver version. |
The Code!
Clipit Driver
loading...
Samples assumes Drivers are installed.
- Script
Script Sample
loading...
Python Sample
loading...
JavaScript Sample
loading...
Coming Soon!
Ordering Info
| Product | Part Number | Price | DUELink Clipit | GDL-MCCLIPIT-B | $00.00 |
|---|
