Driver Scripts

The DUELink Standard Library include a long list of commonly used features. However, it's not made to be module-specific. For example, an Accelerometer might use the SPI bus. The standard library includes SPI bus support, but it is unaware of the Accelerometer. This is where the modules' Driver Scripts comes in play. In this setup, the driver can include a ReadX() function to read the acceleration on the X axis for example. This driver's ReadX() function uses the standard library's SPI bus facilities. Since these driver scripts are directly related to the module they are loaded on, ReadX() might also be a function provided by a joystick module to read the joystick position in the X axis!

Driver Scripts and their API docs are listed under the Drivers tab on each product's page. While not required, inspecting the driver's script helps with a deeper understanding of the module's internal functionality.

tip

Modules function just fine without drivers, just use the standard library! For example, use statled() to control the STAT LED. However, adding drivers greatly simplify the use of modules.

Loading Drivers​

The Console's Driver top-menu option can automatically detect the connected module and load the appropriate driver scripts. This of course only work on modules that already have DUELink official firmware loaded.

Driver Button

tip

It is advisable to always load/update the driver scripts after any firmware update.

Regions​

We take advantage of the Region feature and load Driver Scripts into Region 0-Driver. This allows the user to load their own application into Region 1-User.

You can use the console's Region Panel to see and modify any of the regions.

Driver Button

The Console will now load and show region 0 content, which you can modify and write back. See Region for more details.

Driver Version​

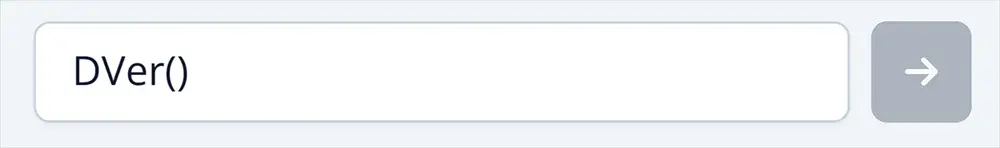

Driver scripts always include DVer() function that returns the driver's version number. If the function did not exist then the driver was not loaded!

You can access DVer() similar to all other functions, like from the immediate window for example.

Driver Version

MicroBlocks Drivers​

Just like all other coding languages, a board that is tethered to DUELink module(s) can access the module's driver scripts. However, when using MicroBlocks standalone, you will need MicroBlocks specific drivers. That is for the module itself and not for other tethered modules. We already provide specific drivers for education-focused boards. Needing drivers for other boards in stand alone mode is not a common use, but we do provide standalone samples to get you started. The driver scripts is a good reference to help in making your own MicroBlocks drivers. See MicroBlocks for more details.

Arduino Drivers​

The Arduino standalone samples found on individual modules' pages is a great starting point. You can then use the the driver scripts to expand that standalone sample into your desired functionality. Note that none of this is needed when modules are tethered to an Arduino-running board. That Arduino-running board will simply command the module's over an interface. The Arduino page has more info.
