Holiday Tree
 |  |  |  |
Smart and Festive Holiday Tree
- Overview
- Drivers
- Samples
This is arguably the smartest holiday tree in the world! Control the LEDs in Standalone mode or connect to a host and control the tree from one of the many supported languages and devcies.

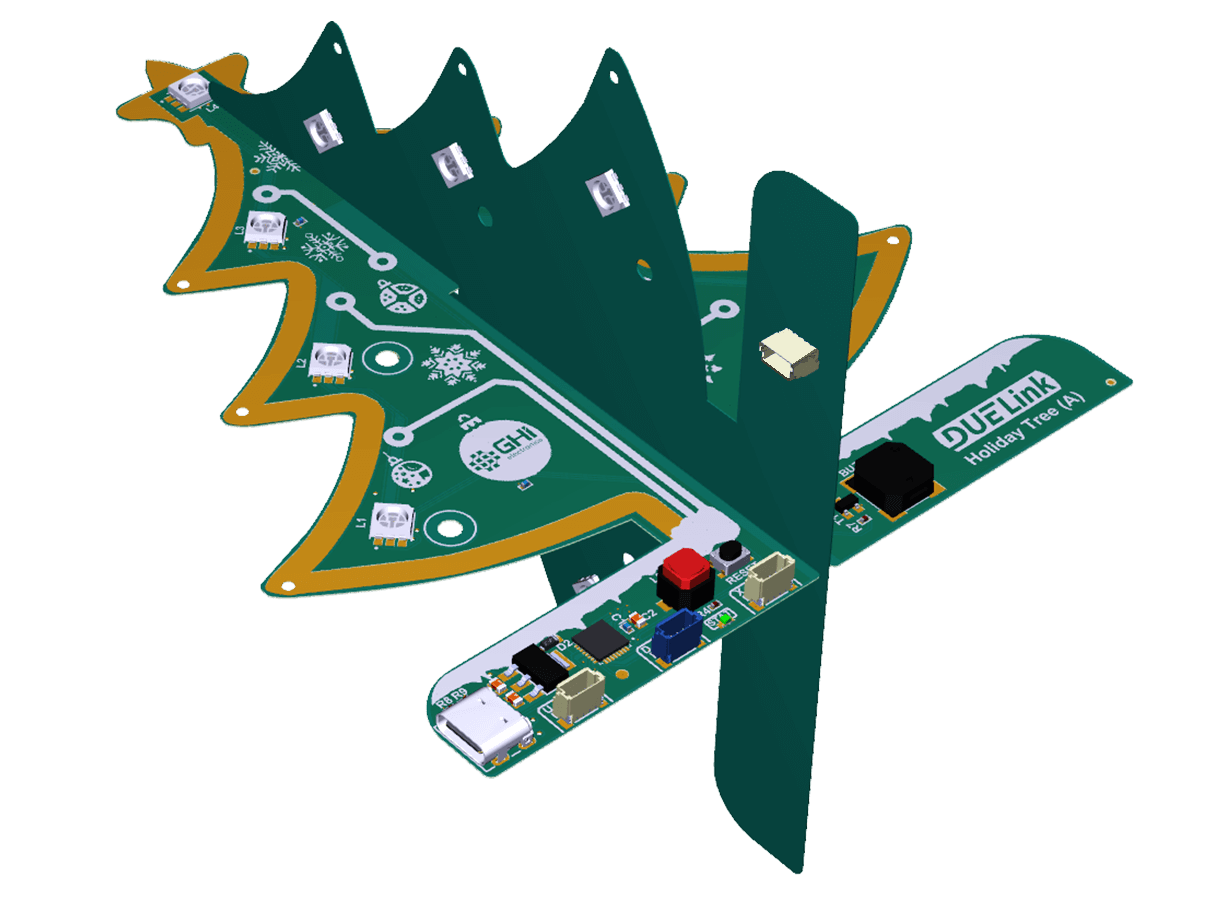

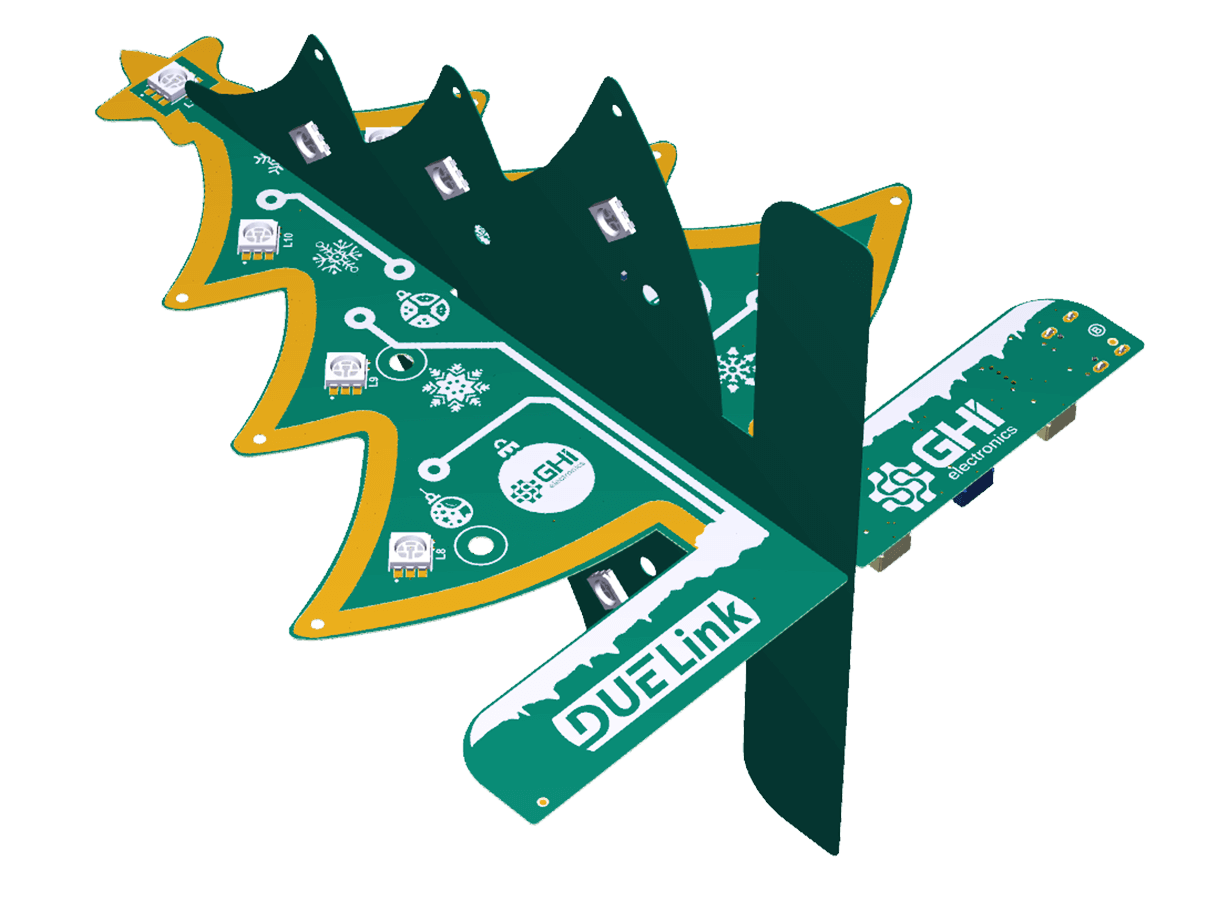

The 2 boards (A and B) slide into each other, turning this into a 3D-ish module!
Key features • Stand-up Design | Resources 📄Schematics |
See Drivers page for further details.
| Function | Description |
|---|---|
PlayLED(enable) | PlayLED(1) will make the LED constantly blink, default. Use PlayLED(0) to disable playback and manually control the LEDs. |
SetLED(i, c, l) | Sets a specific LED, i index (index start from 1), to a c color (hex value), l brightness (0 off, max 31). |
SetAll(color) | Sets all LEDs to a specific color, use 0 to turn off. |
ShowLed() | Flush Leds, and show. |
RndLed() | Show random color on random leds. |
Buzzer(f,d) | Play buzzer with f frequency and d duration in milliseconds. This is blocking function. |
DVer() | This driver version. |
The Code!
DueSTEM Driver
loading...
Samples assumes Drivers are installed.
- Script
Script Sample
loading...
Python Sample
loading...
JavaScript Sample
loading...
Coming soon!
Ordering Info
| Product | Part Number | Price | DUELink Holiday Tree | GDL-SPHOLIDAYTREE-B | $00.00 |
|---|
