LED RGB3

3 Smart LED Module

---

Overview

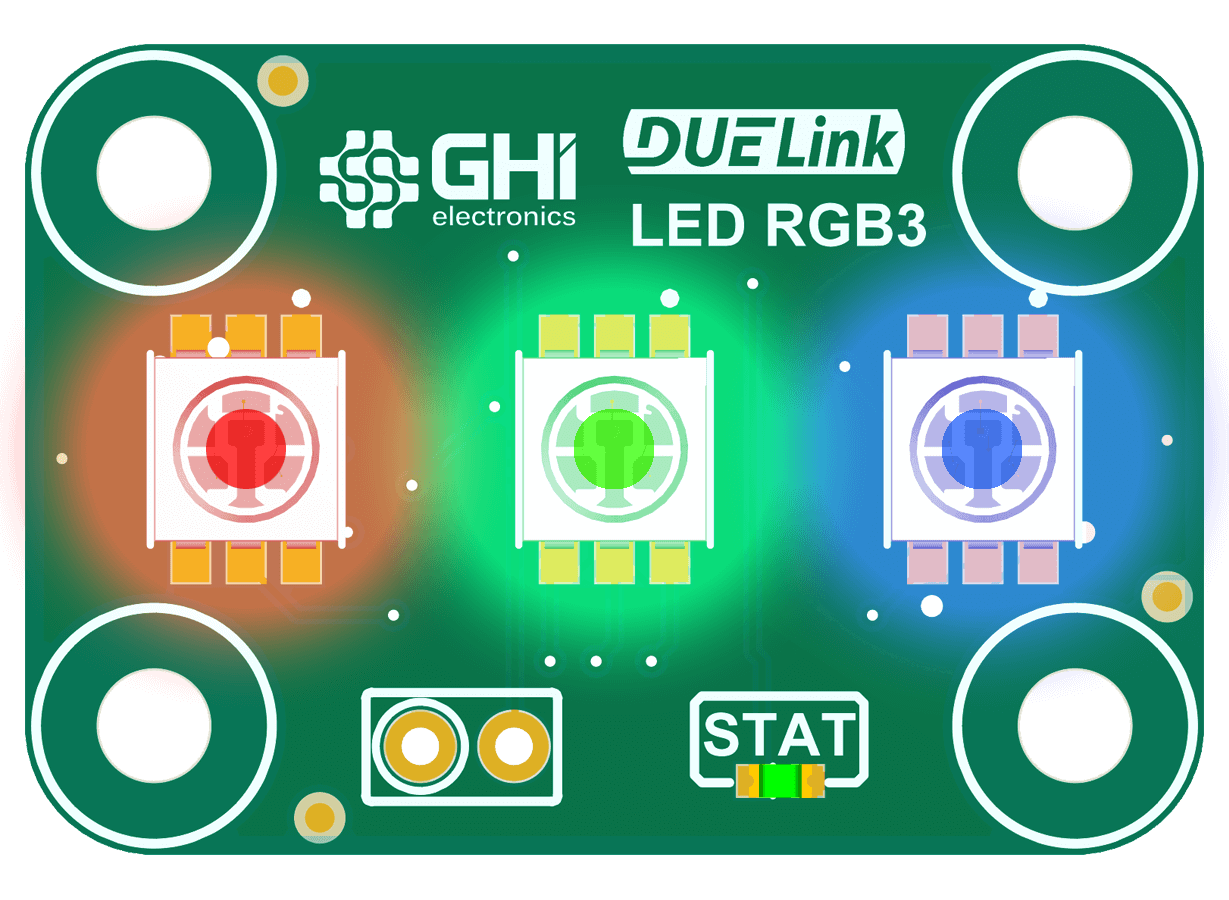

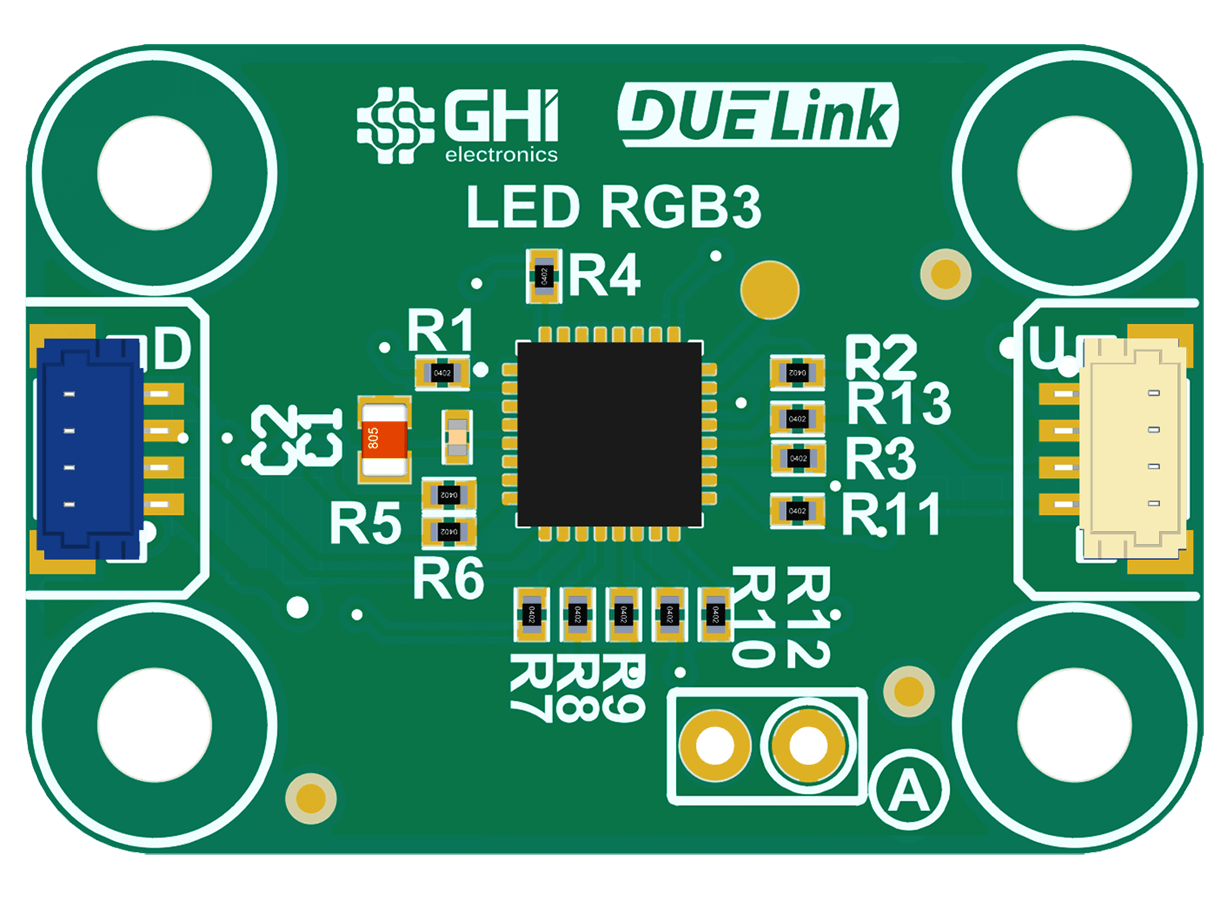

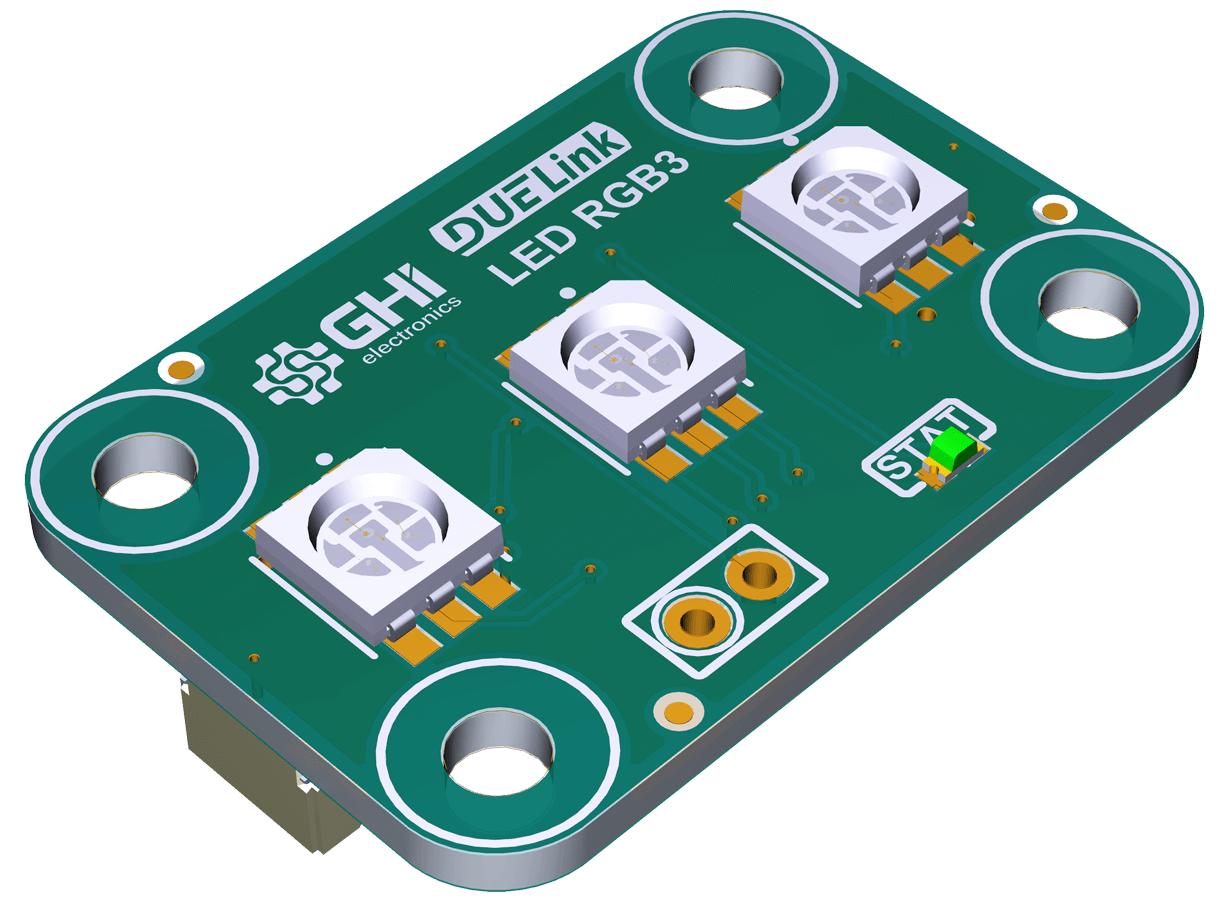

LED RGB3

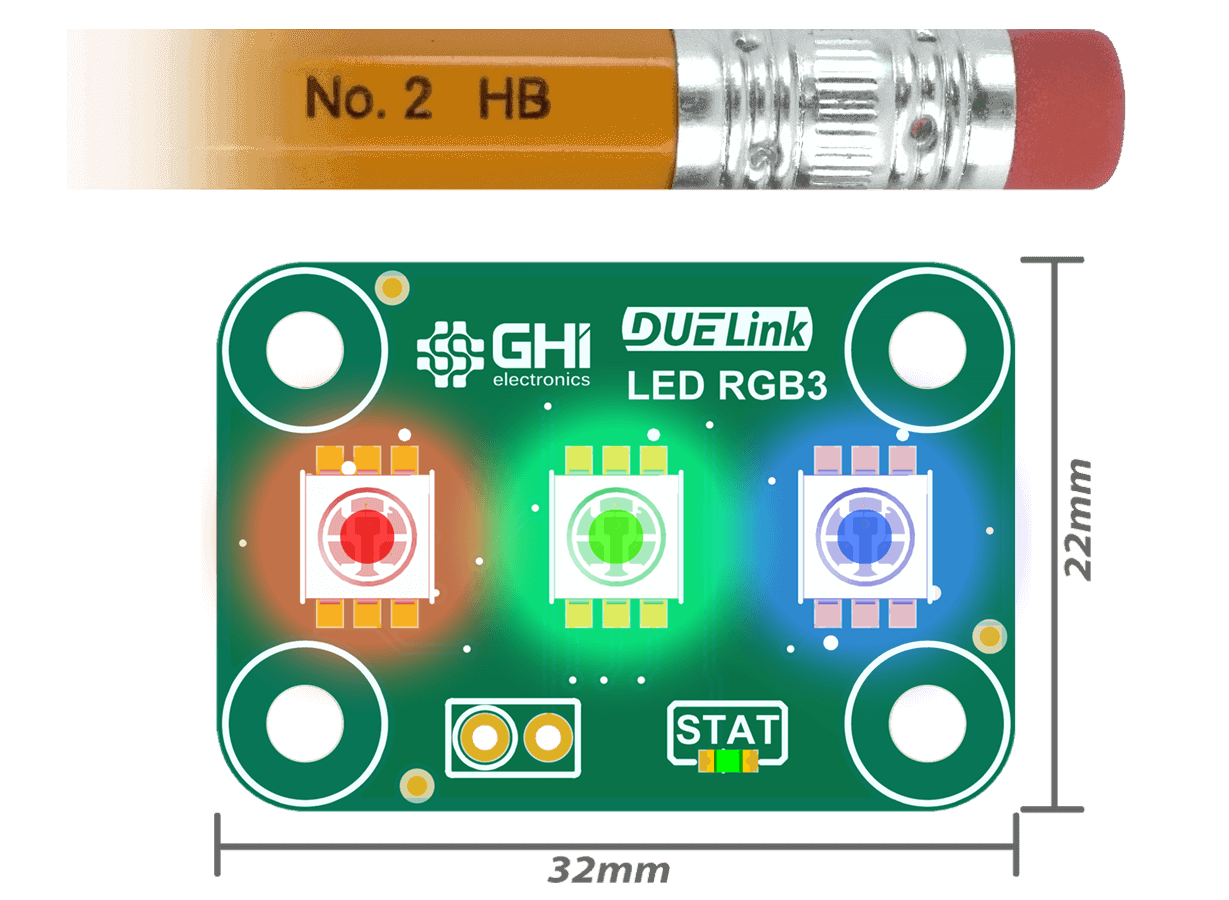

Key features • 3 Smart LEDs • 32x22mm Overall Dimension

Resources 📄Schematics 🔩3D STEP file

Drivers

Function	Description
SetLed(index,color)	index: set LED 0-2, color: hex value
DVer()	This driver version.

The Code!

Modules ship with this script preloaded. Use Console to reload or modify the drivers. Additionally, some languages, such as Python, include DUELink.Engine.Record() for recording scripts directly from the host.

fn SetLed(i, c)

  r = ((c>>16)&0xff)/255
  g =((c>>8)&0xff)/255
  b = (c&0xff)/255

  if i = 0
      pwrite(1,b)
      pwrite(2,r)
      pwrite(3,g)
  end

  if i = 1
      pwrite(4,b)
      pwrite(5,r)
      pwrite(6,g)
  end

  if i = 2
      pwrite(7,b)
      pwrite(8,r)
      pwrite(11,g)
  end

fend

fn DVer()
    return 0.1
fend

##### User Code Starts Here #####

Samples

Script

Use Console to modify the default driver by adding this sample.

# Append this code at the bottom of the script, right after the driver.
# You MUST keep the driver code!!
i = 0
while 1

    if (i = 0) # all leds are white
        SetLed(0, 0xFFFFFF)
        SetLed(1, 0xFFFFFF)
        SetLed(2, 0xFFFFFF)
    end

    if (i = 1) # all leds are red
        SetLed(0, 0xff0000)
        SetLed(1, 0xff0000)
        SetLed(2, 0xff0000)

    end

    if (i = 2) # all leds are green
        SetLed(0, 0x00ff00)
        SetLed(1, 0x00ff00)
        SetLed(2, 0x00ff00)
    end

    if (i = 3) # all leds are blue
        SetLed(0, 0x0000ff)
        SetLed(1, 0x0000ff)
        SetLed(2, 0x0000ff)
    end

    i = (i + 1) % 4
    Wait(500)
wend

Python

from DUELink.DUELinkController import DUELinkController
import time
availablePort = DUELinkController.GetConnectionPort()
duelink = DUELinkController(availablePort)

JavaScript

//code

Projects

Coming soon!

---

Ordering Info

Description	Part Number	Price
LED RGB3	GDL-LLEDRGB3-A	$00.00
