LED R16

16 LED Ring Module

---

Overview

LED R16

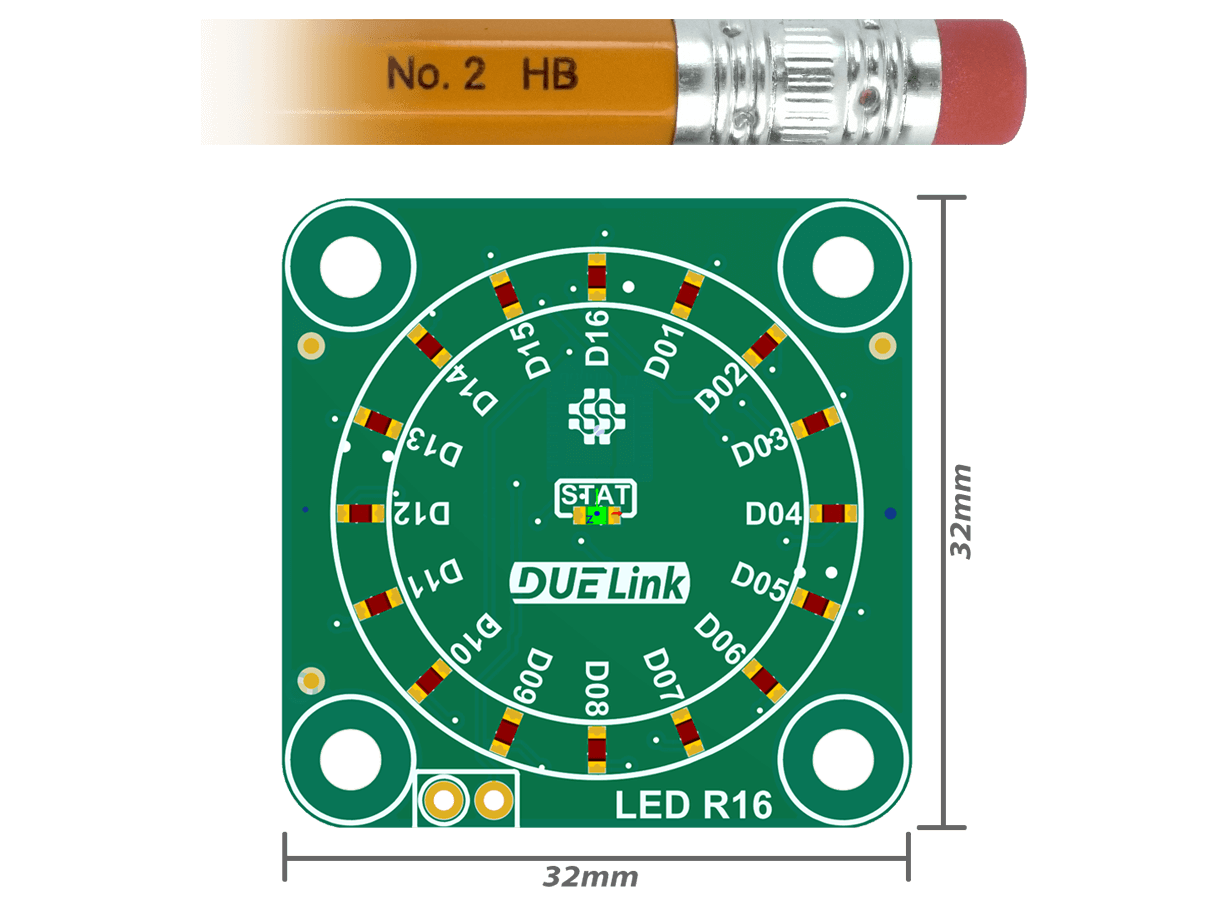

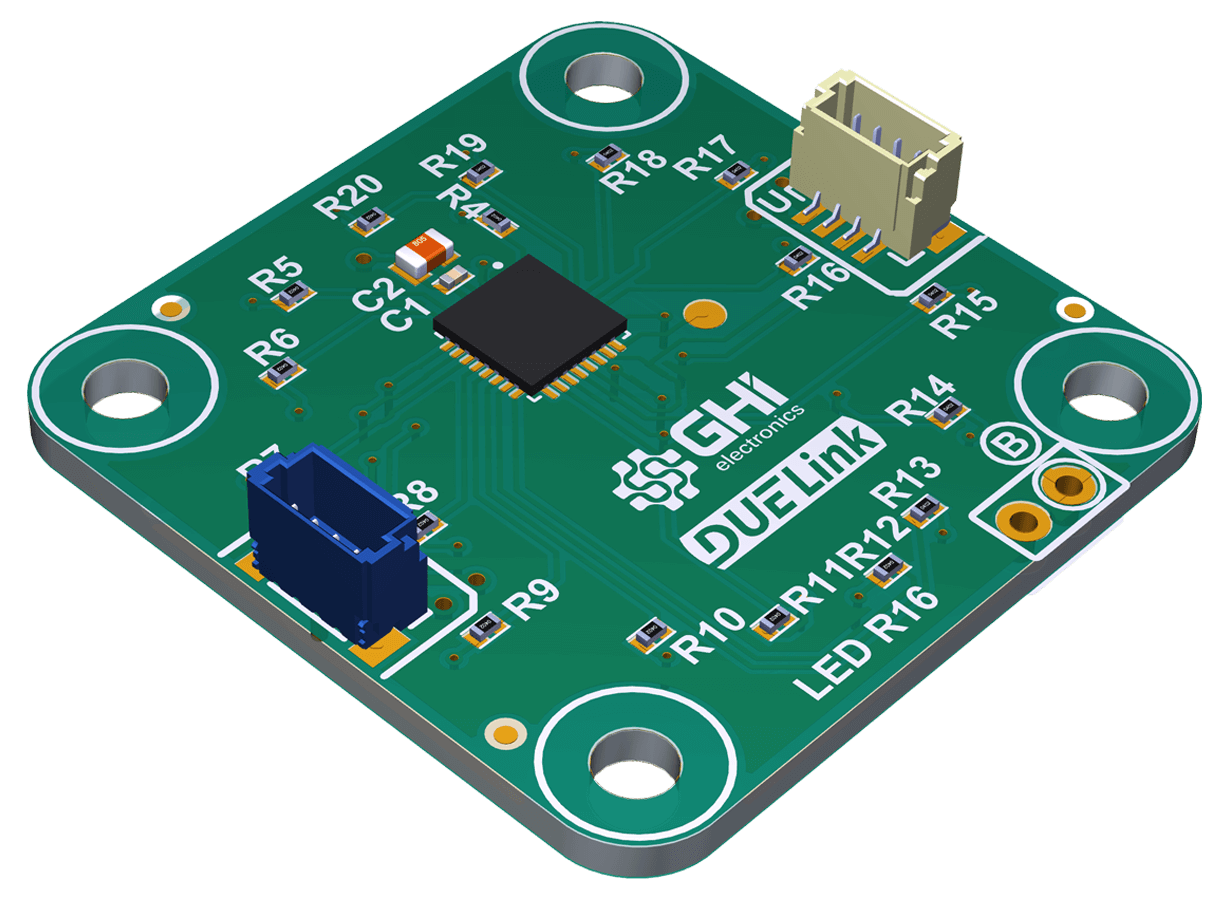

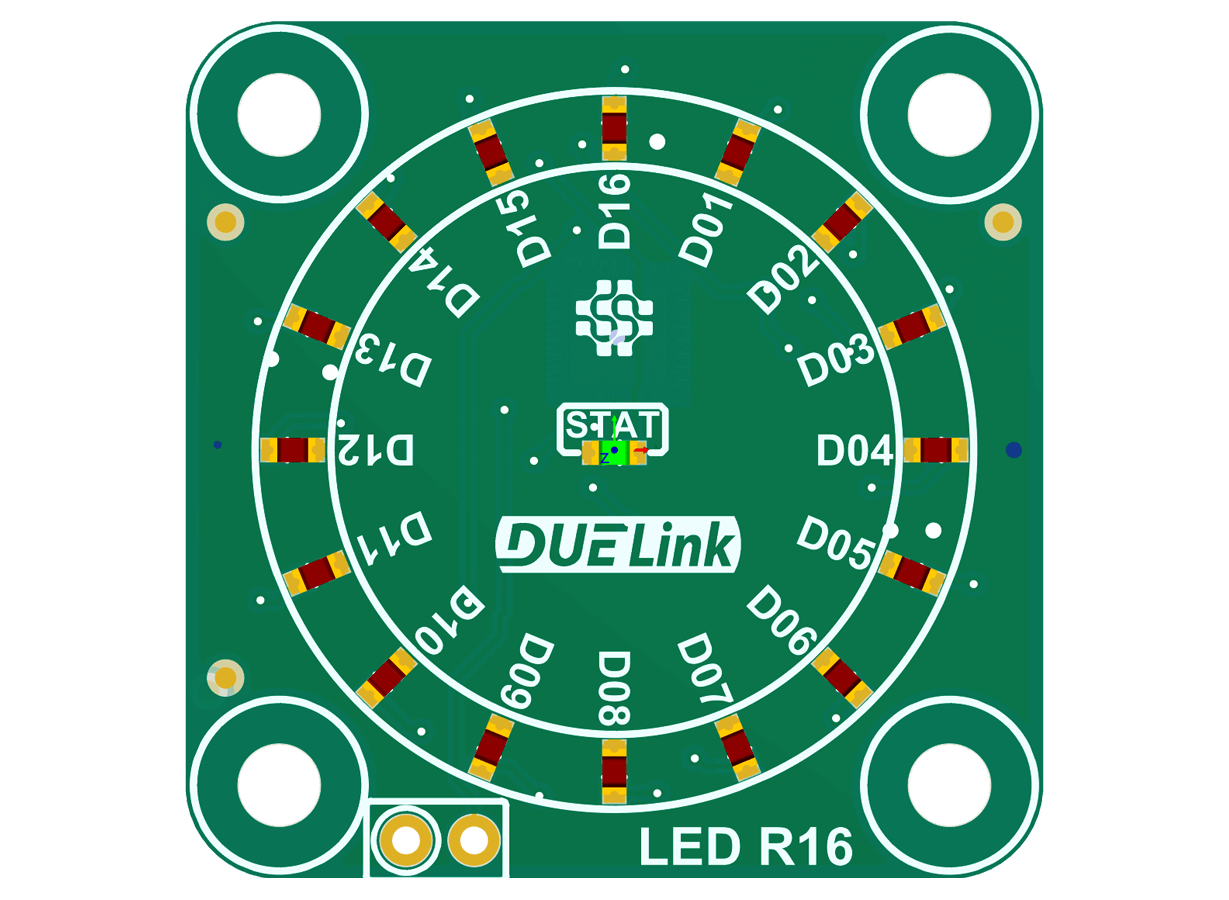

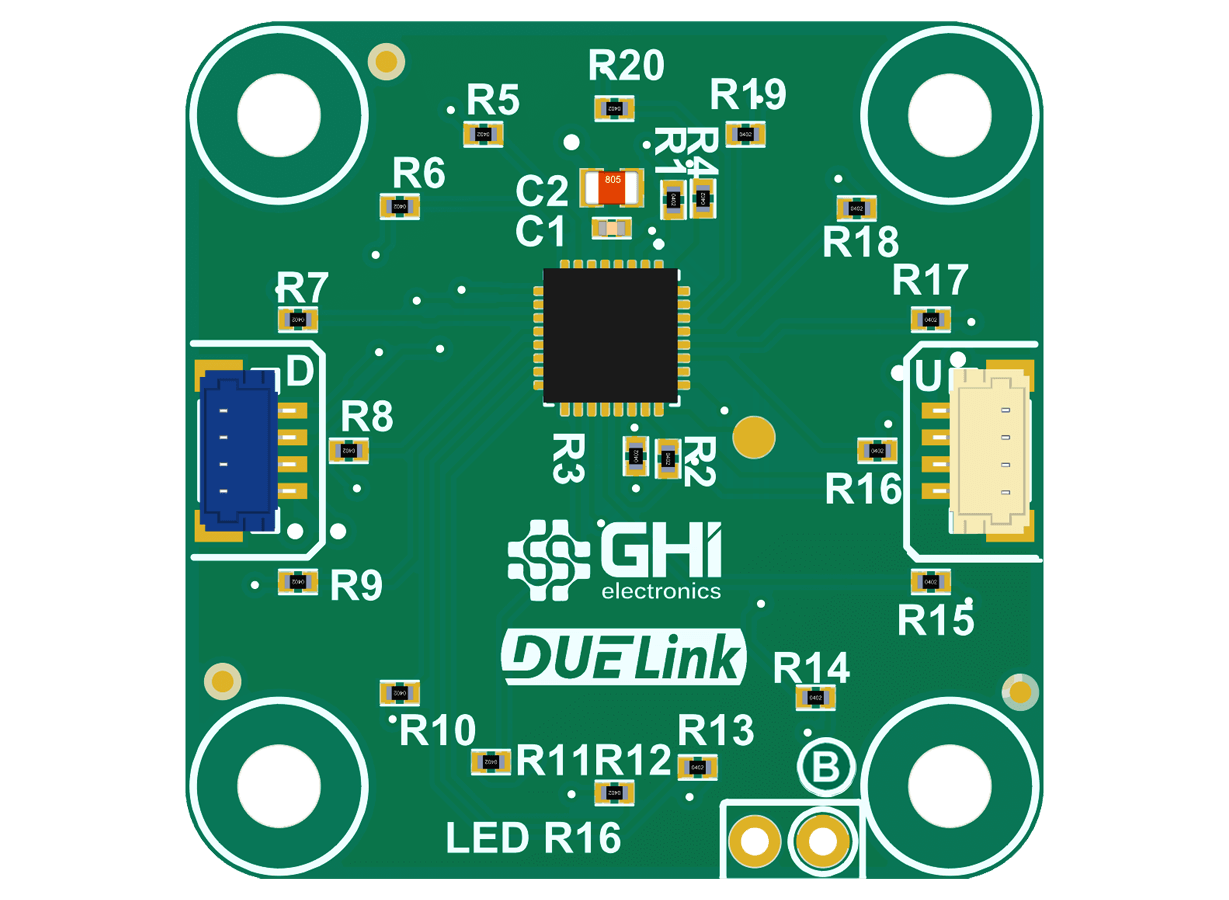

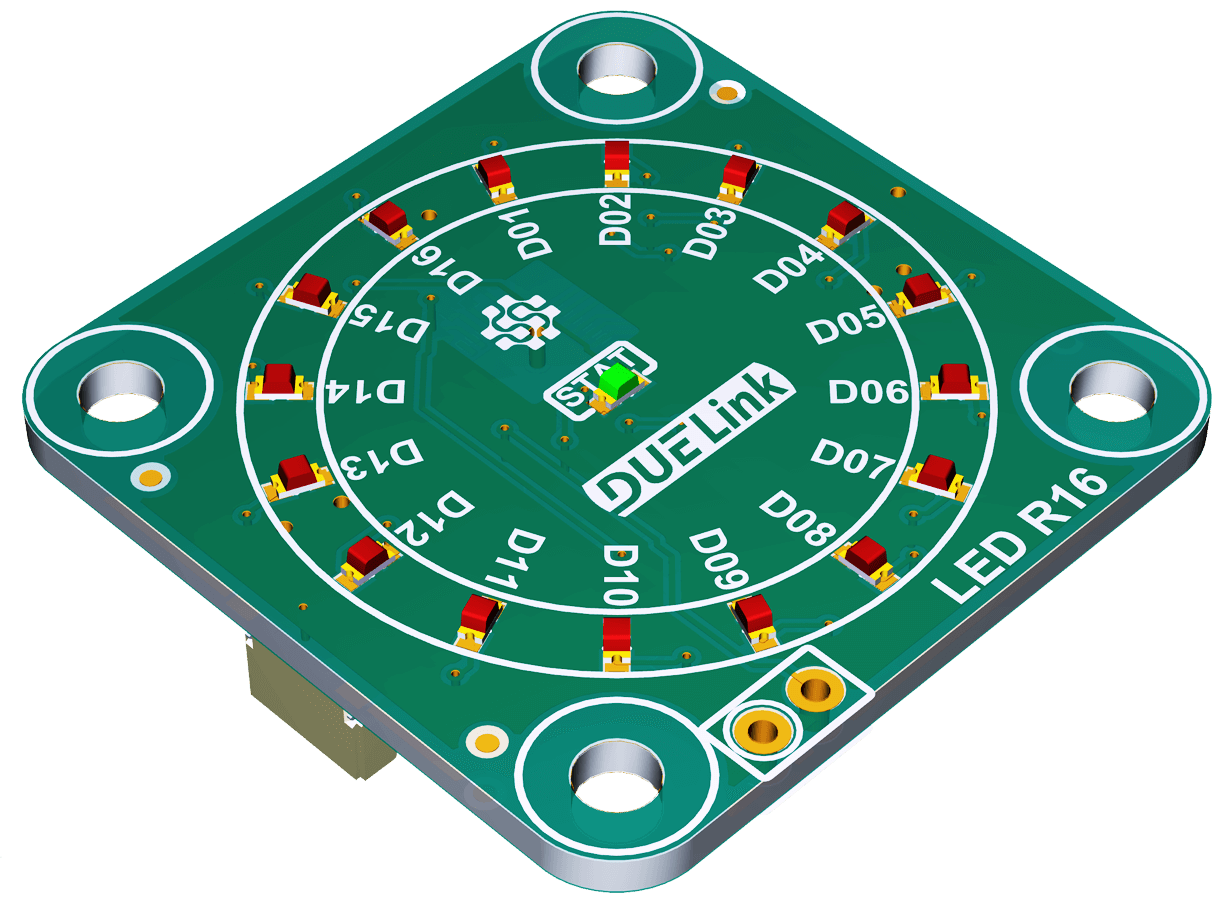

Key features • 16 LED Ring • 32x32mm Overall Dimension

Resources 📄Schematics 🔩3D STEP file

Drivers

Function	Description
SetLed(l, v)	Set Led, l: led id from 1..16, v: value 0=off, 1=on
DVer()	This driver version.

The Code!

Modules ship with this script preloaded. Use Console to reload or modify the drivers. Additionally, some languages, such as Python, include DUELink.Engine.Record() for recording scripts directly from the host.

##### Driver Code Starts Here ###
fn SetLed(l, v)
    if l > 16
        return
    end

    dwrite(l,v)
fend

fn DVer()
  return 0.1
fend

##### User Code Starts Here #####

Samples

Script

Use Console to modify the default driver by adding this sample.

# Append this code at the bottom of the script, right after the driver.
# You MUST keep the driver code!!

_i = 1
while 1

    if _i = 1
        SetLed(16, 0)
    else
        SetLed(_i-1, 0)
    end

    SetLed(_i, 1)

    Wait(100)

    _i = (_i + 1)

    if (_i>16)
        _i = 1
    end
wend

Python

from DUELink.DUELinkController import DUELinkController
import time
availablePort = DUELinkController.GetConnectionPort()
duelink = DUELinkController(availablePort)

JavaScript

//code

Projects

Coming soon!

---

Ordering Info

Description	Part Number	Price
LED R16	GDL-LLEDR16-B	$00.00
