StepDrive P1

Main
Back

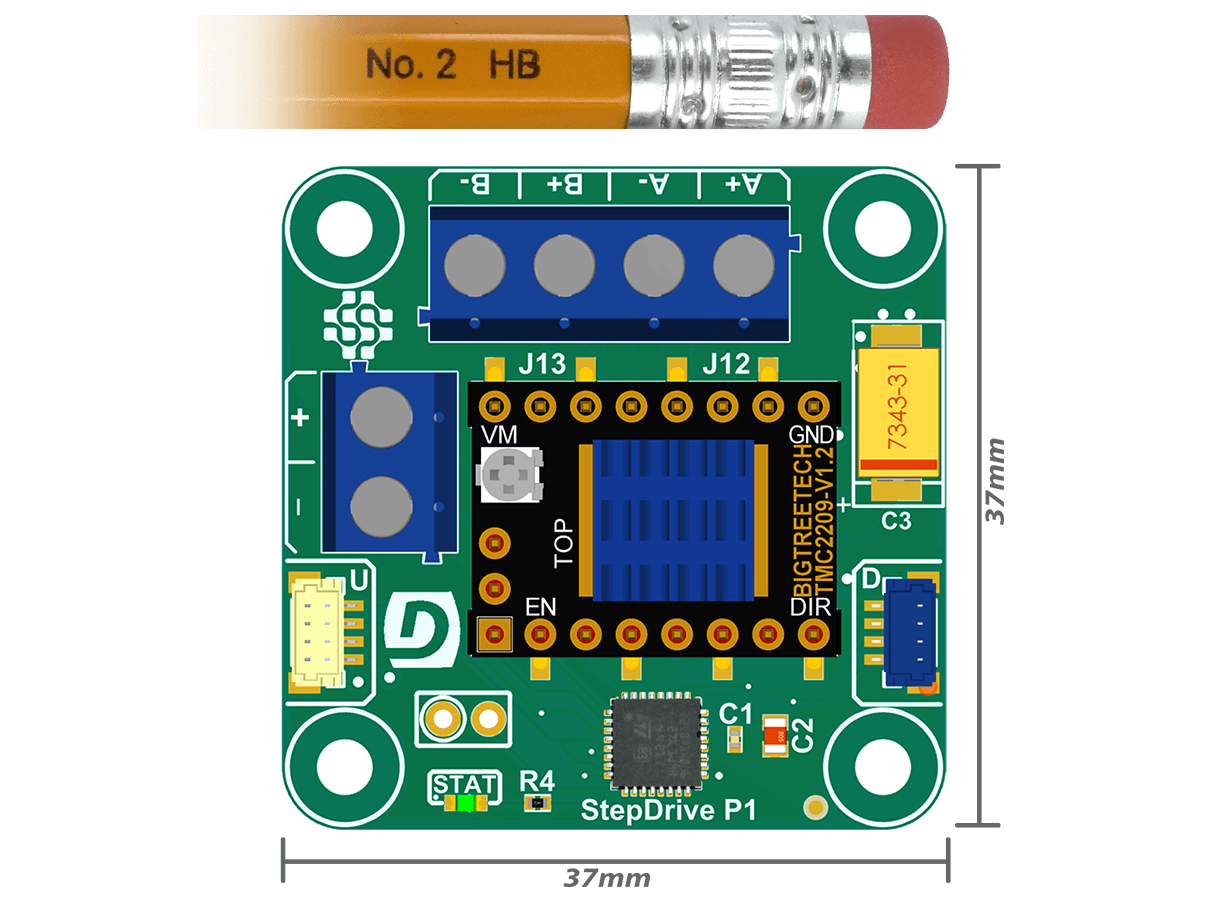

Size

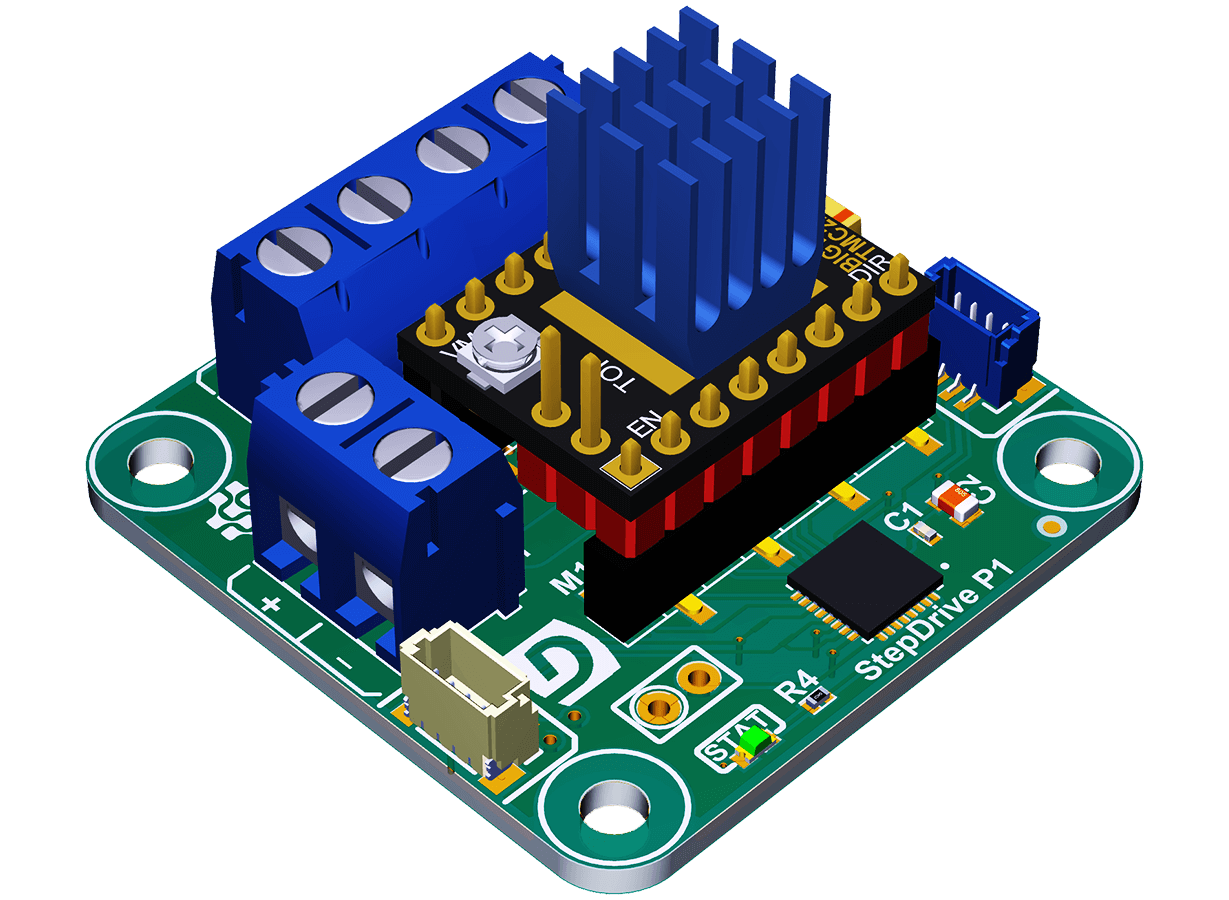

Front

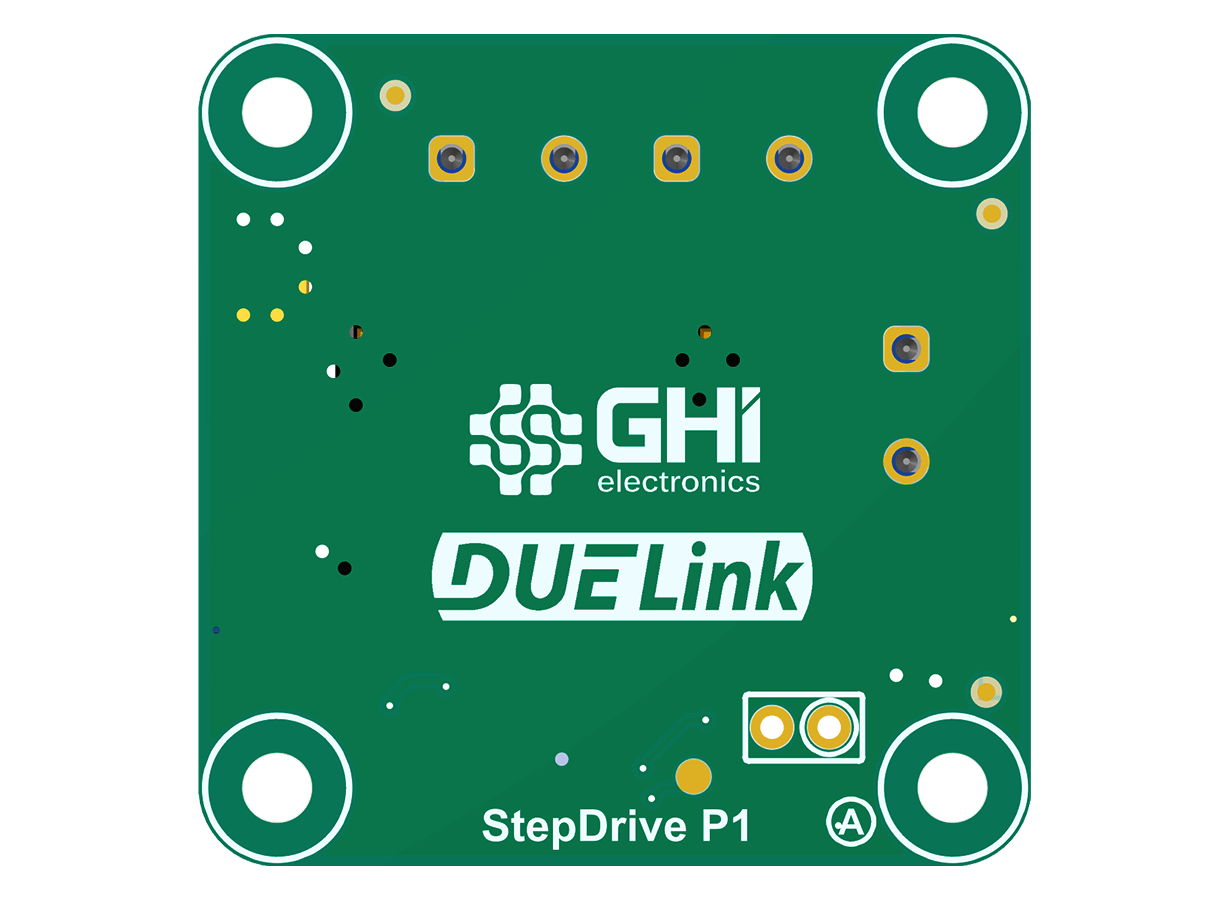

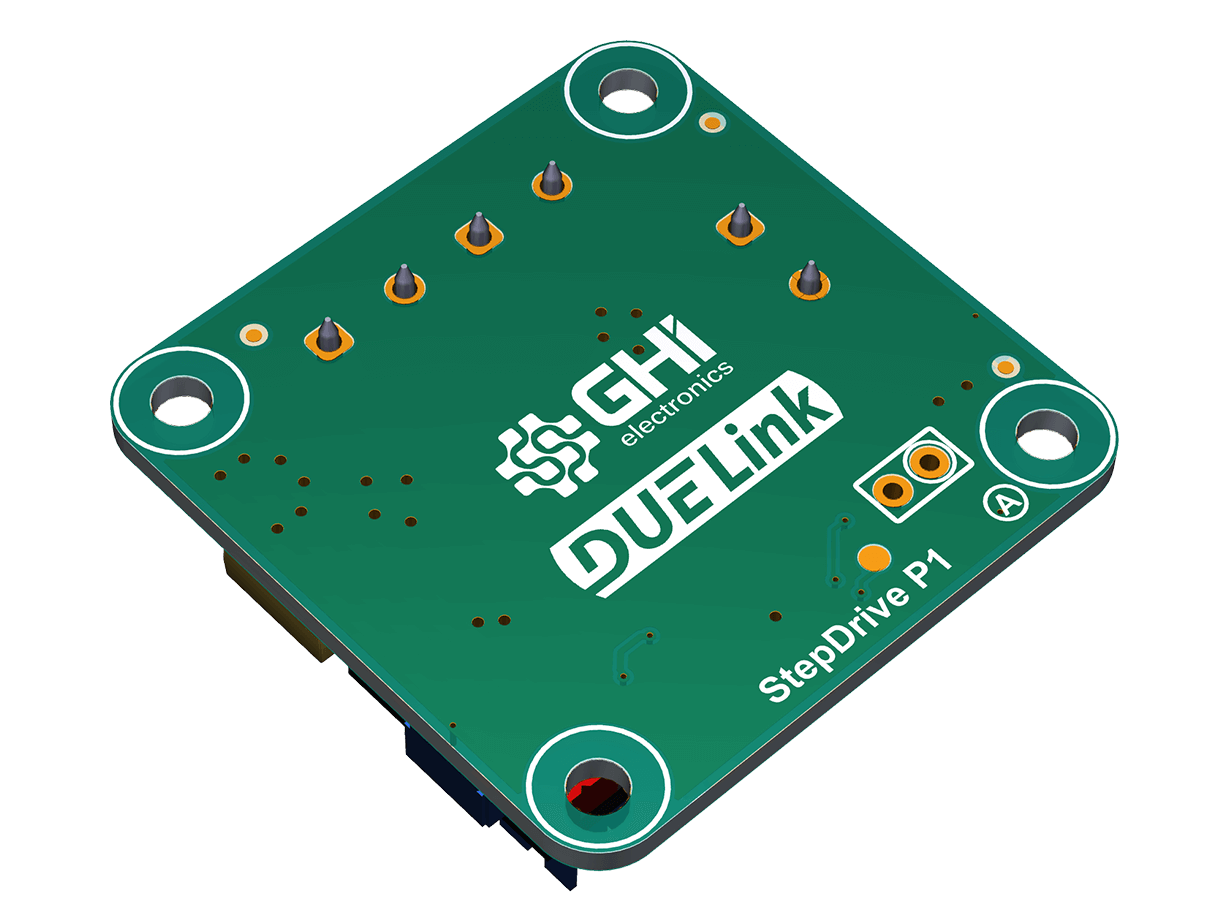

Back

Single Stepper Motor Driver

This module utilizes the very common stepper motor drivers commonly used in Arduino CNC Shield. They are available in multiple models. We include a driver capable of 30V @ 1A, but you can easily swap it with your favorite driver if desired.

Two terminal blocks are installed for wiring the power source and the stepper motor, no soldering is necessary!

Key features

• Single stepper motor control
• 30V @ 1A
• Terminal block connectors
• 37x37mm overall dimension

Resources

📄Schematics
🔩3D STEP file

Ordering Info

ProductPart NumberPrice
DUELink StepDrive P1GDL-ACSTEPDRIVEP1-A$00.00
