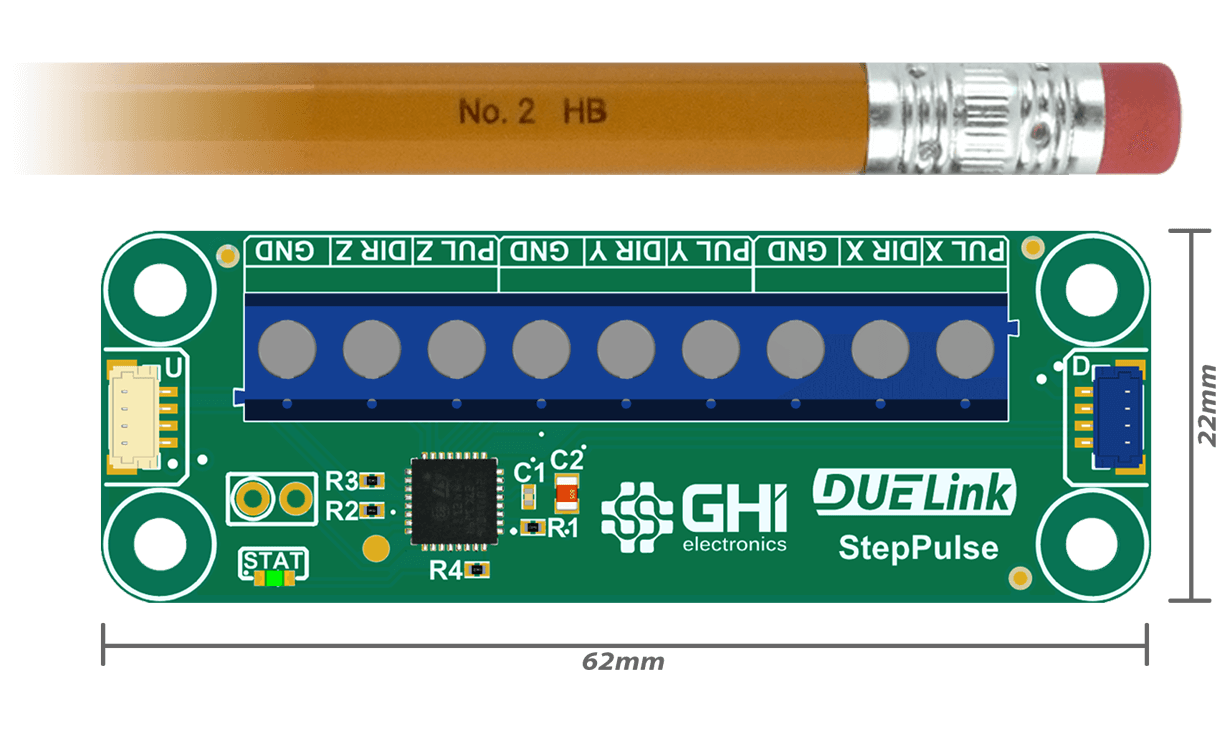

Size

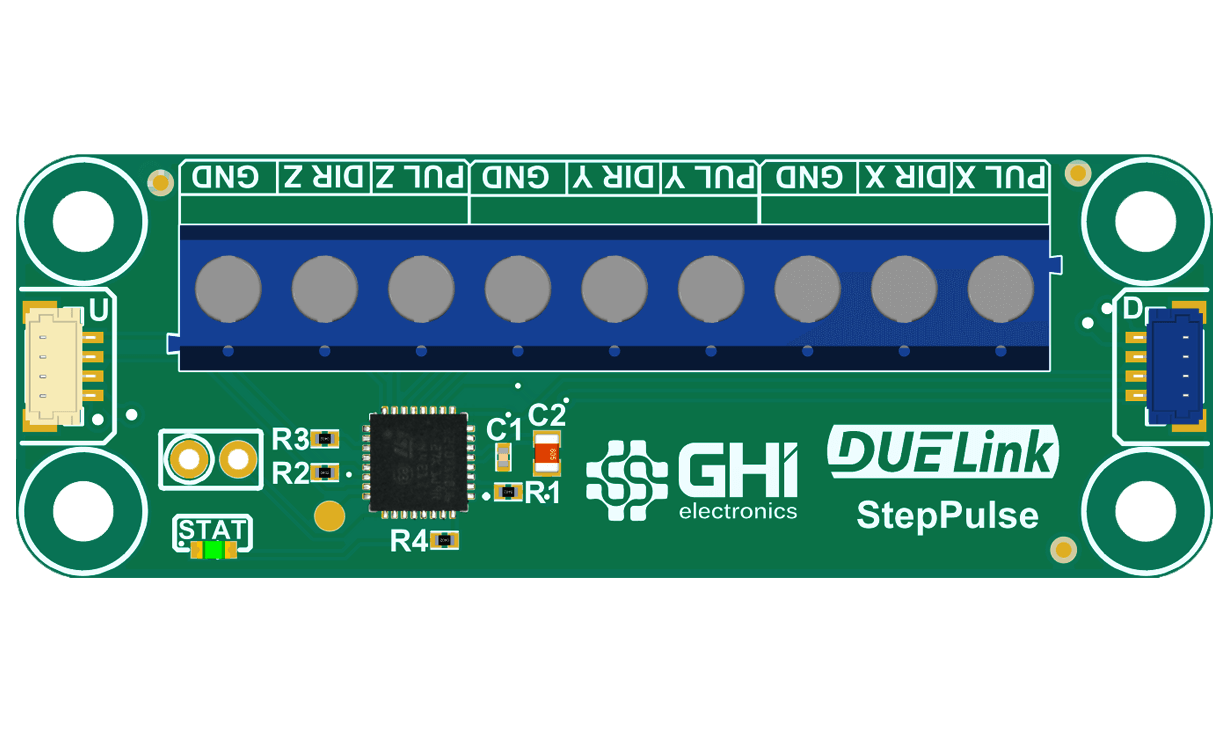

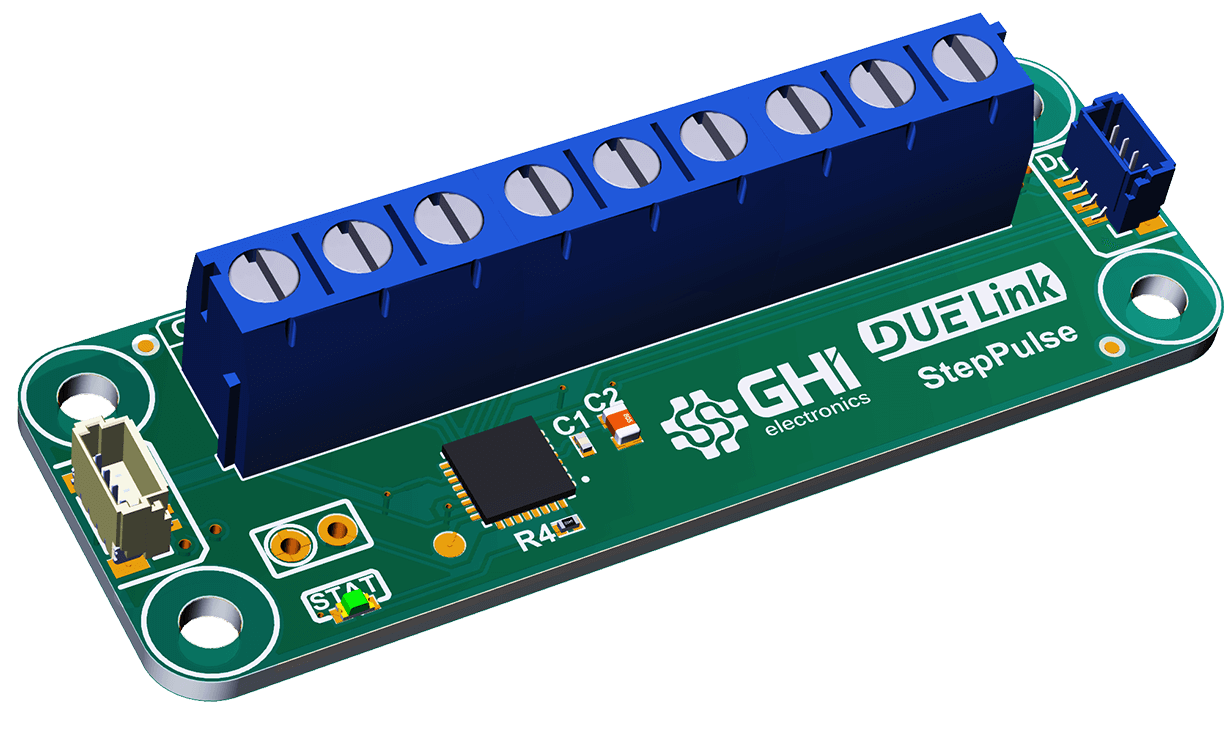

Front

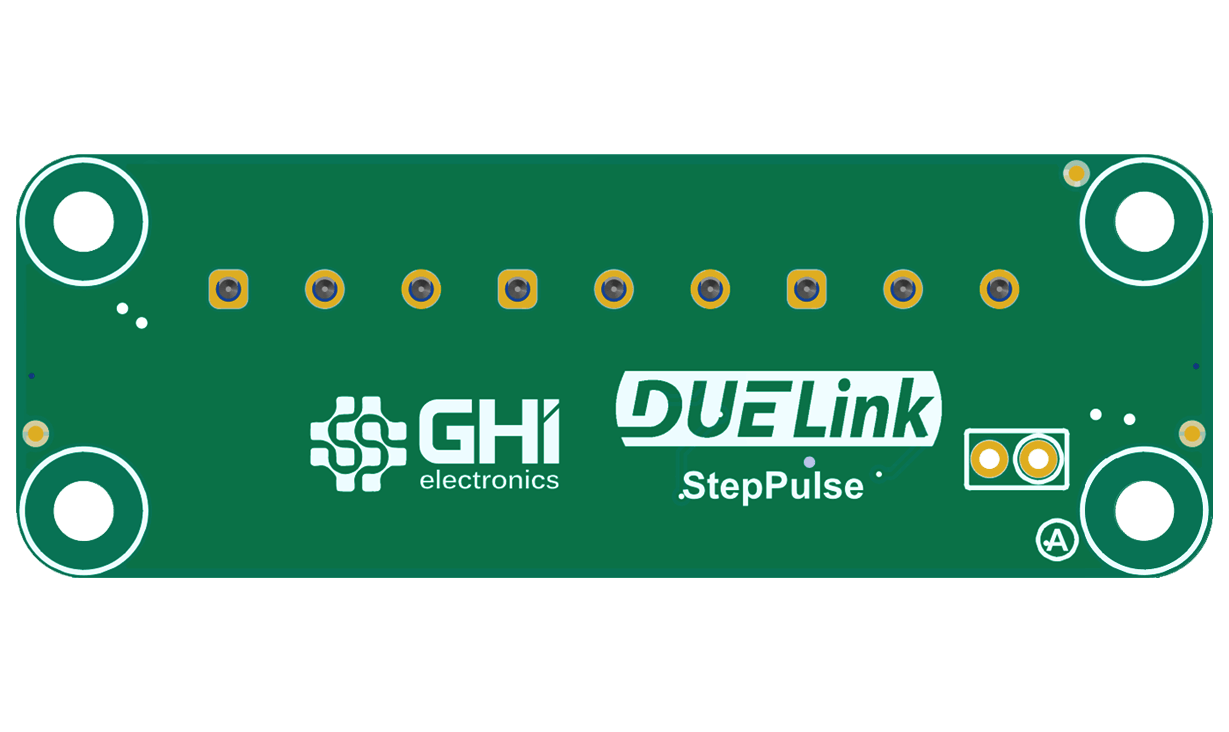

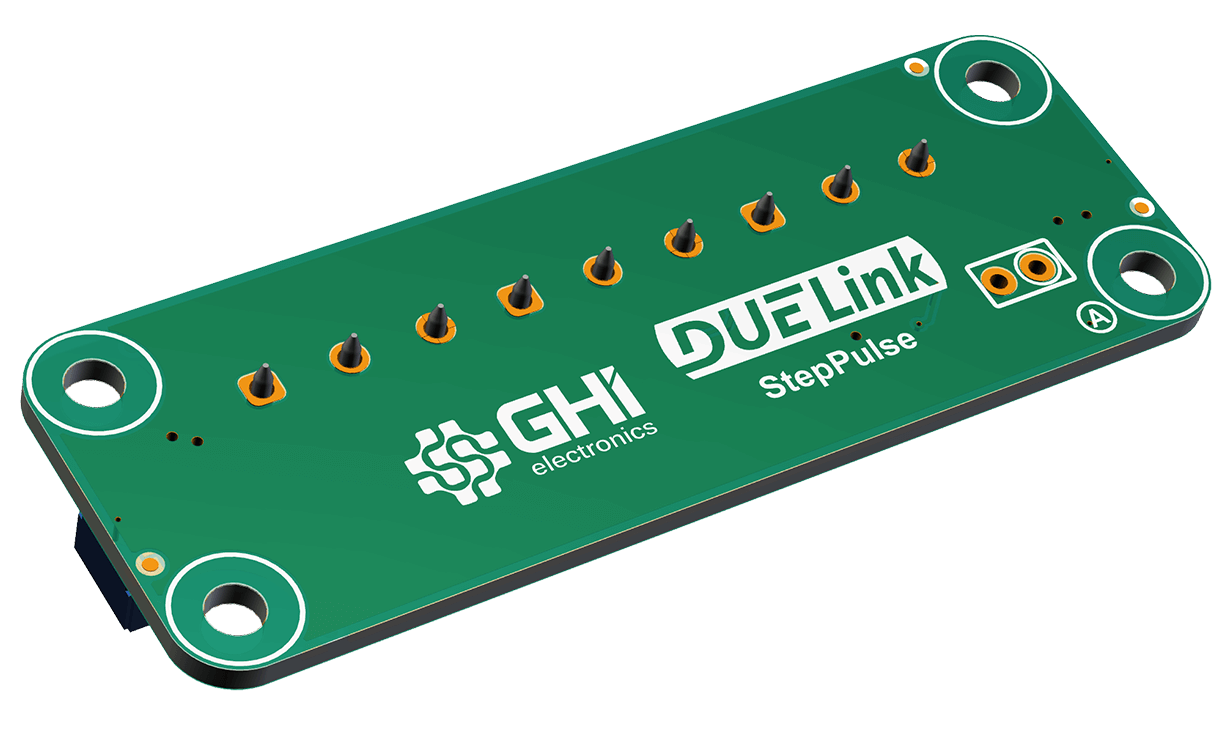

Back

Stepper Motor Signal Generator

This module will generate the signal (pulses) necessary to drive stepper motor controllers. There is a wide range of available controllers, including nicely isolated ones. Here is an example!

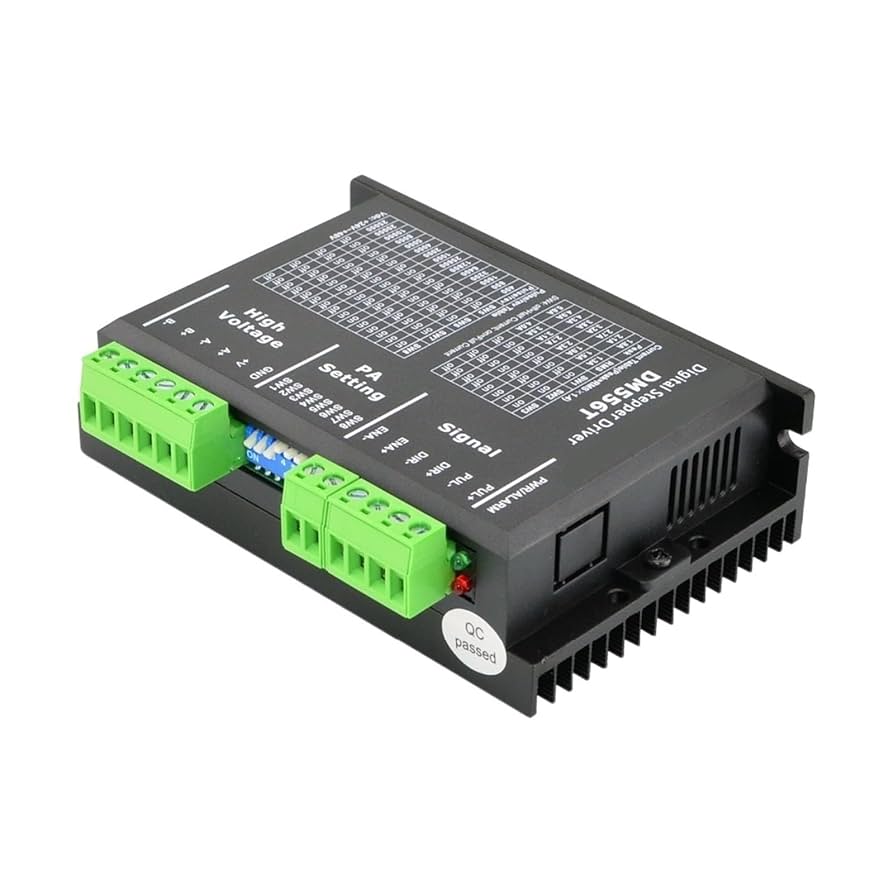

Stepper Controller

Key features

• X,Y,and Z axis control
• Terminal Block Connectors
• 62x22mm overall dimension

Resources

📄Schematics
🔩3D STEP file

Ordering Info

ProductPart NumberPrice
DUELink StepPulseGDL-ACSTEPPULSE-A$00.00
