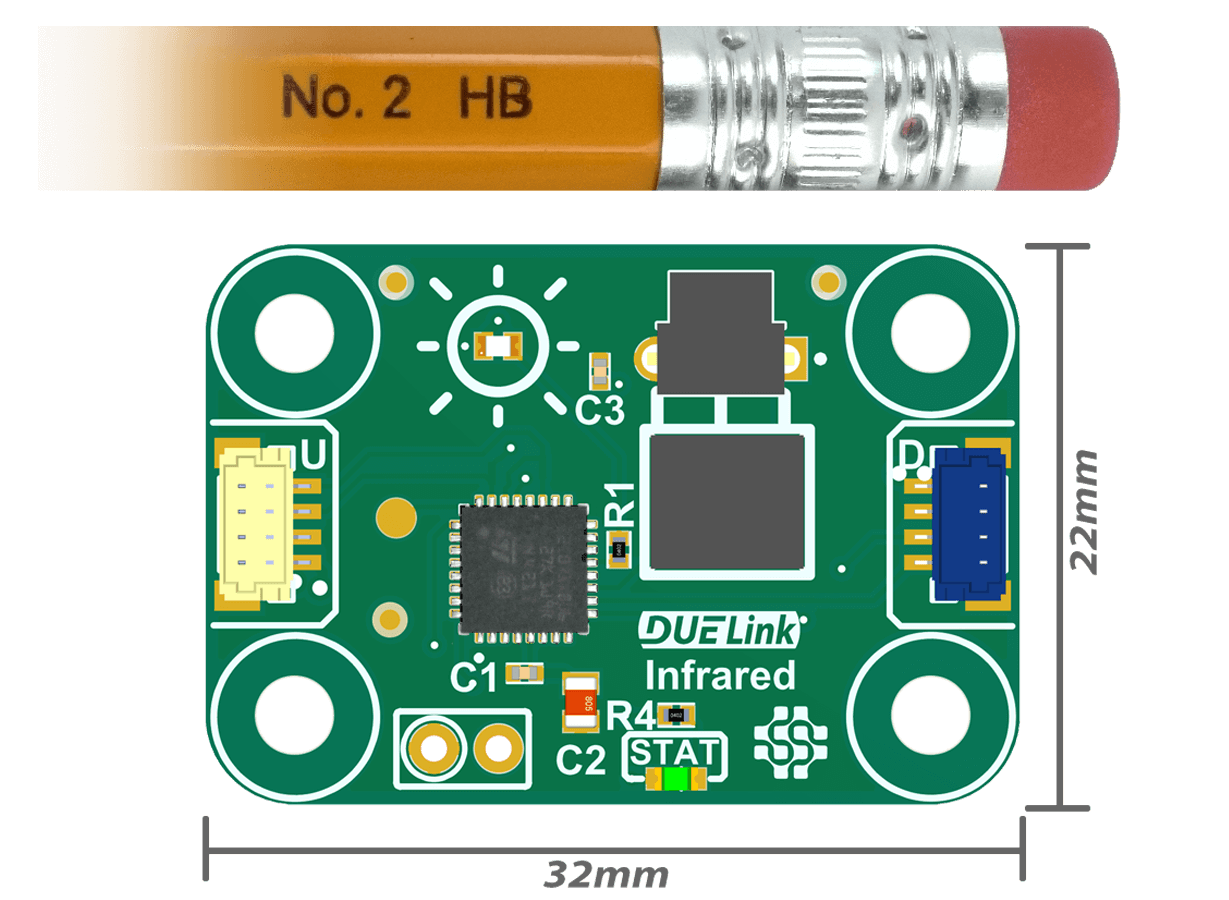

Size

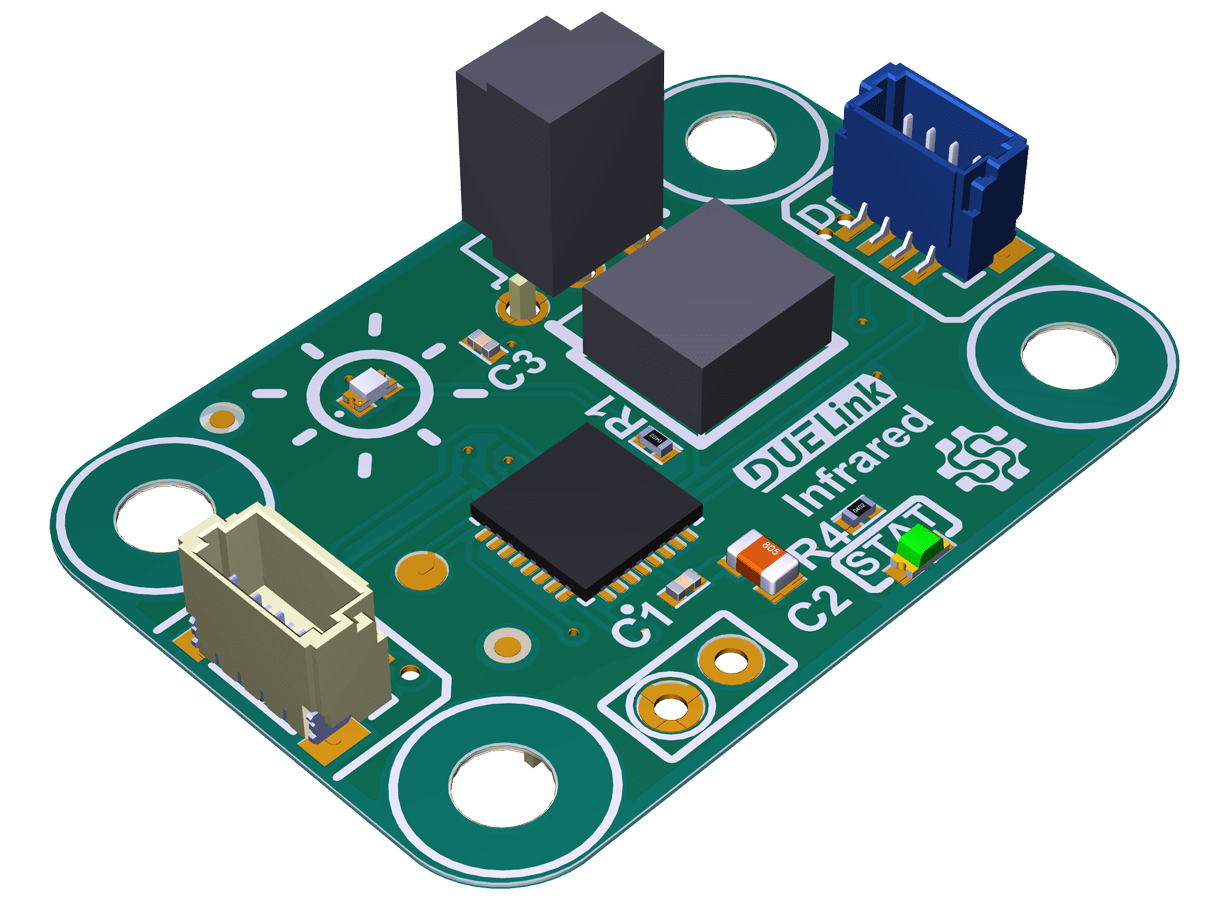

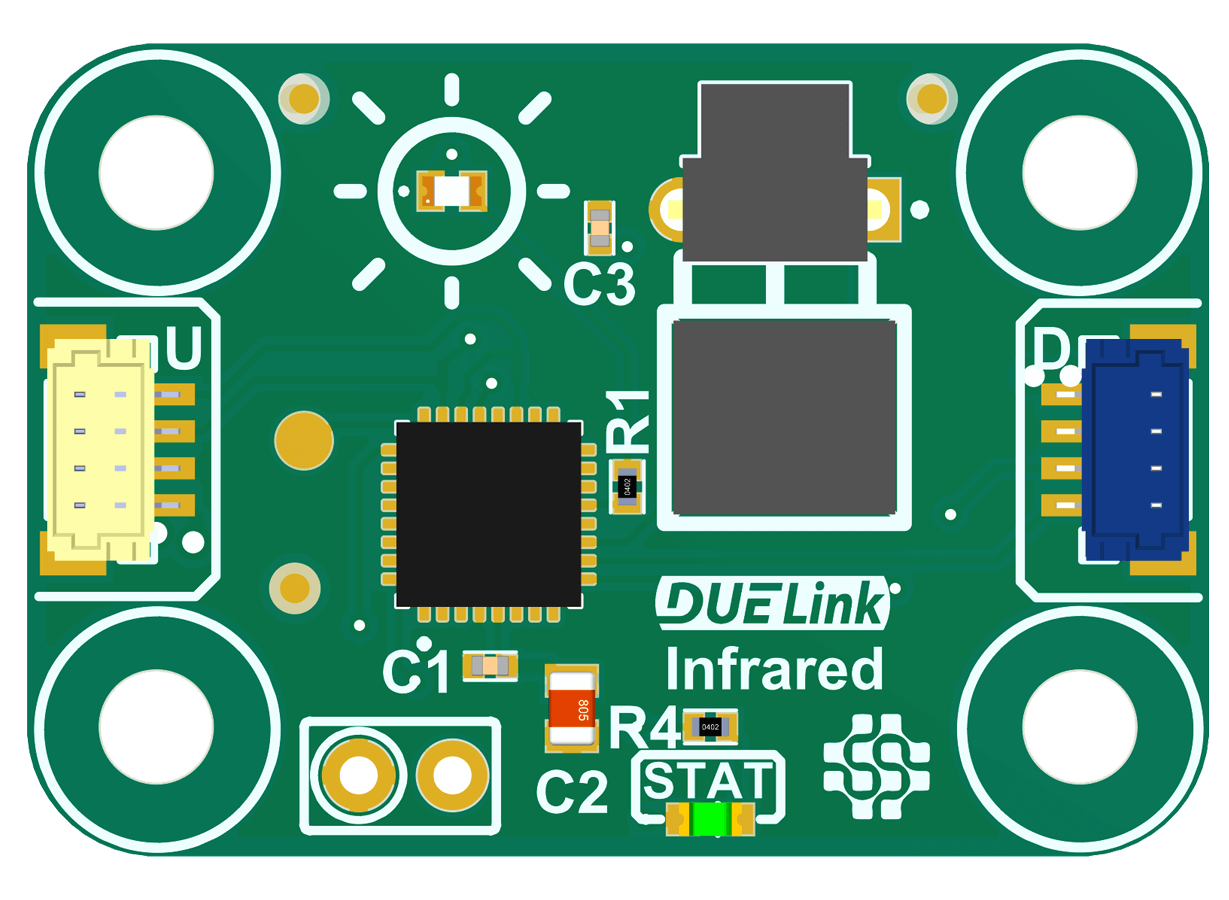

Front

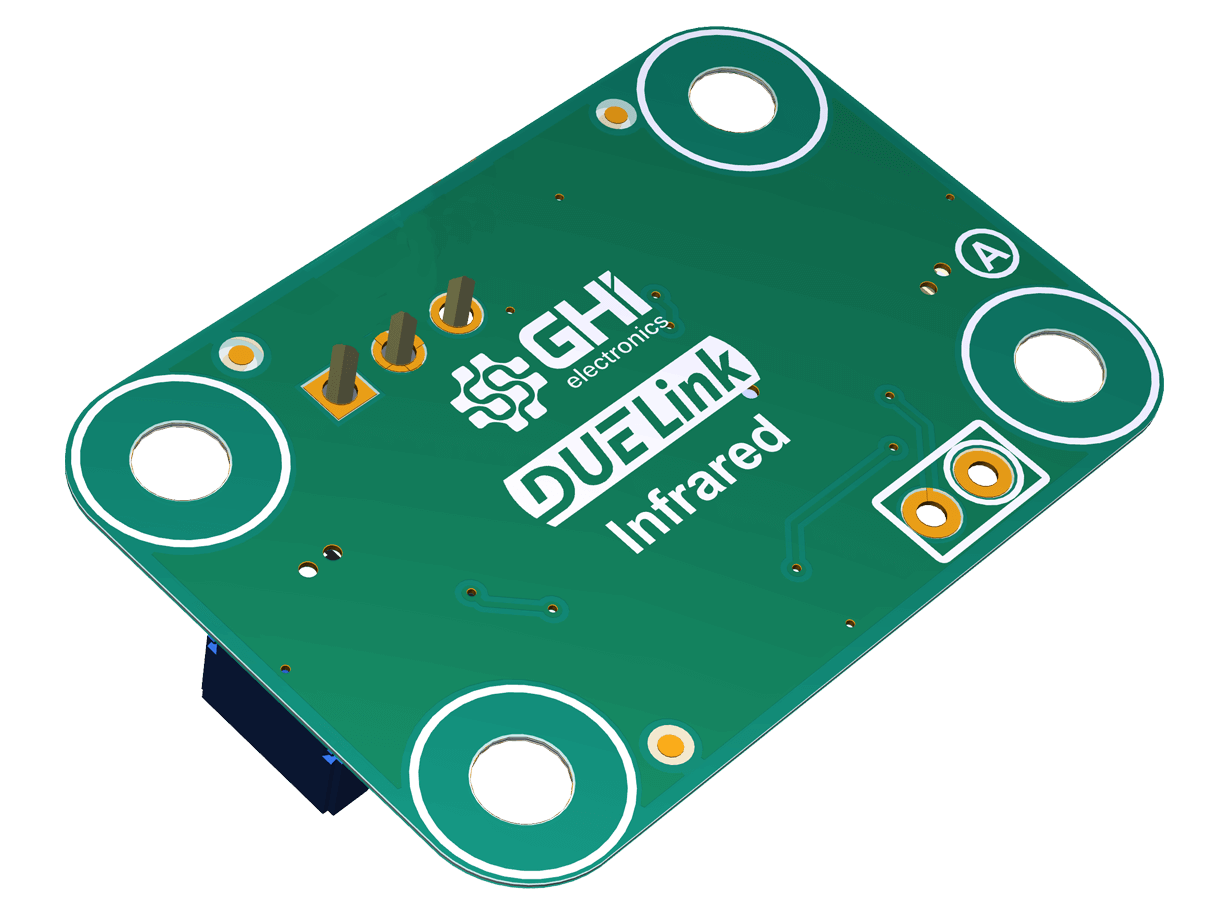

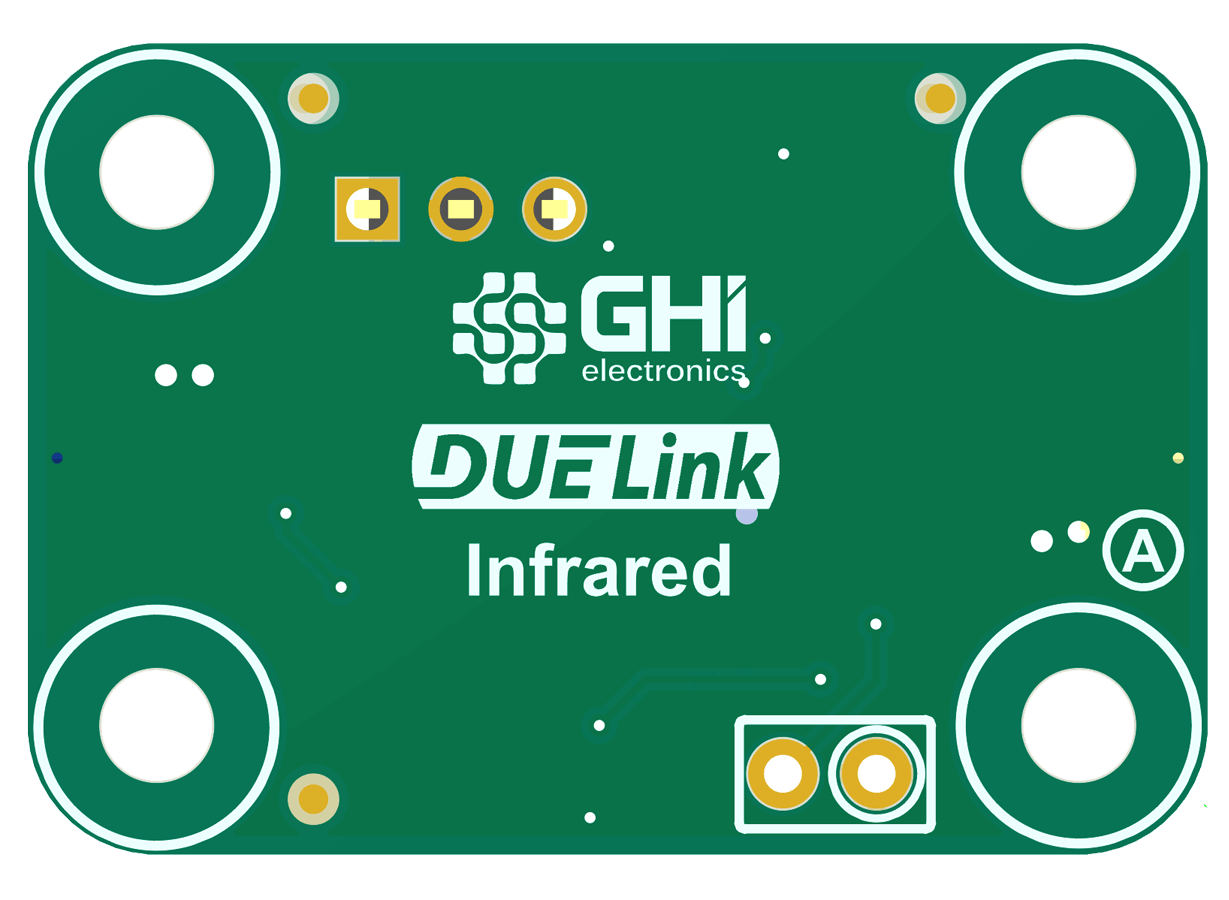

Back

Infrared Transmitter & Receiver


Use light, infrared to be exact, to send and receive data. The data is transferred over a 38Khz frequency to filter out any other surrounding infrared light.

The data sent is compatible with NEC remote control.

Another use of the module is to control NEC compatible devices (like a TV) or receive key presses from a universal remote control.

Key features

• Infrared Connectivity
• Transmitter and Receiver
• 38Khz carrier frequency
• 32x48mm overall dimension

Resources

📄Schematics
🔩3D STEP file


Ordering Info

ProductPart NumberPrice
DUELink InfraredGDL-WINFRARED-A$00.00
