Spectrum Analyzer

This module breaks down the incoming audio into 63Hz, 160Hz, 400Hz, 1Khz, 2.5Khz, 6.25Khz, 16Khz. It then measures the audio level at these frequencies. You can use these levels as you wish, like using the info to control an LED display.

Key features

• Frequency Analyzer
• 7 individual frequency filters

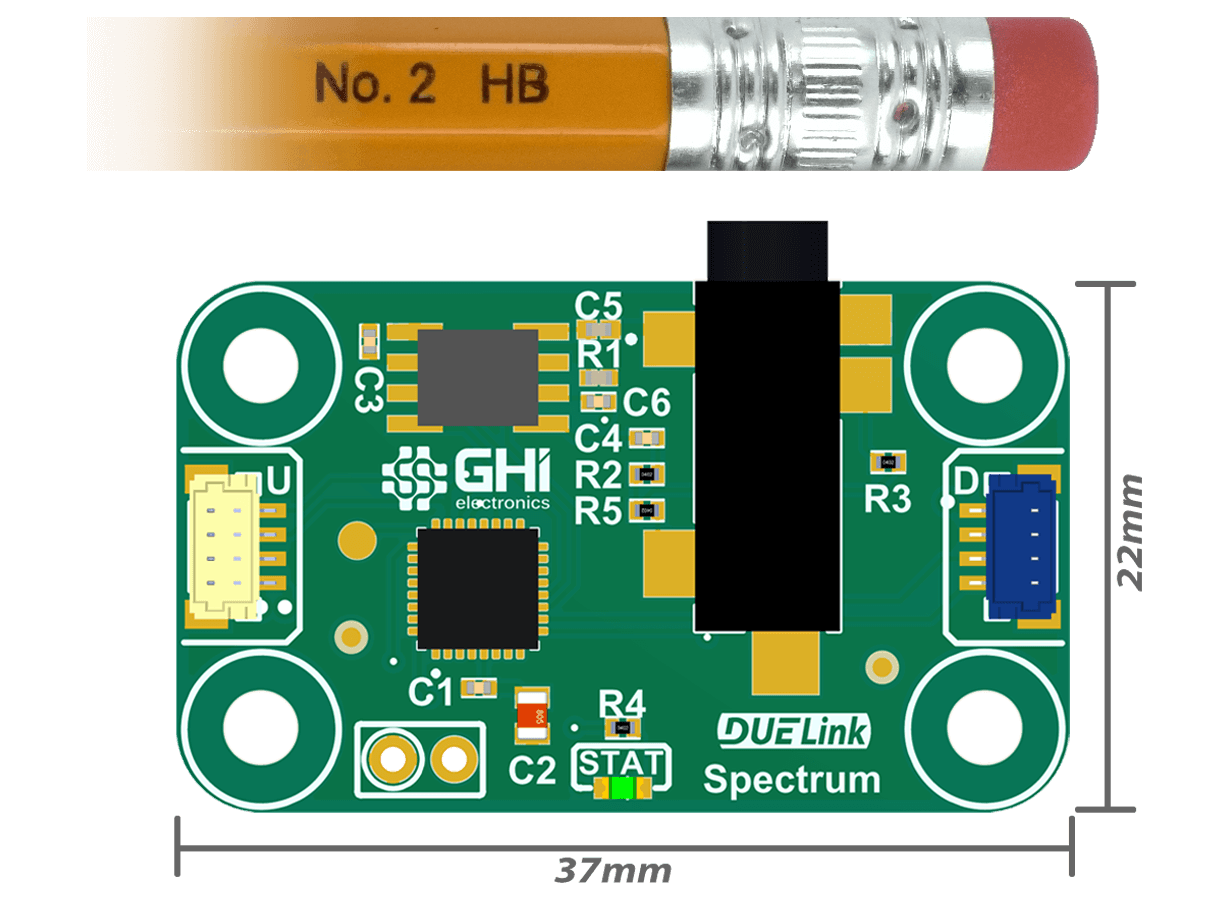

• 37x22mm overall dimension

Resources

📄Schematics
🔩3D STEP file

Ordering Info

ProductPart NumberPrice
DUELink Spectrum AnalyzerGDL-SOSPECTRUM-A$00.00
