DipSwitch

Dual In-line Package(DIP) switch module

---

Overview

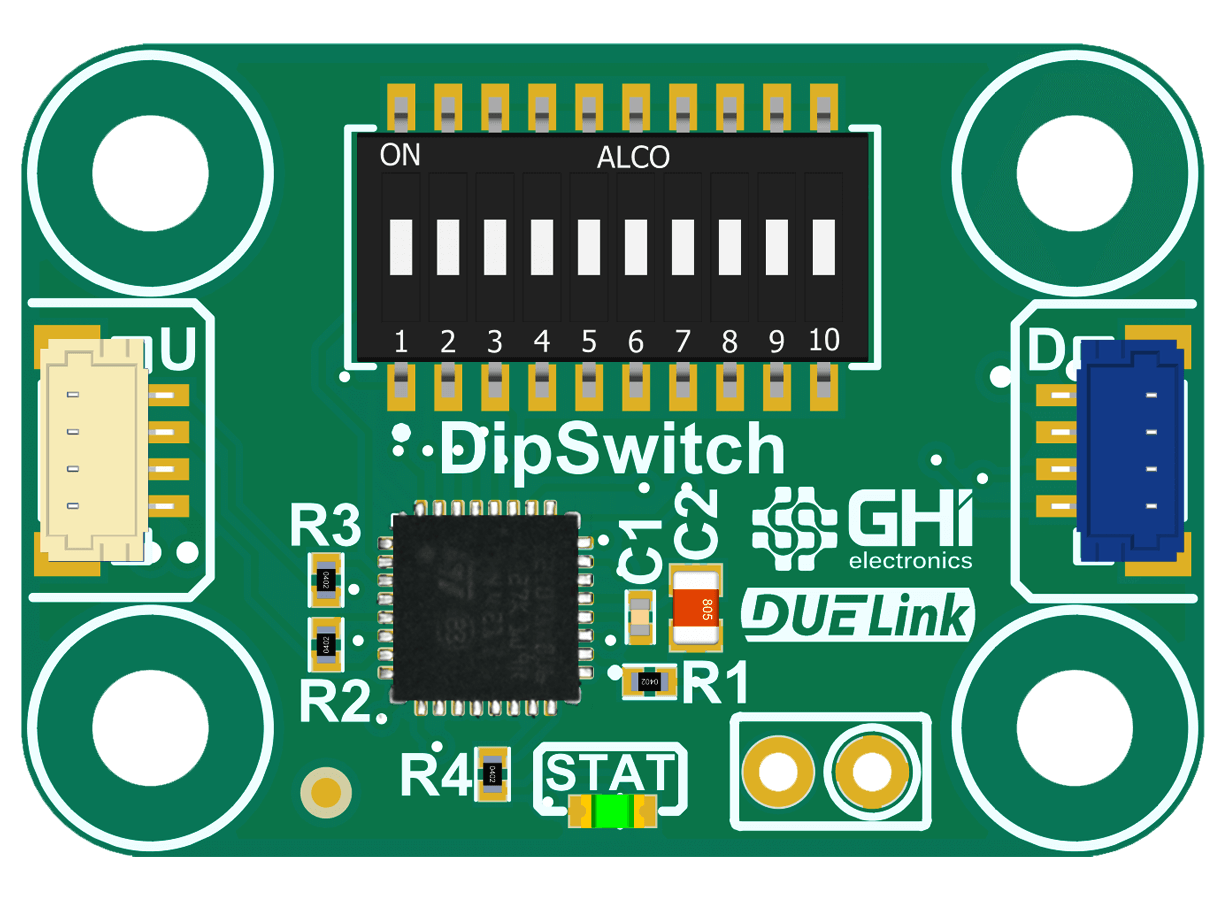

Dual In-line Package(DIP) Switch

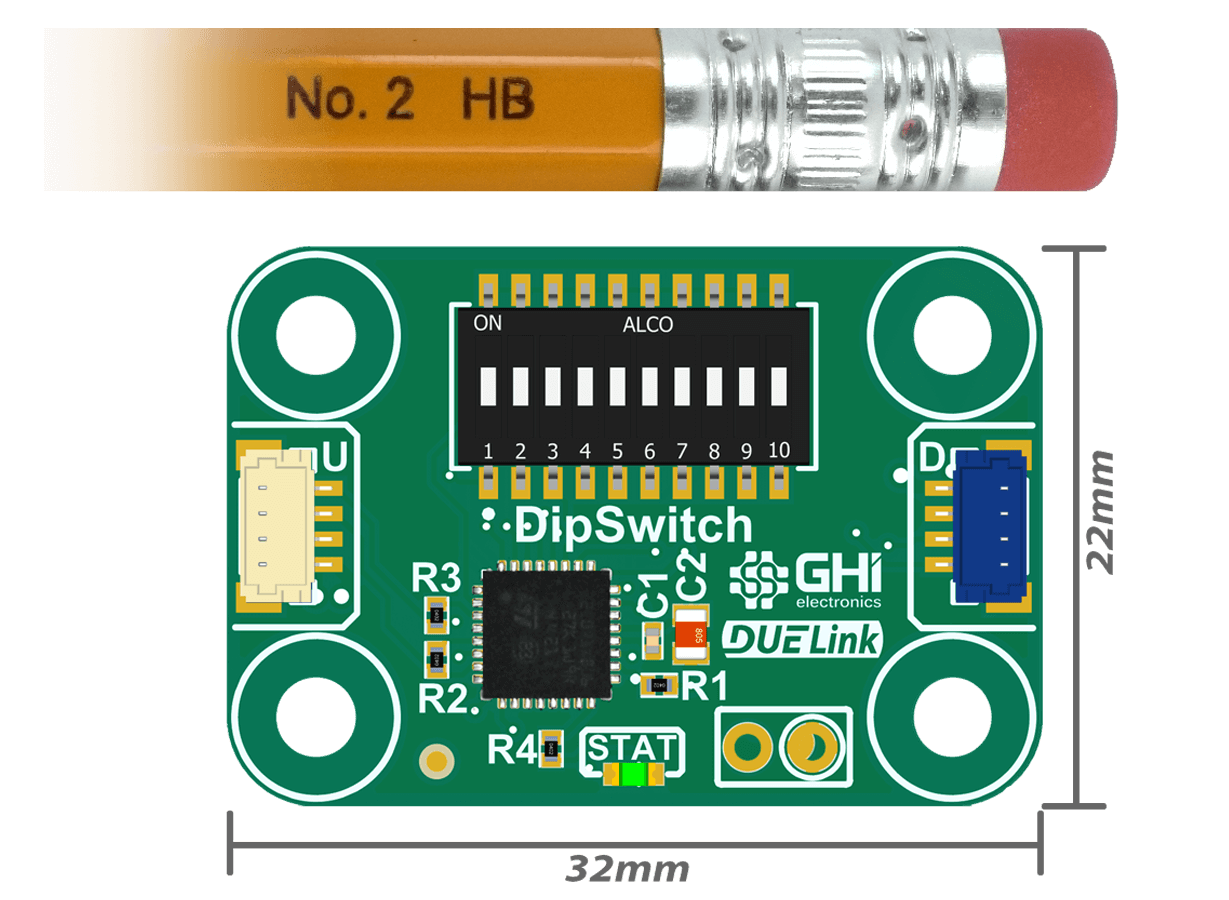

Key features • 10 switch selector • 32x22mm Overall Dimension

Resources 📄Schematics 🔩3D STEP file

Drivers

Function	Description
Read(index)	read value from switch index value: 0: Off, 1: On
DVer()	This driver version.

The Code!

Modules ship with this script preloaded. Use Console to reload or modify the drivers. Additionally, some languages, such as Python, include DUELink.Engine.Record() for recording scripts directly from the host.

DipSwitch Driver

loading...

See code on GitHub

Samples

Script

Use Console to modify the default driver by adding this sample.

Script Sample

loading...

See code on GitHub

Python

Python Sample

loading...

See code on GitHub

JavaScript

JavaScript Sample

loading...

See code on GitHub

Projects

Coming soon!

---

Ordering Info

Product	Part Number	Price
Dip Switch	GDL-HIDIPSWITCH-B	$00.00
