TFT N18

1.8" - 160x128 Color TFT LCD display

Overview
Drivers
Samples
Projects

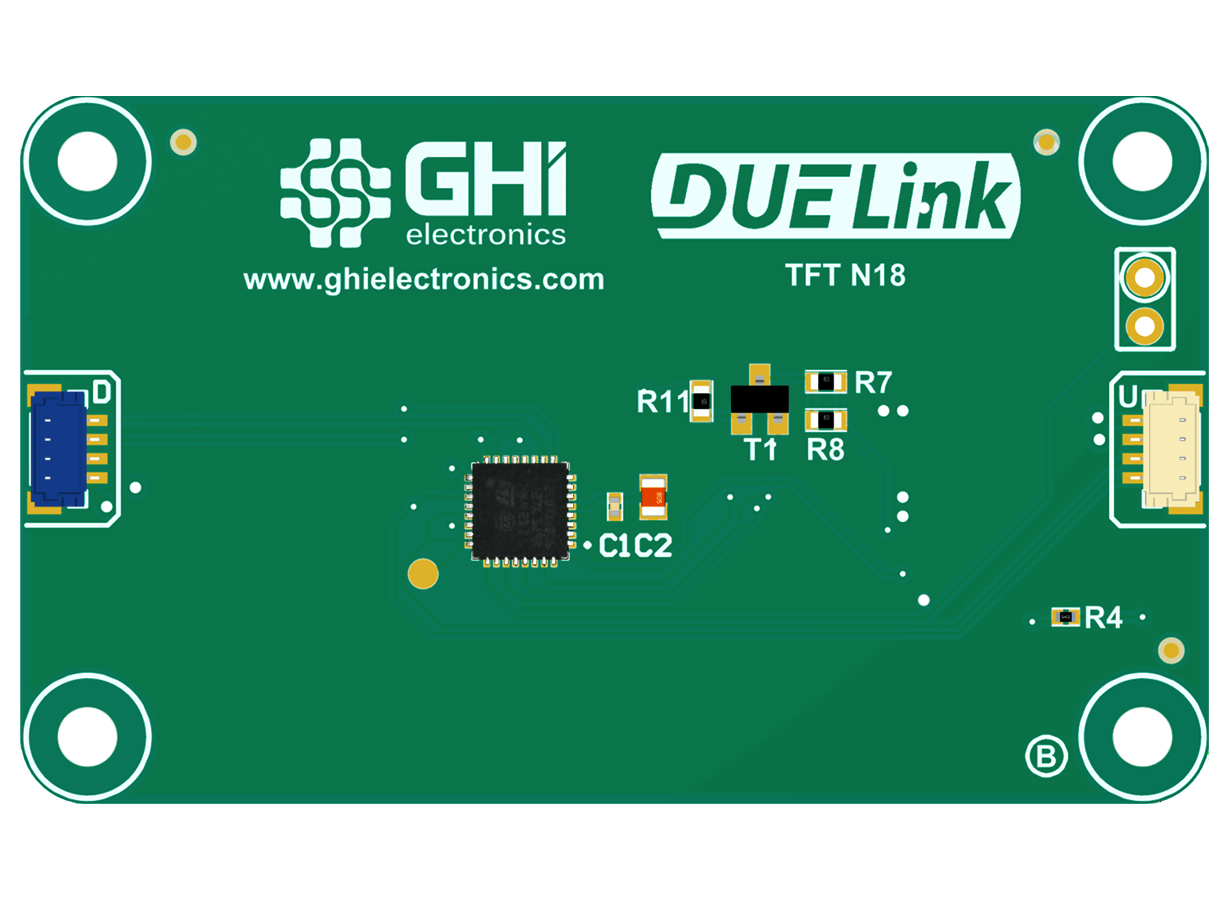

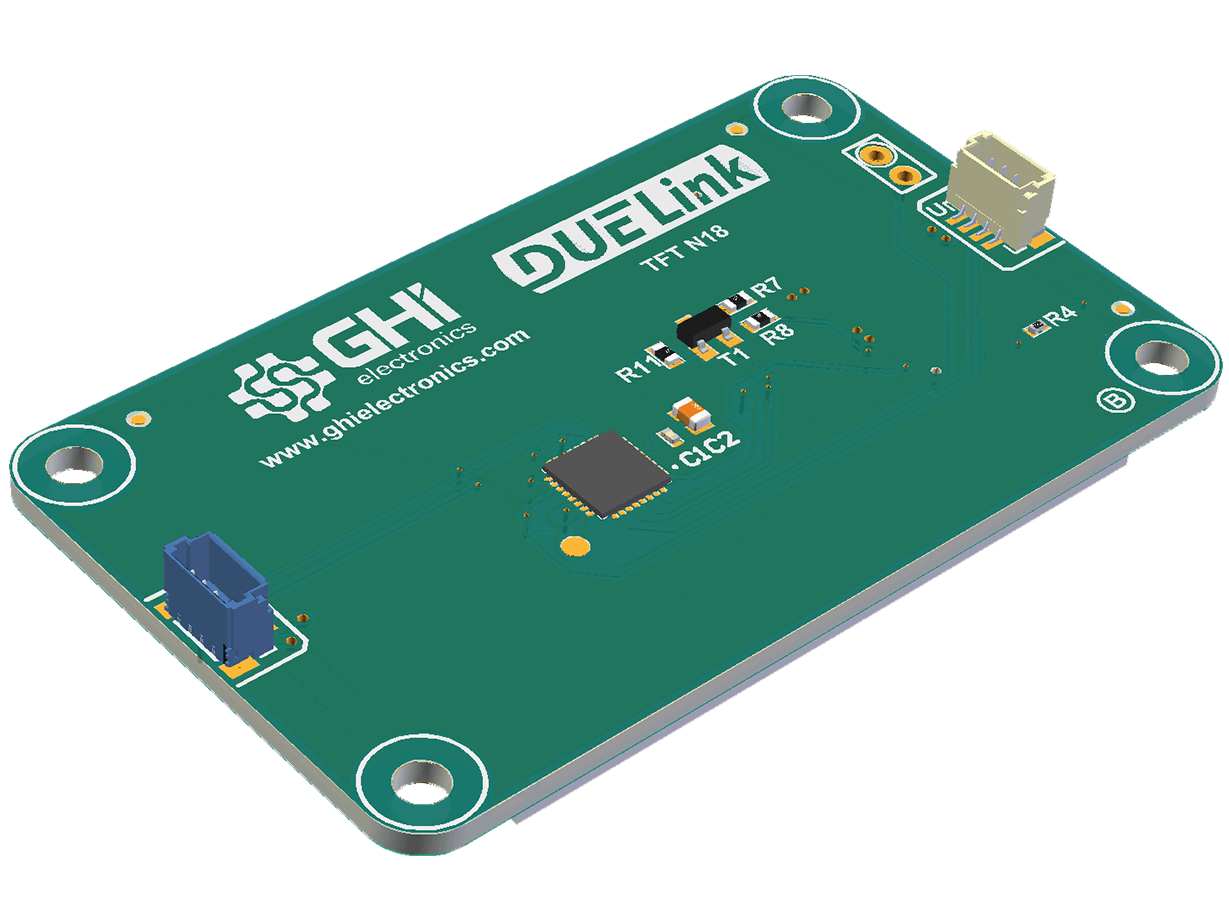

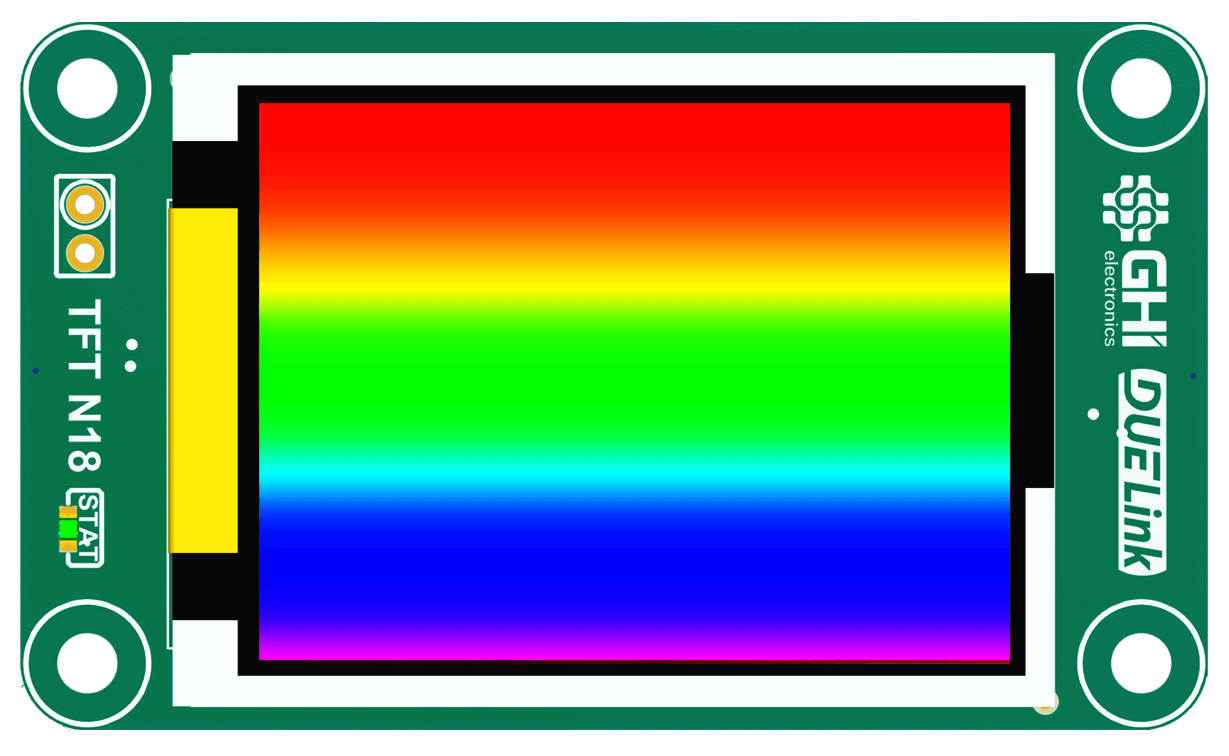

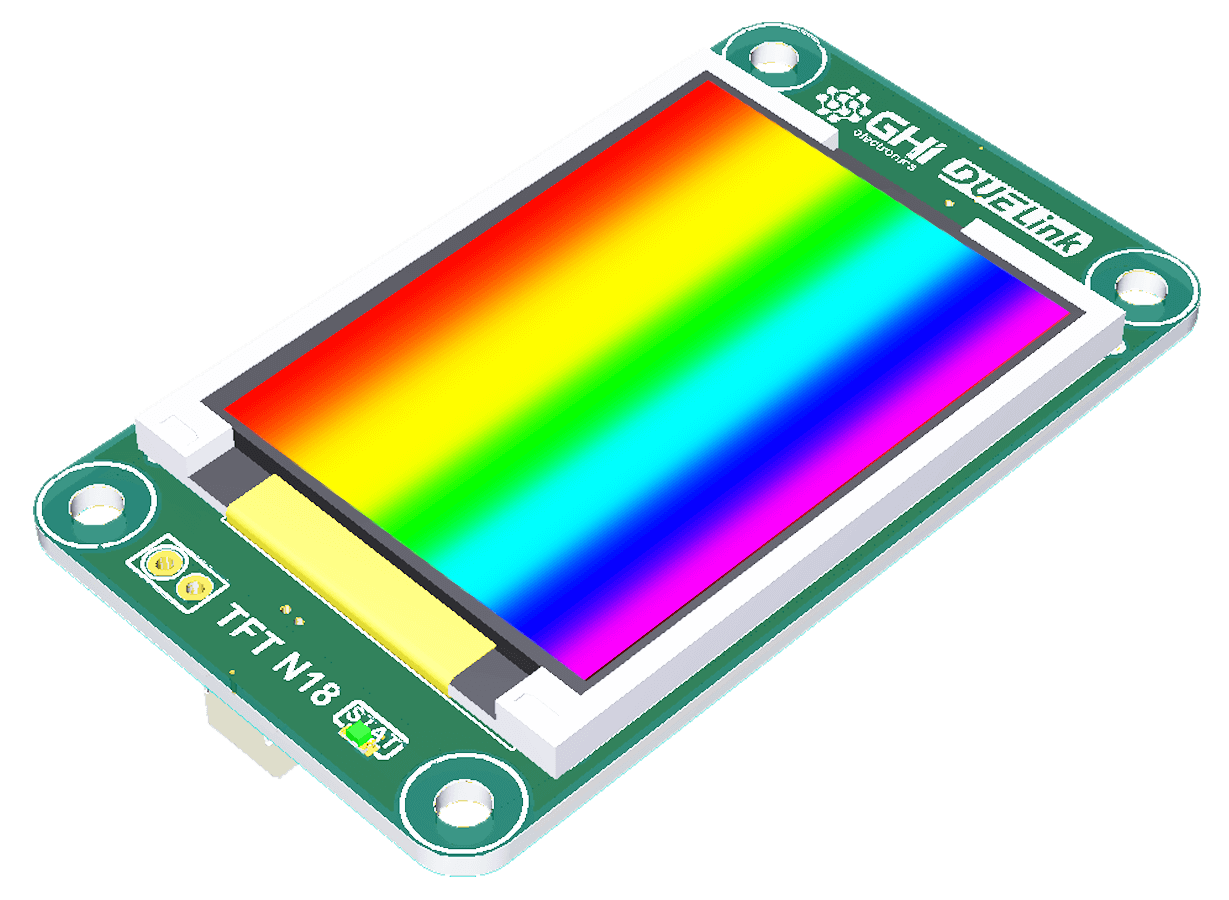

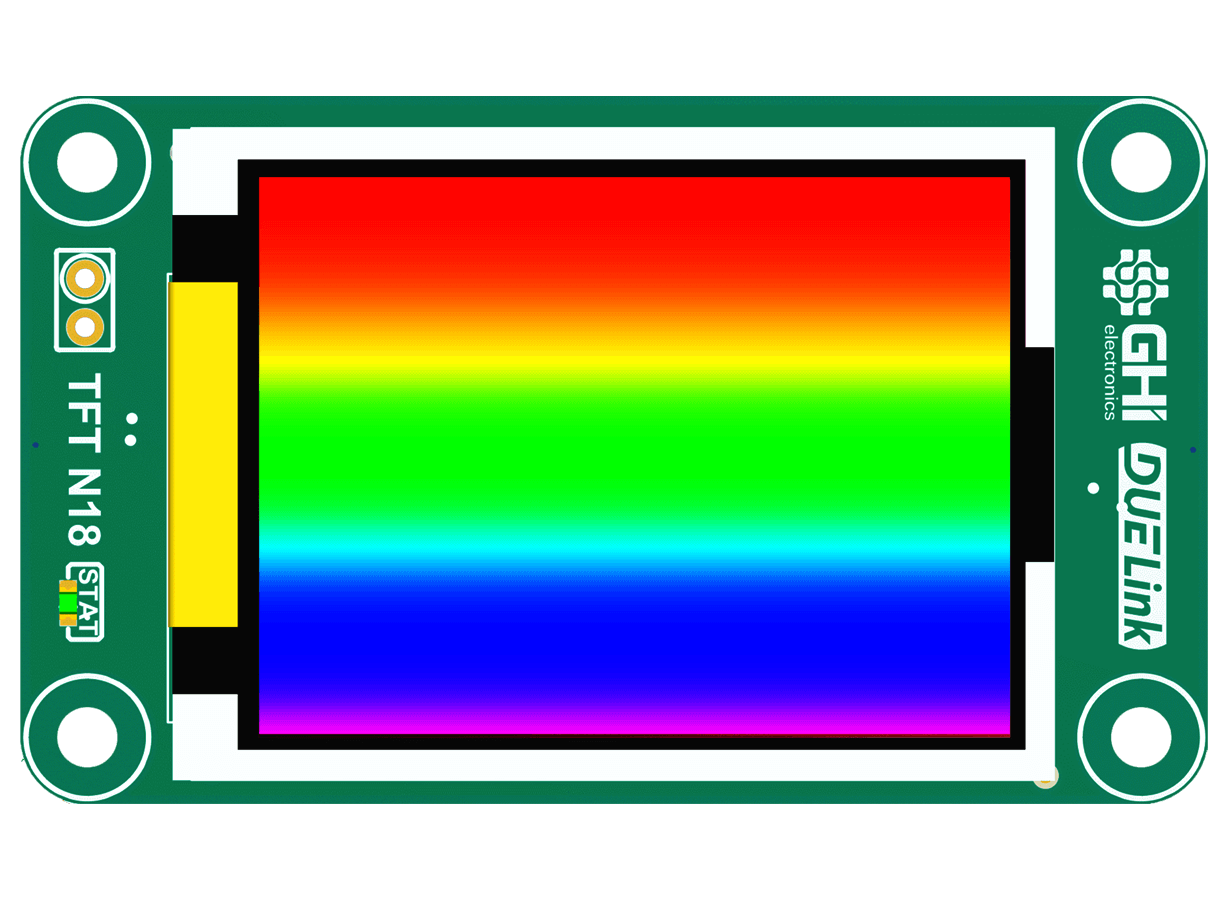

1.8" - 160x128 Color TFT LCD display

Key features

• 1.8" display
• 128x64

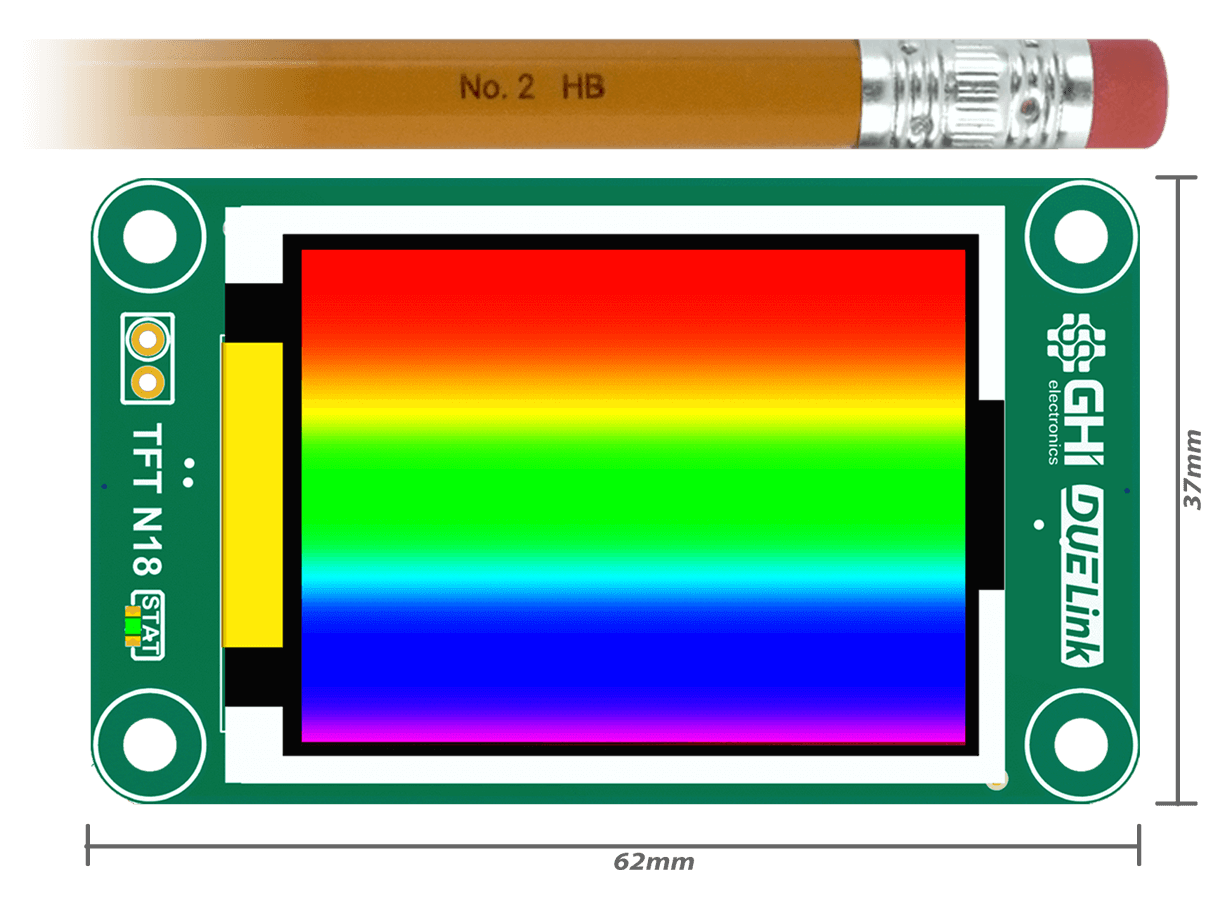

• 62x37mm Overall Dimension

Resources

📄Schematics
🔩3D STEP file

Function	Description
`Init()`	Initialize the display. Automatically called on power up.
`Mode(direct)`	Set the graphics mode to 1-direct, 0-buffered (default).
`GetW()`	Get display width: 64 in buffered, 128 in direct.
`GetH()`	Get display height: 80 in buffered, 160 in direct.
`IsColor()`	Returns 1.
`DVer()`	This driver version.

By default, the display is initialized in buffered mode.

tip

See Graphics for available drawing functions, such as Text() and Circle().

The Code!

Modules ship with this script preloaded. Use Console to reload or modify the drivers. Additionally, some languages, such as Python, include DUELink.Engine.Record() for recording scripts directly from the host.

##### Driver Code Starts Here ###
# 16 sel pin
# 17 reg sel pin

_m = 0 # 0: buffered, 1: direct mode

dim b1[2]

fn Init()
    Mode(0)# buffered
fend

fn DVer()
    return 0.1
fend

fn Mode(m)
    spicfg(0, 24000)
    _m=m

    If m = 0 # buffered
     gfxcfg(2, {16,17},64,80, 2)

    else # direct
     gfxcfg(2,{16,17},128,160, 0)
    end


    dwrite(16, 1)#deselect
    dwrite(9,0)#reset
    wait(10)
    dwrite(9,1)#reset
    wait(120)
    dwrite(8,1)# backlight
    Cmd(0x11,[])
    wait(120)

    Cmd(0xb1,[0x01,0x2C,0x2D])
    Cmd(0xb2,[0x01,0x2C,0x2D])
    Cmd(0xb3,[0x01,0x2C,0x2D,0x01,0x2C,0x2D])
    Cmd(0xb4,[0x07])

    Cmd(0xc0,[0xa2,0x02,0x84])
    Cmd(0xc1,[0xC5])
    Cmd(0xc2,[0x0a,0x00])
    Cmd(0xc3,[0x8a,0x2a])
    Cmd(0xc4,[0x8a,0xee])
    Cmd(0xc5,[0x0E])

    Cmd(0x36,[0xc0])

    Cmd(0xE0,[0x0f,0x1a,0xf,0x18,0x2f,0x28,0x20,0x22,0x1f,0x1b,0x23,0x37,0,7,2,0x10])
    Cmd(0xE1,[0xf,0x1b,0xf,0x17,0x33,0x2c,0x29,0x2e,0x30,0x30,0x39,0x3f,0,7,3,0x10])

    Cmd(0x2A,[0,0,0,0x7f])
    Cmd(0x2b,[0,0,0,0x9f])
    Cmd(0xf0,[1])
    Cmd(0xf6,[0])

    Cmd(0x3A,[0x05])
    Cmd(0x29,[])
fend

fn Cmd(c, b1)
    dwrite(16, 0)#select
    dwrite(17, 0)#cmd
    SpiWr(c)
    dwrite(17, 1)#data
    for i in range(Len(b1))
        SpiWr(b1[i])
    next
    dwrite(16, 1)#deselect
fend

fn IsColor()
    return 1
fend

fn GetH()
    if _m = 0
        return 80
    else
        return 160
    end
fend

fn GetW()
    if _m = 0
        return 64
    else
        return 128
    end
fend

Init()

##### User Code Starts Here #####

Script
Python
JavaScript

Use Console to modify the default driver by adding this sample.

# Append this code at the bottom of the script, right after the driver.
# You MUST keep the driver code!!

Clear(0x0000FF) # Clear to blue color

Text("Hello", 0x00FF00, 10, 2)
Circle(0xff0000,10, 10,10)
Fill(0xffFFFF,10, 20,20, 10)
Rect(0xffFFFF,10, 40,20, 10)
Line(0xffFFFF,10, 60,40, 60)

Show()

from DUELink.DUELinkController import DUELinkController
import time
availablePort = DUELinkController.GetConnectionPort()
duelink = DUELinkController(availablePort)

//code

Ordering Info

Description	Part Number	Price
1.8" 160x128 Color TFT LCD display	GDL-DTFTN18-B	$00.00
