Engineers

DUELink serves electrical and embedded engineering in multiple ways, from initial prototyping to post production expandability options.

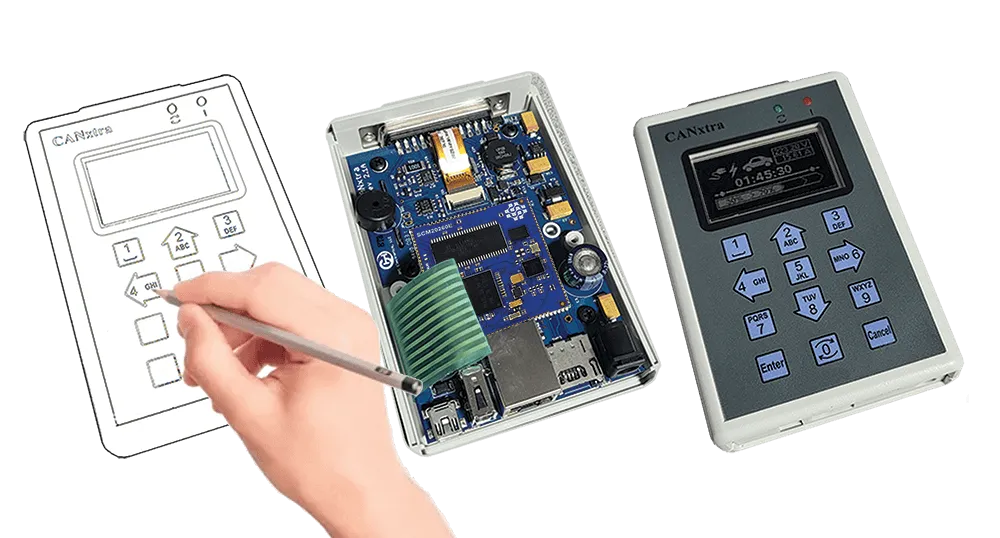

Commercial Product

Rapid Prototyping​

Build prototypes and proof of concepts in minutes vs days, at an extremely low-cost. Let's say you have a quick need for a device that connect to a vehicle with these requirements:

  1. Power from a car battery.
  2. Capture CAN bus messages.
  3. Read current position from GPS.
  4. Record a log on a USB memory Stick.
  5. Show information on a color display.

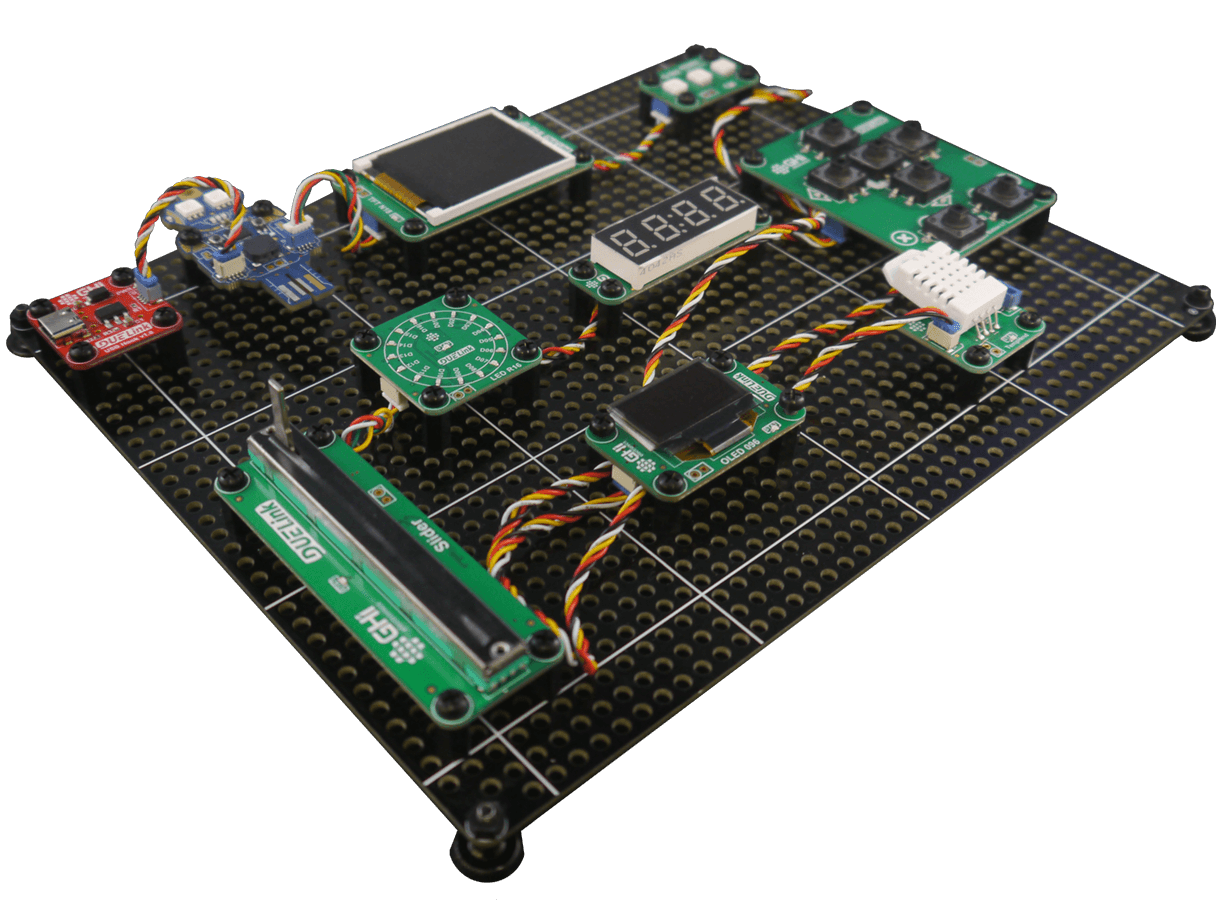

Put the soldering iron aside and grab a Holey Board instead! Here is your project done in a couple of hours!

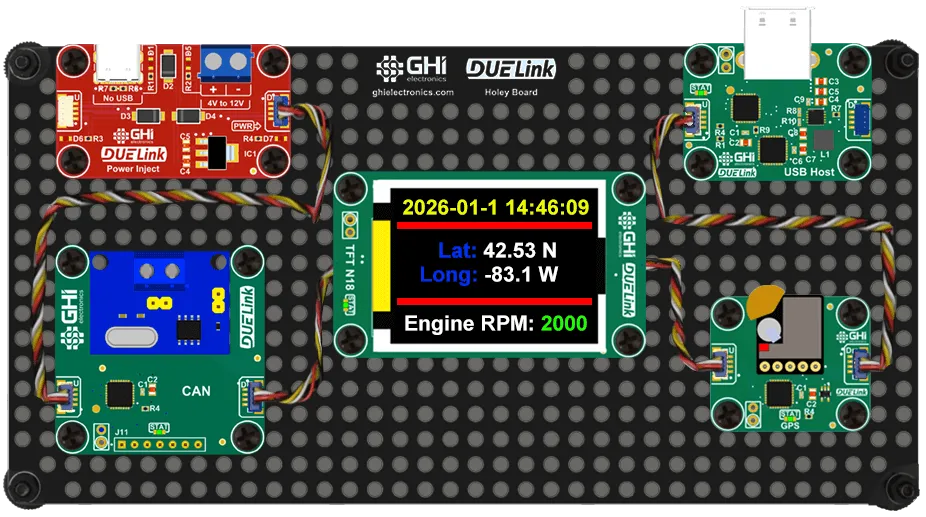

Vehicle project

On the software front, each module has a mini-computer with a built in engine! Simple ASCII human-readable commands can show graphics on the display and record files on a USB memory stick! We even provide libraries to support the impressive Standard Library using almost any coding language.

Expandability​

By adding a tiny JST connector, you will magically bring a whole level of expandability to your projects. Just imagine how versatile designs will be when you are able to tether any DUELink Catalog module to your circuit.

downlink

This one connector allows you to tether to one or to a chain of modules.

dueduino link

Chaining modules is possible using Daisylink.

uplink downlink

The internal engine handles this Daisylink. You only need to wire I2C or UART to a compatible JST connector.

Advanced Modules​

DUELink ecosystem includes some complex modules that can advance your design with relatively minimal work, turning weeks of frustration into hours of progress!

All modules, including the onces listed below, are controlled using ASCII commands. We even provide libraries to handle these ASCII commands for almost all coding languages, including Python, JavaScript, .NET.

Back

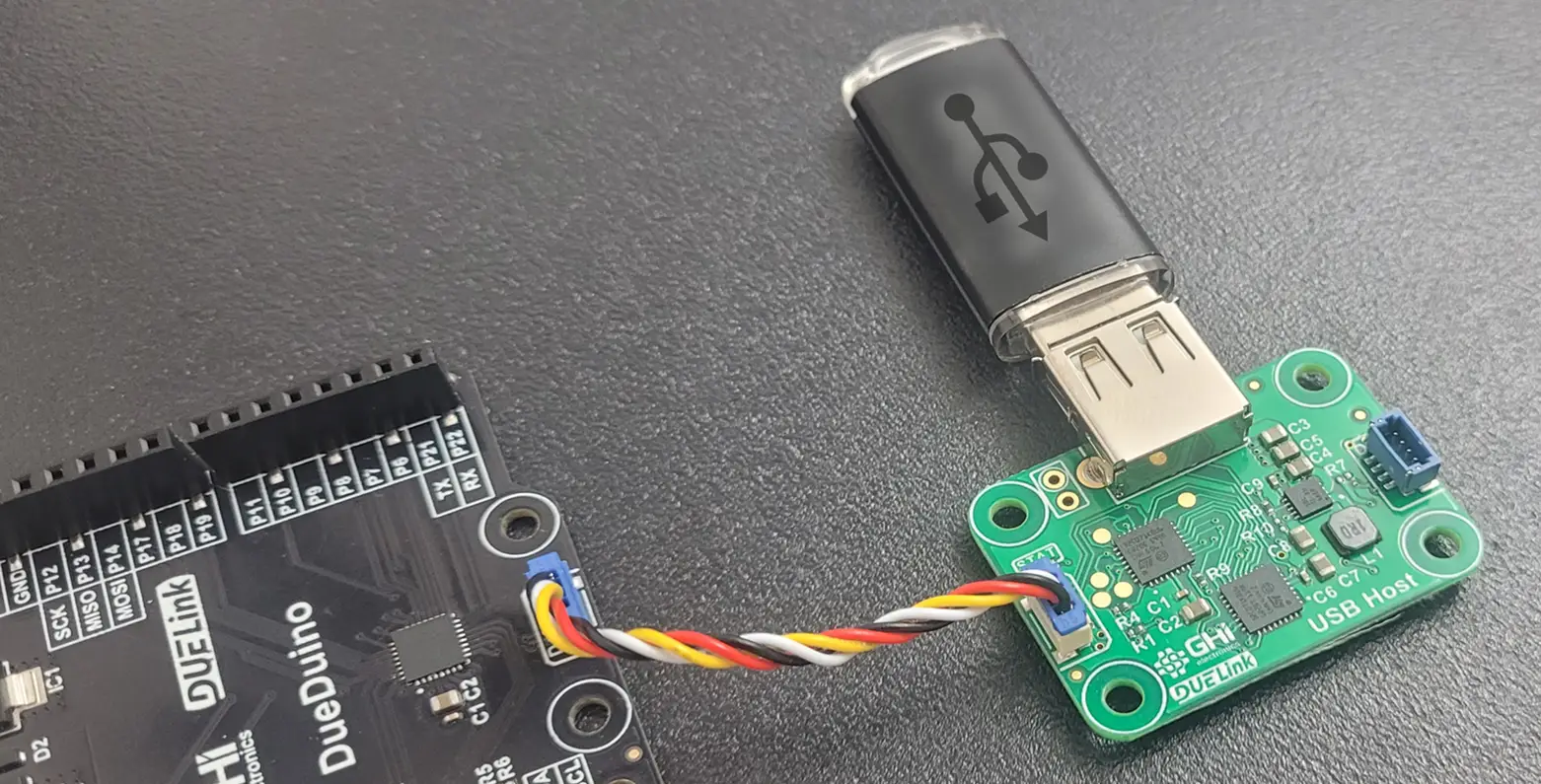

The module already includes all FAT file system and USB Host software libraries internally. You simply send a file command, and the module will do the rest for you. There are also SD and Micro SD module options as well.

Size

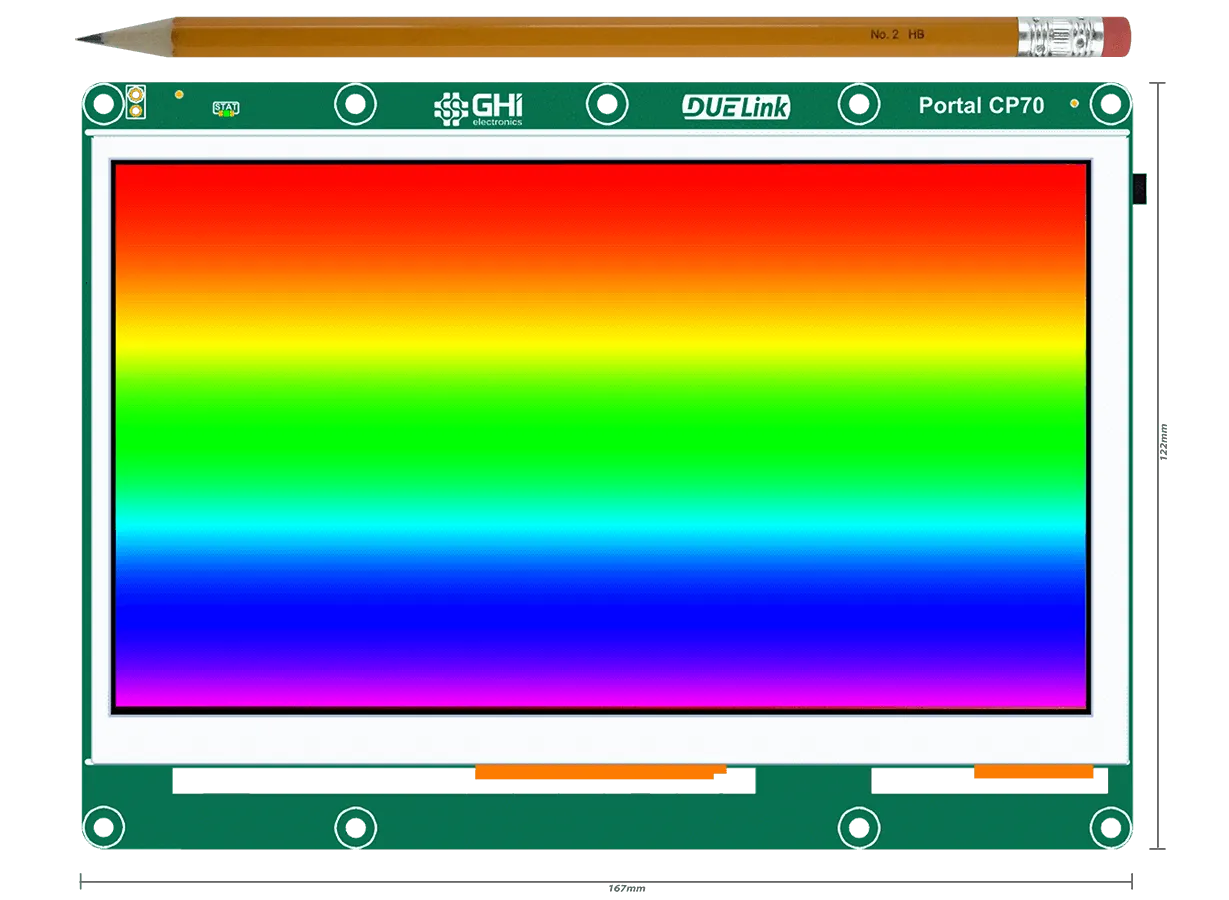

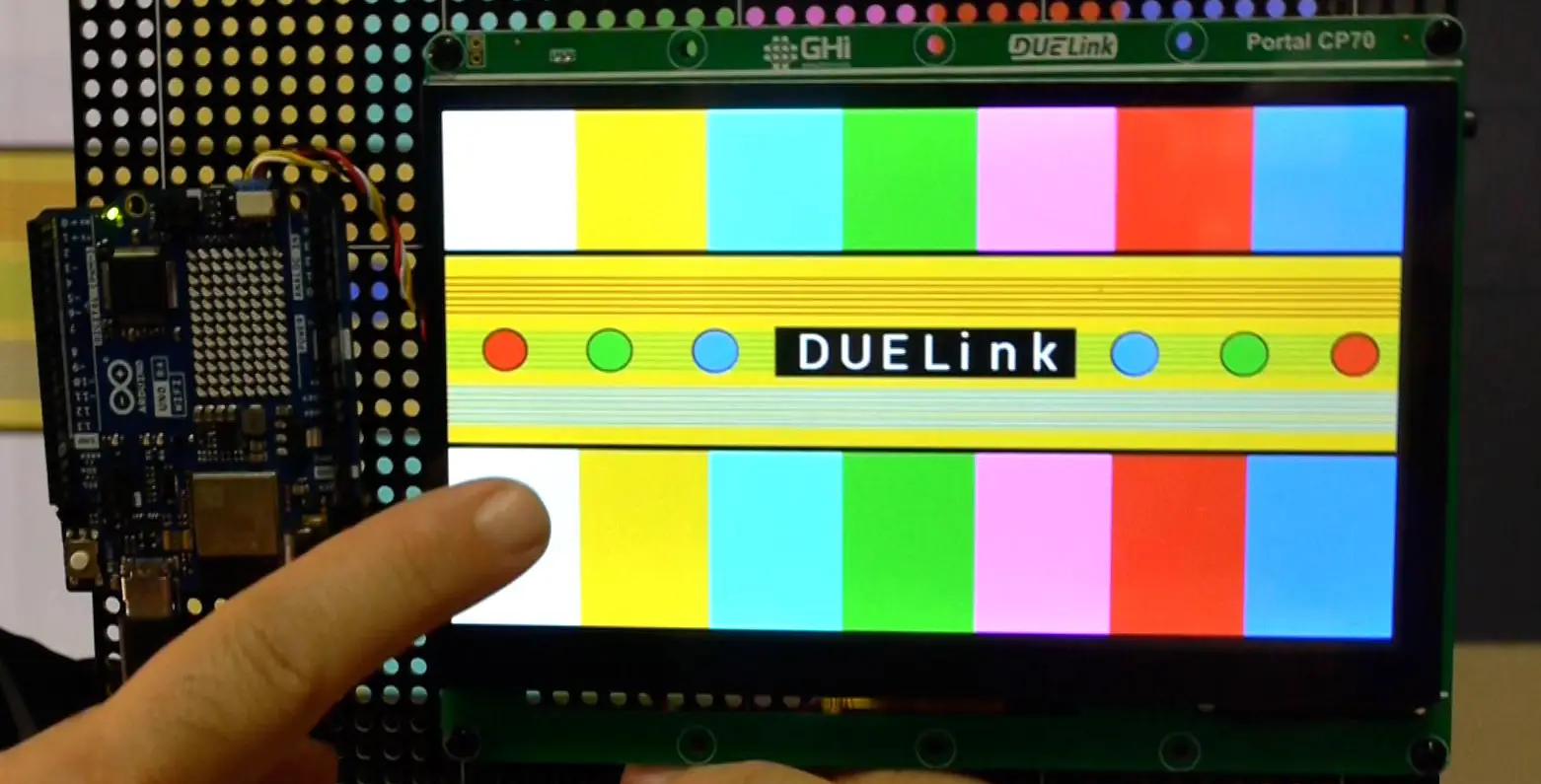

This full color 800x600 7" display has advanced Bridgetek graphics coprocessor to handle image decoding,font rendering, and shape drawing. It also includes a capacitive touch screen.

Size

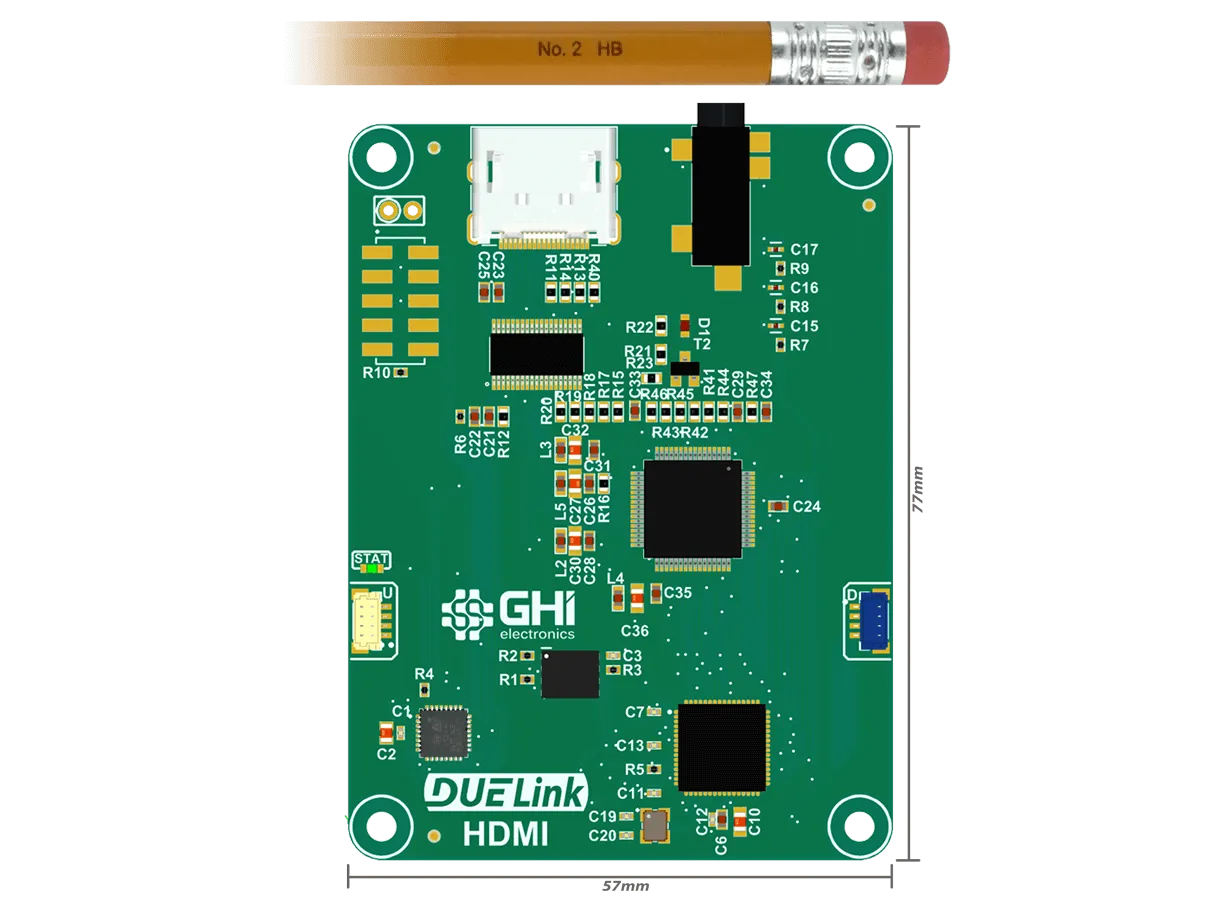

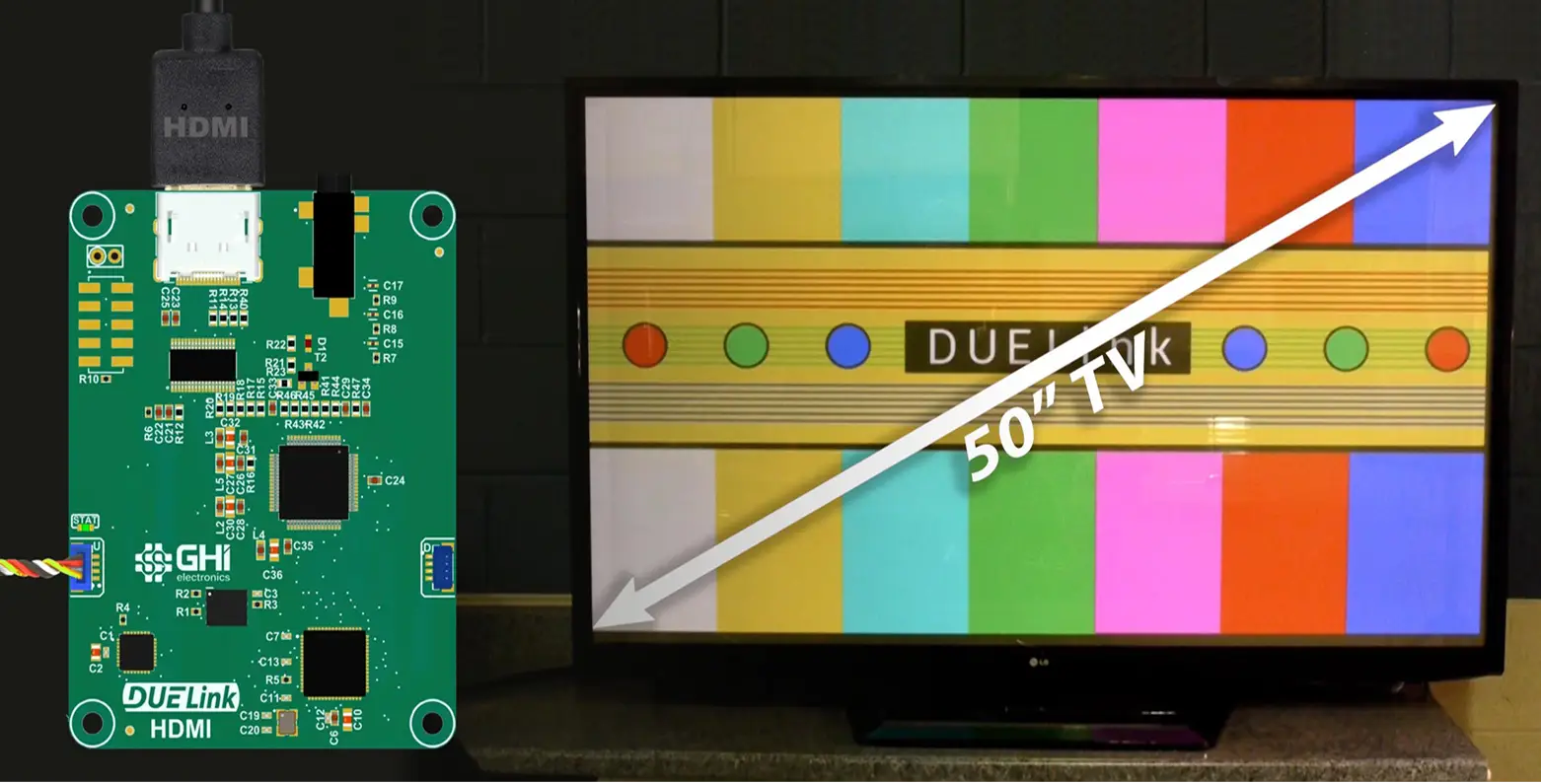

The same tine JST connector brings HDMI to your design! The onboard Bridgetek graphics coprocessor renders high-definition graphics. Yes, any design can have a 50" monitor now!

Back

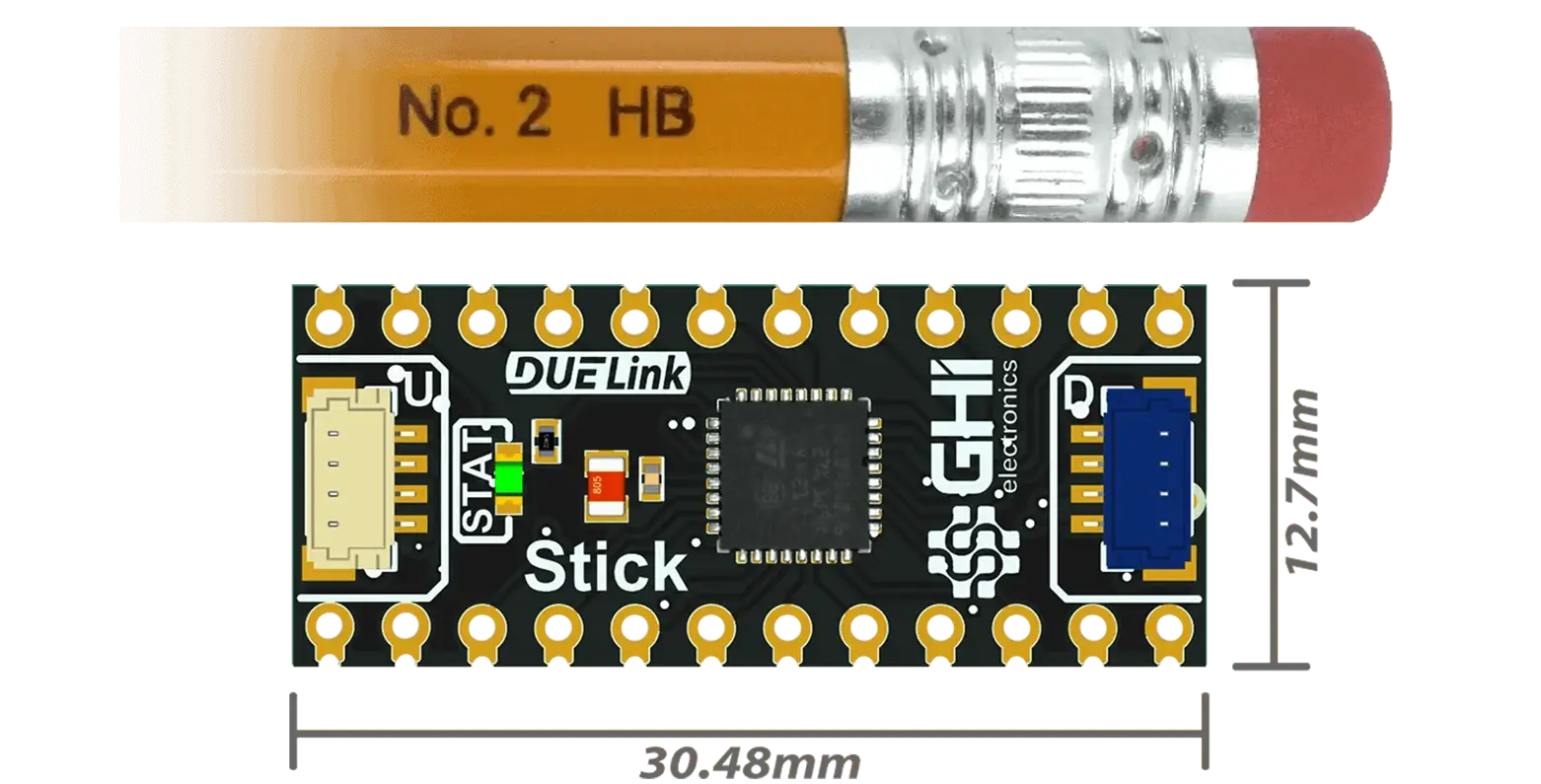

Want something else? Make your own module using this very small 13x13mm "stick"! It includes Uplink and Downlink connectors and all the IOs you need. Solder it directly on your board or use pin headers to plug into a breadboard.

Standalone​

You know by now that you can tether DUELink modules to any hardware and use almost any coding language! But, since every DUELink module is a mini-computer, it is also possible to program these modules to run standalone. This can be done using a bare-bone C++ project.

c++

Or, you can also use the Arduino ecosystem for en easier path.

arduino.

Visit the standalone page to learn more.

Standard Sizing​

The standard hole sizes and placement pitch allow for easier enclosure designs. See Specifications for more details.

Hole Specs

Move your prototypes into a 3D printed design a laser-cut enclosure.

Laser Cut Enclosure

See the DUELink Specs for details and evolve into making your own Third-Party Modules.

We are Here to Support!​

With DUELink, you will receive support from a USA-based company that has been in the commercial engineering and manufacturing of Hardware and Software for over 20 years!

GHI Electronics Logo

Do you need help with the design? Are you ready for production? Let us know how we can support.

USA Manufacturing

There is a reason why we say: GHI Electronics is where Hardware meets Software!
