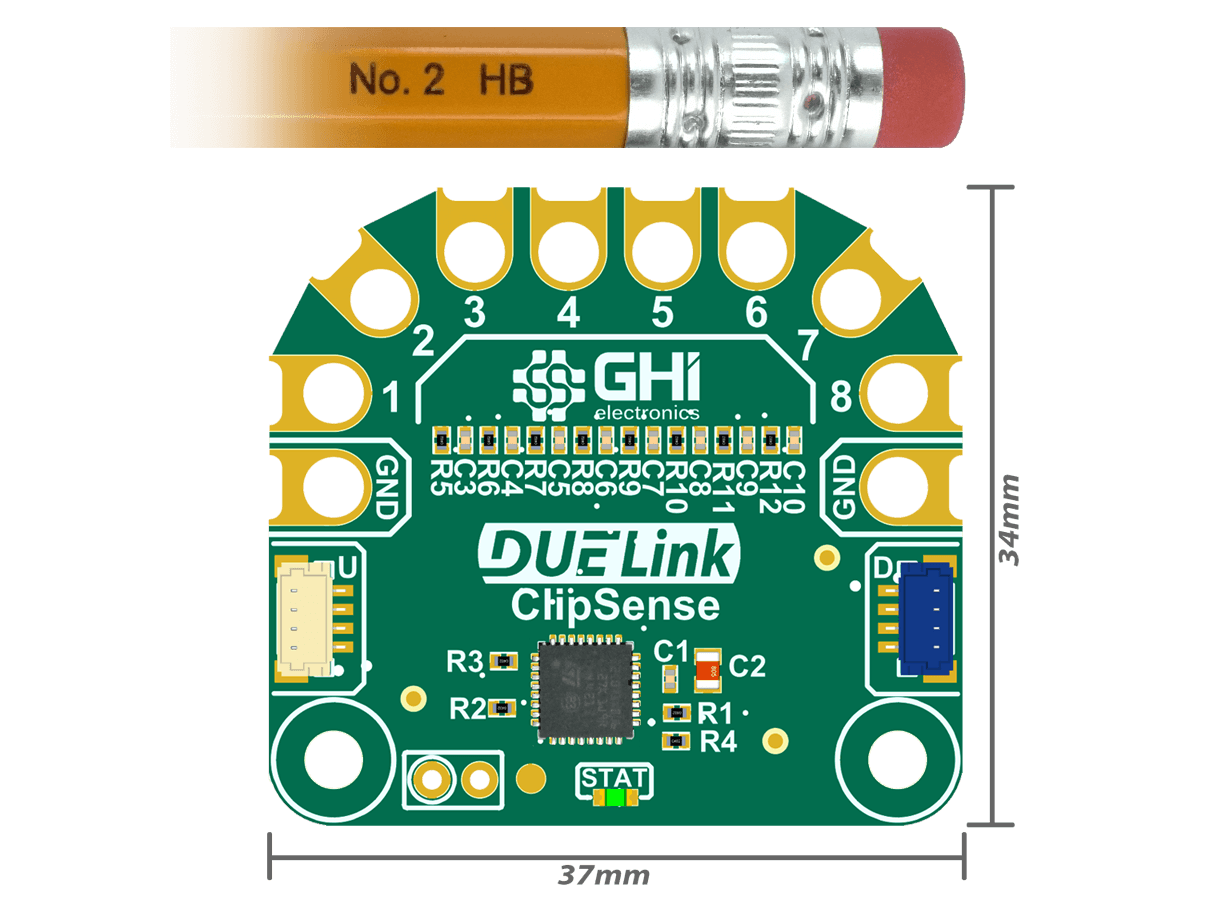

Size

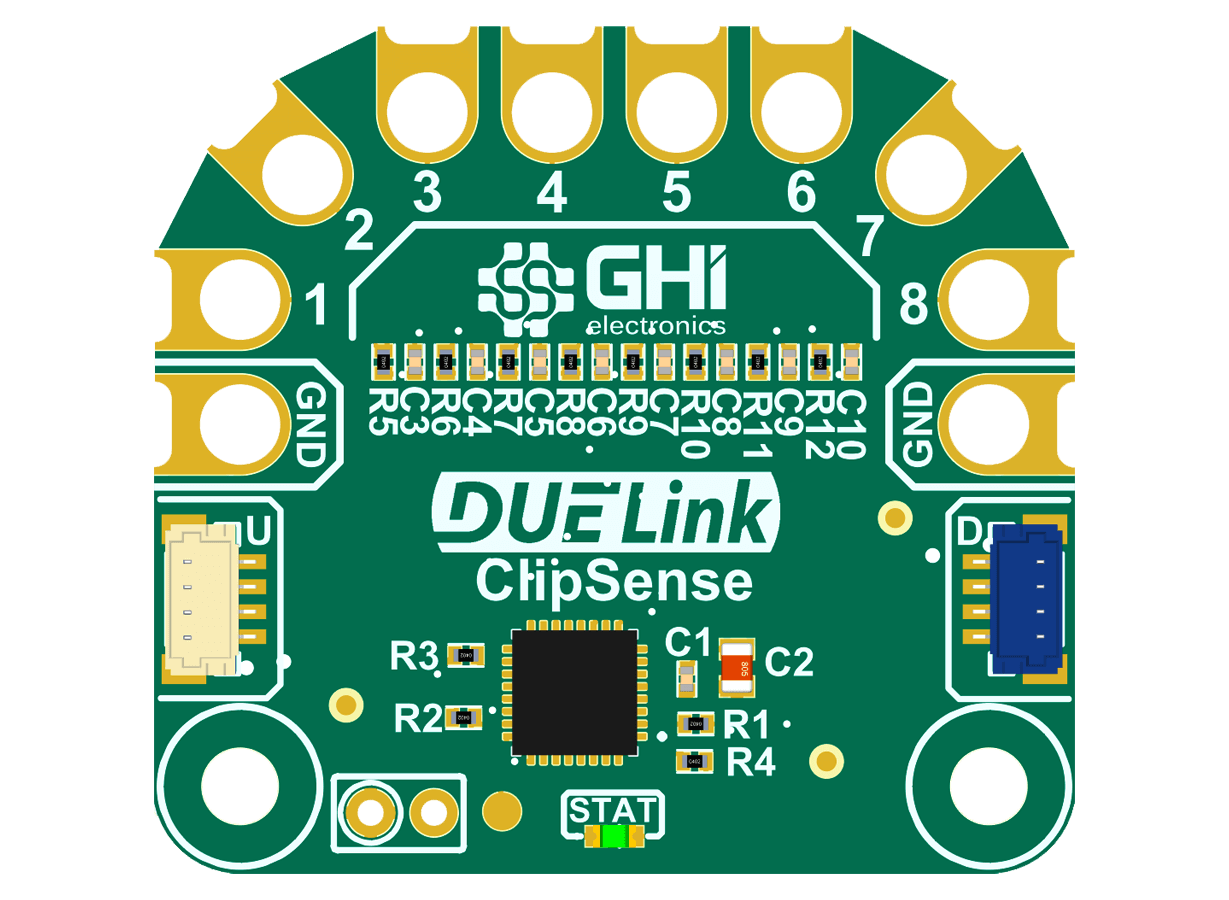

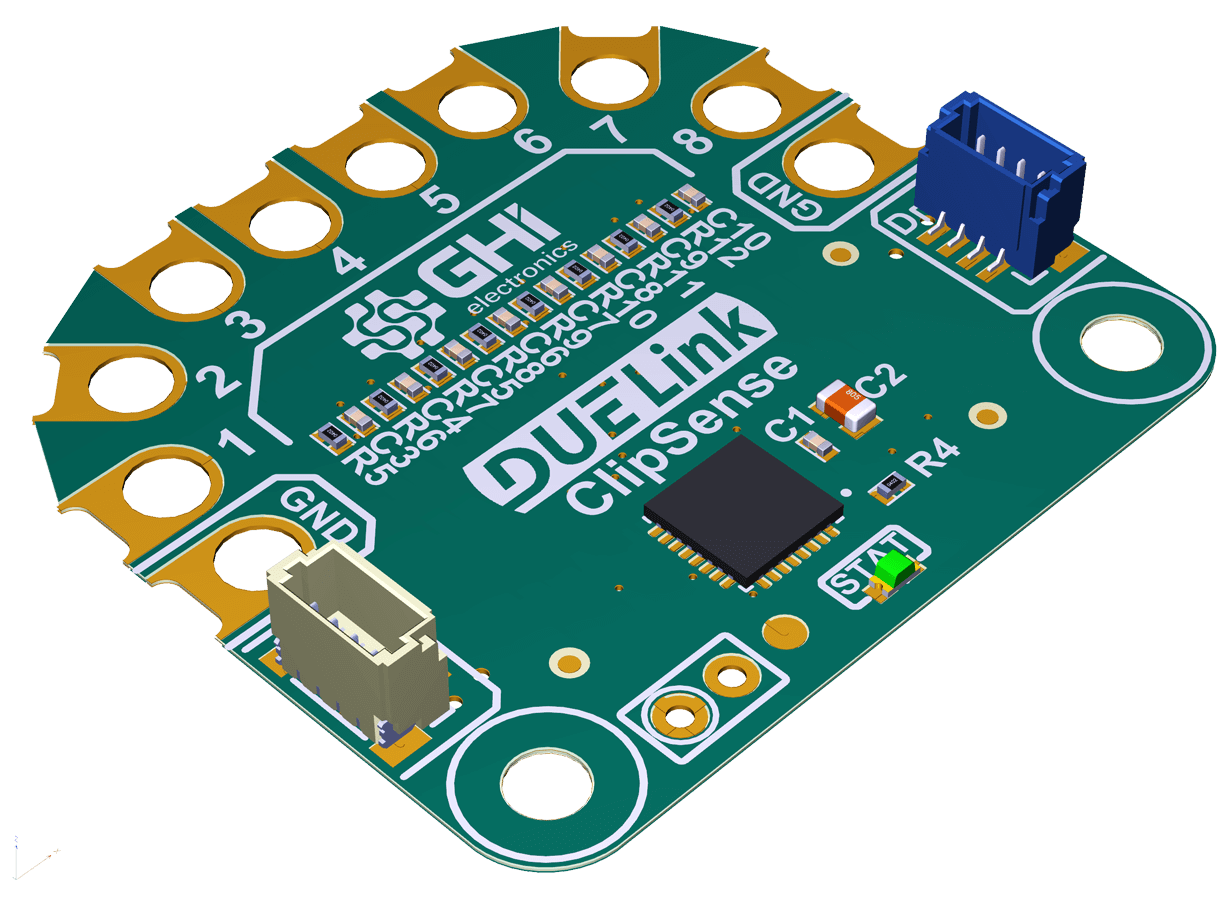

Front

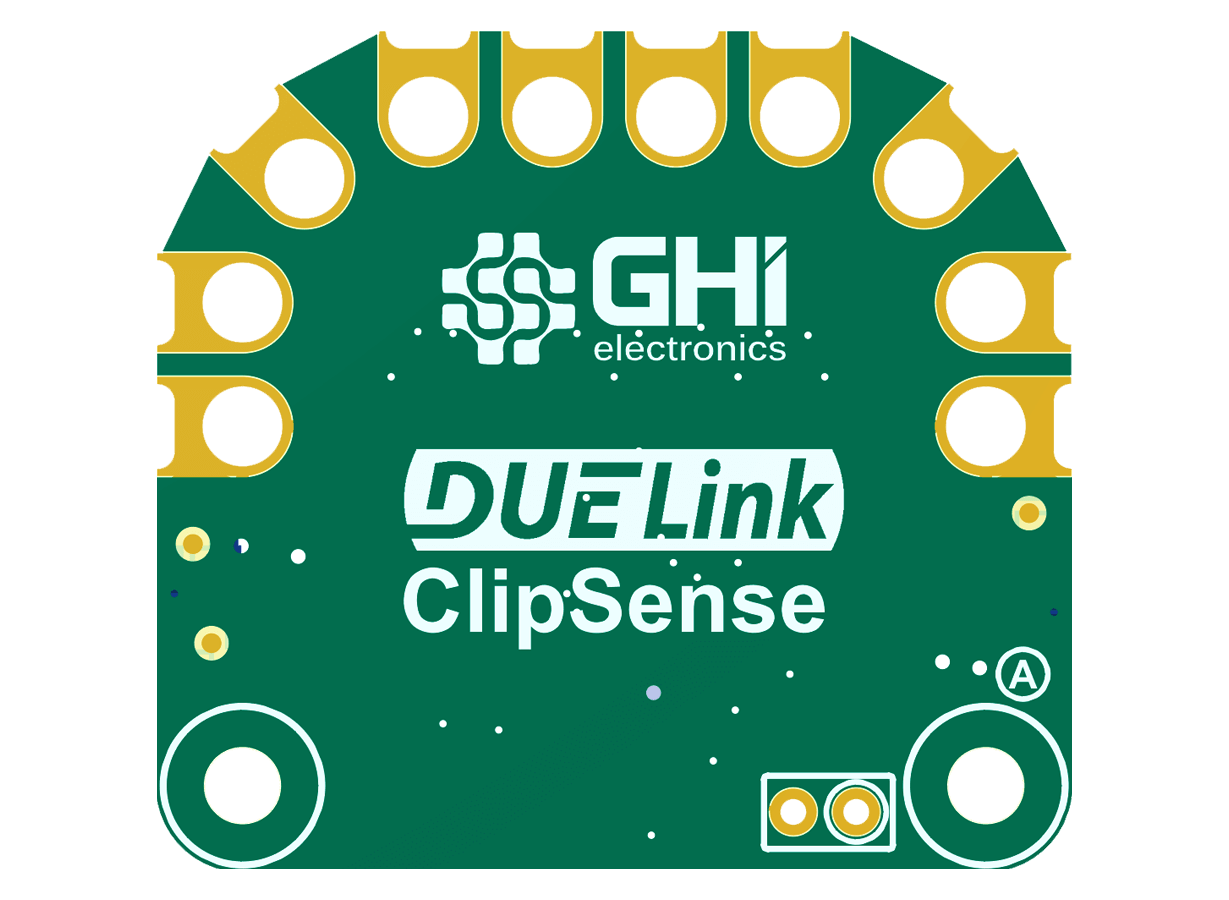

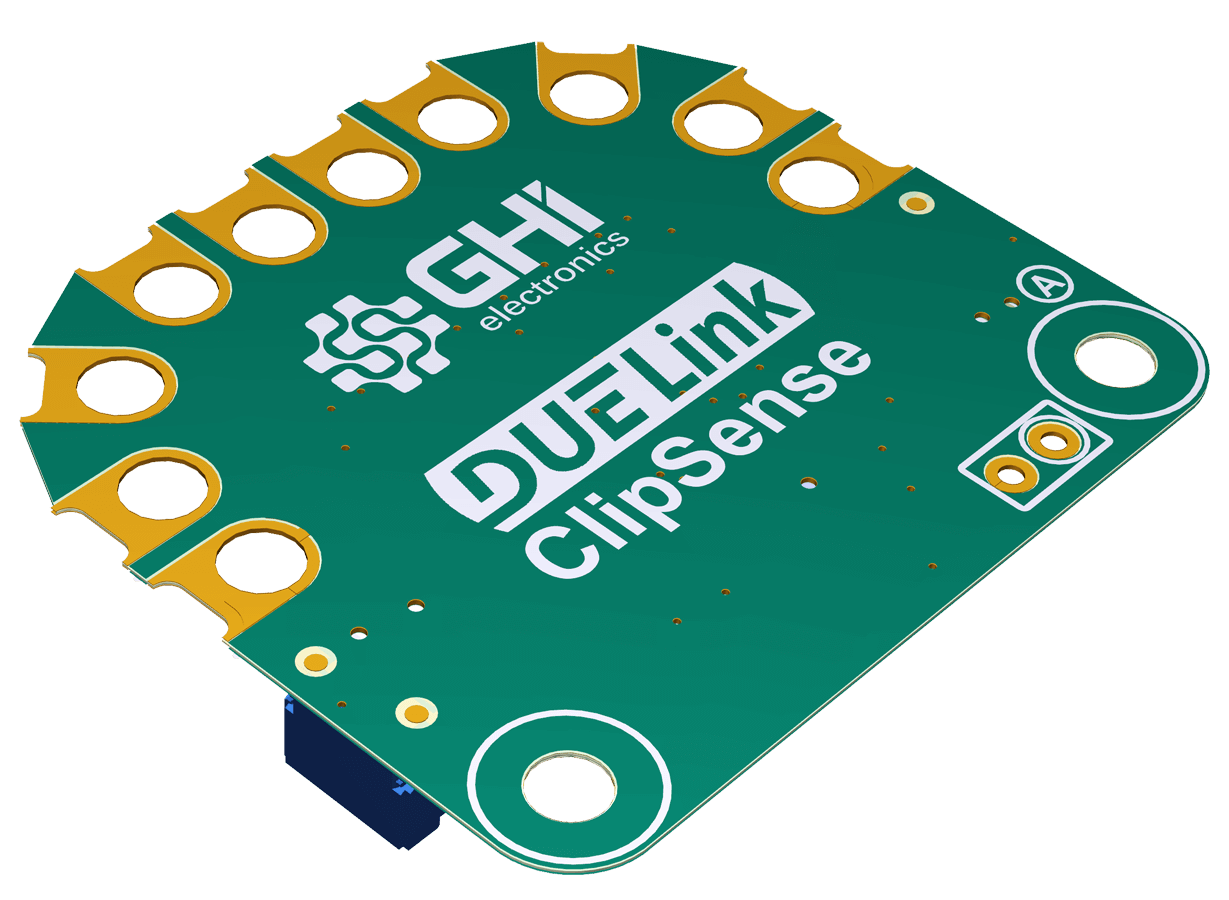

Back

Clip-friendly IOs with Capacitive Sensing

With these alligator-clip-friendly pads, users can easily connect(clip) anything that requires digital inputs/outputs. These pads also support analog and PWM (analog out) functionality.

The pads also support capacitive sensing to detect touch from a connected object.

Key features

• 8x Digital GPIO
• 8x Analog inputs
• 8x Digital outputs
• 8x Capacitive touch
• 37x34mm overall dimension

Resources

📄Schematics
🔩3D STEP file

Ordering Info

ProductPart NumberPrice
DUELink ClipSense SensorGDL-SECLIPSENSE-A$00.00
