LED S404
0.40" 4-Digit 7-Segment Display
- Overview
- Commands
- Samples
- On-Module Code

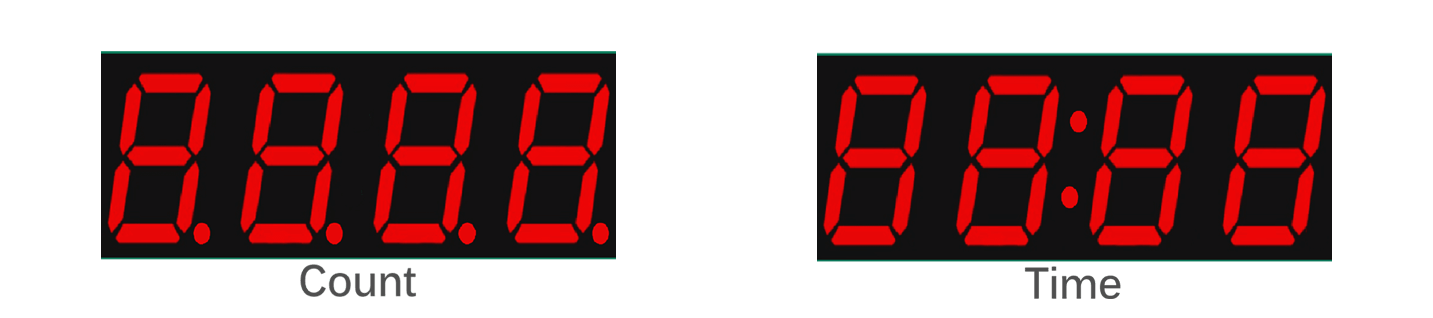

A 4-digit 7-segment display at 0.40" digit height — available as a counter with decimal point or a timer with colon between the middle digits, in red or green. Drive it with simple text commands over any supported interface; segment timing and digit multiplexing are handled on the module.
Common uses: countdown timers, score displays, sports clocks, lab instrument readouts, retro digital-clock builds where digits need to read from across a room.
For smaller digits, see LED S284 (0.28"). For larger, see LED S564 (0.56").
Key features • 4 Digit 7 segment LEDs | Resources 📄 Schematics PID: 0x050008 |
Modules ship without cables to reduce waste. Some specialty boards include a USB cable; for the rest, see Cables to add cables to your order.
Commands this module accepts. See Samples for runnable code in popular host languages.
| Function | Description |
|---|---|
Init() | Initialize the module. Automatically called on power up. |
Digit(n) | Draw n number to LEDs. |
Seg7(i, s) | Draw a single s digit (0 to 9) on i digit. |
Dot(i, v) | Draw a dot at i index with v value (0 off 1 on) on count-type LED. |
Colon(n) | Show colon on time-type LED. |
DVer() | This driver version. |
